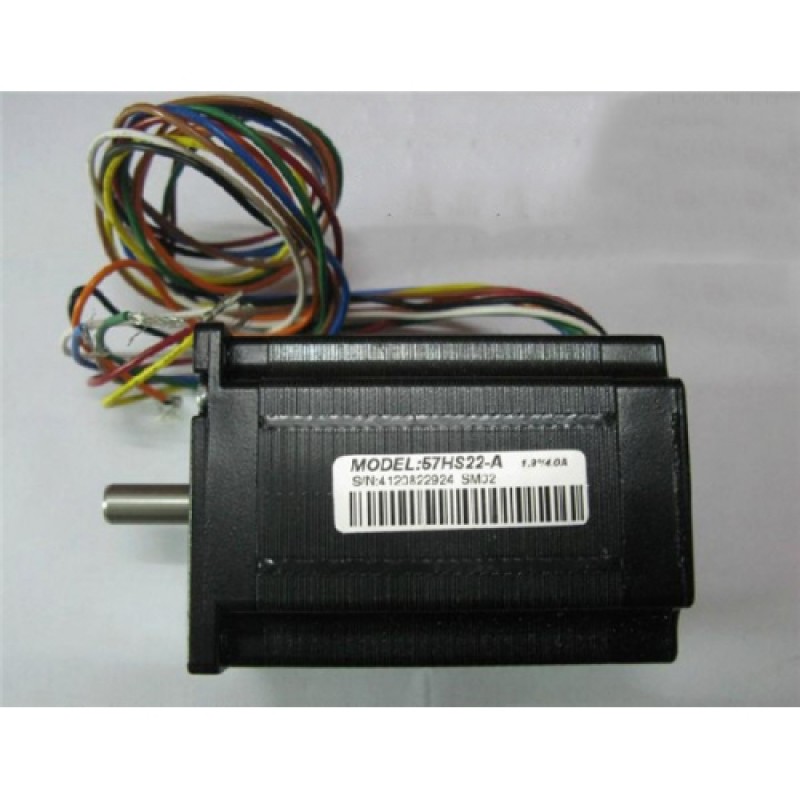

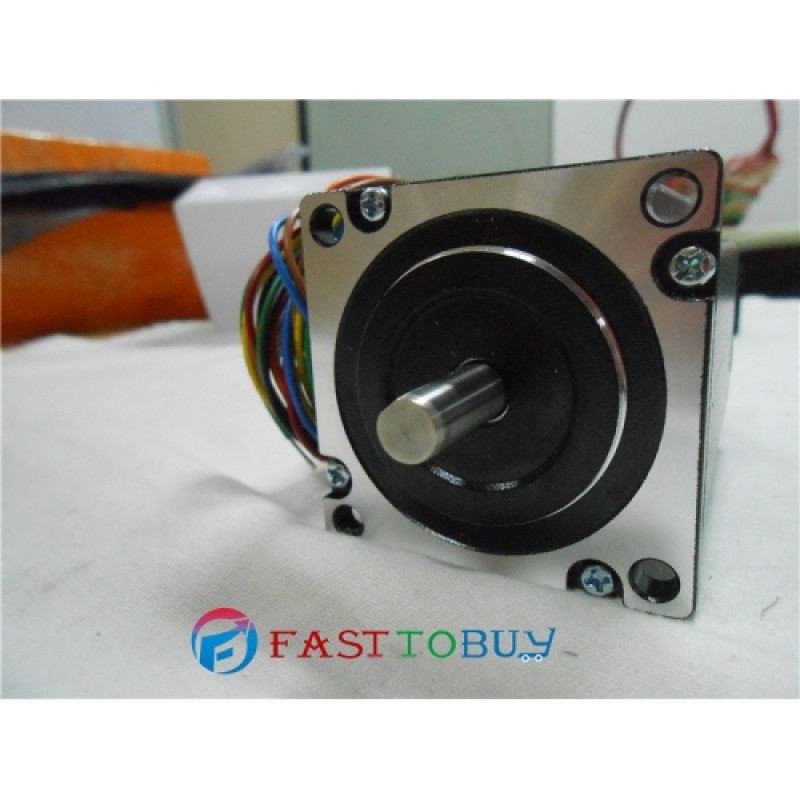

57HS22-A Leadshine 2 phase stepper motor 57HS unipolar 198.24(1.4)NM 1.8 degree 3.5A original brand new



Description

The 57HS22 two-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 8 motor leads, the motor can be connected in a few different ways, including bipolar series , bipolar parallel and unipolar. The 57HS22-A is single-axle.

Features

2 phase 1.8° stepping angle

NEMA 23

Holding toque of 2.2 N*m (312 oz-in)

High precision

Smooth movement

Low motor heating

Low movement noise

Specifications:

Step Angle

1.8°

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Number of Leads

8 except 57HS04(6 leads)

Electric

Model Number

Connection

Holding Torque Oz-in (Nm)

Phase Current (Amps)

Phase Resistance (Ohm)

Phase Inductance (mH)

Rotor Inertia Oz-in-sec2 (g.cm2)

57HS22

(Bipolar) Parallel

283.2(2.0)

5.0

0.4±10%

1.8±20%

0.006816(480)

(Bipolar) Series

283.2(2.0)

2.5

1.6±10%

7.2±20%

Unipolar

198.24(1.4)

3.5

0.8±10%

1.8±20%

 Applications

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Mechanical Specifications



2 phase stepper motor Lectotype List

Phase

Ideotype

Model

StallTorque (NM)

Step angle(º)

Pin count

Phase Current

Electric resistance(Ω)

Electrical inductance (mH)

Length L(mm)

Rotor inertia (g.cm²)

weight(kg)

Matching drives

Series connection

Paralleling connection

2 phase stepper

35

35HS01

0.07

1.8

4

0.4

35

8.0

28

12

0.17

M415B/DM320/M325

39

39HS02

0.065

1.8

4

0.6

15

16

34

20

0.18

M415B/DM320/M325

42

42HS02

0.22

1.8

4

0.4

12.5

21

40

57

0.24

DM320/DM422C/DM432C/
DM556/DM856/M542V2.O/
ND556/ M415B/M325

42HS03

0.34

1.8

8

0.7

1.4

4.6

4.0

48

82

0.34

57

57HS06

0.6

1.8

8

1.4

2.8

1.35

1.8

55

145

0.6

DM422C/DM432C/DM556/
DM856/M752/M542/
M860/M880A/MA550/
MA860/H850/ND556/
ND882/M415B/M325

57HS09

0.9

1.8

8

2.1

4.2

0.8

1.2

54

260

0.6

57HS13

1.3

1.8

8

2.0

4.0

1.0

2.1

76

460

1.0

57HS22

2.2

1.8

8

2.8

5.6

0.67

1.8

76

480

1.1

86

86HS35

3.0

1.8

8

2.0

4.0

1.4

3.9

65

800

2.0

DM556/DM856/M752/
M860/M880A/MA550/
MA860/H850/MA860H/
ND882/ND1182/ND2282/
M535/MD2278

86HS38

3.8

1.8

8

3.0

6.0

0.6

2.7

71

1200

2.6

86HS45

4.5

1.8

8

3.0

5.9

0.8

3.5

79.5

1400

2.3

86HS85

8.5

1.8

8

3.5

7.0

0.95

5.2

118

2800

3.8

110

110HS12

12

1.8

4

5.0

0.95

15

99

5500

5.0

MA860H/ND1182/ND2282/MD2278

110HS20

20

1.8

4

6.5

1.15

18.9

150

11000

8.4

MA860H/ND1182/ND2282/MD2278

130

130HS27

27

1.8

4

6.0

0.65

13.8

227

35000

13

ND2282/MD2278

130HS45

45

1.8

4

7.0

0.9

9.5

283

48400

19

ND2282/MD2278
