3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N

3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits 3S85Q-040F7+3M2280N
3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits  3S85Q-040F7+3M2280N3S85Q-040F7+3M... Read More
0 reviews • Write a review
$403.00
Ex Tax: $403.00
  • Stock: In Stock
  • Model: NEMA34
  • Weight: 7.00kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
20HS2802A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS2802A4 SUMTOR two-phase stepper motor 20BYG NEW
$26.00
Ex Tax:$26.00
Add to Cart Add to Wish List Compare this Product
20HS2806A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS2806A4 SUMTOR two-phase stepper motor 20BYG NEW
$26.00
Ex Tax:$26.00
Add to Cart Add to Wish List Compare this Product
20HS3402A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS3402A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
20HS3406A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS3406A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
20HS4002A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS4002A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
20HS4006A4 SUMTOR two-phase stepper motor 20BYG NEW
Quickview
20HS4006A4 SUMTOR two-phase stepper motor 20BYG NEW
$21.00
Ex Tax:$21.00
Add to Cart Add to Wish List Compare this Product
28BYGH501 + DQ420MA WANTAI Hybrid Stepping Set (Motor + Drive) NEW
Quickview
28BYGH501 + DQ420MA WANTAI Hybrid Stepping Set (Motor + Drive) NEW
$53.00
Ex Tax:$53.00
Add to Cart Add to Wish List Compare this Product
28BYGH501 WANTAI Hybrid Stepping Motor 28BYGH series NEW
Quickview
28BYGH501 WANTAI Hybrid Stepping Motor 28BYGH series NEW
$27.00
Ex Tax:$27.00
Add to Cart Add to Wish List Compare this Product
Tags: NEMA34

3PH 85mm NEMA34 4A 7.5NM 1071ozin 220VAC Stepper motor Drive kits  3S85Q-040F7+3M2280N

3S85Q-040F7+3M2280N

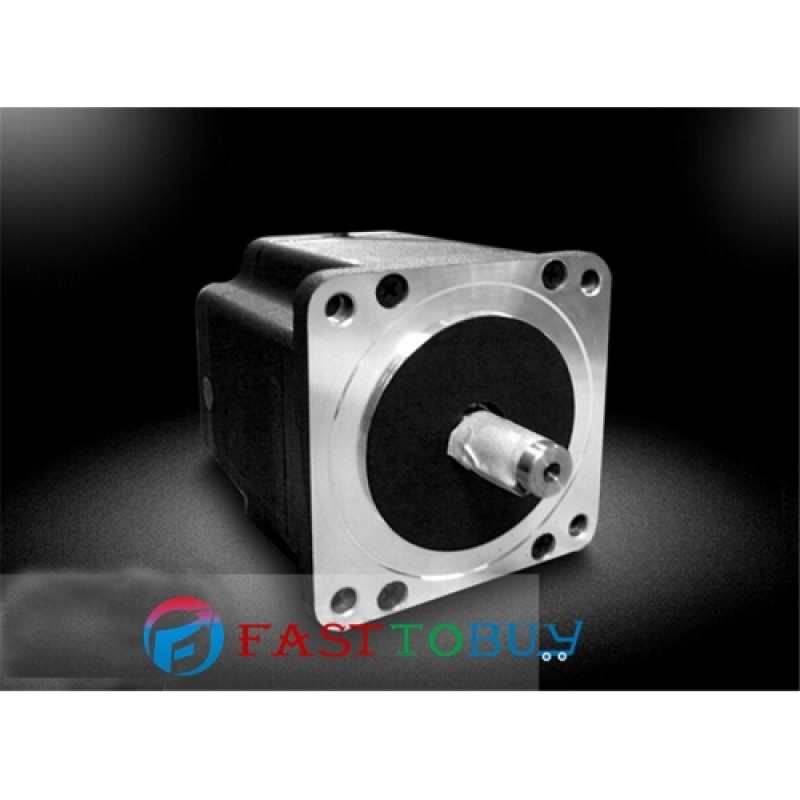

Hybrid Servo Motor 3S85Q-040F7

Specifications

Model

3S85Q-040F7

Step Angle

1.2centigrade degree±5%

Phase Current (A)

4

Holding Torque (Nm)

7.5

Damping Torque (Nm)

0.36

Winding Resistance (ohm)

1.78

Winding Inductance(mH)

17.1

Motor Inertia (Kg.com²)

0.44

Motor Length L(mm)

157±1

Number of Lead Wires

3

Insulation Class

B

Withstand Voltage Level

1800VAC,1S,5mA

Max.Axial Load (N)

60

Max.Readial Load (N)

220

Operating Temperature

 -30centigrade degree~30centigrade degree

Surface Temperature Rise

Max.80centigrade degree(Rated Phase Current after Phases are Connected)

Insulation Impedance

Minimum 100Mohm,500VDC

Weight (Kg)

5.3

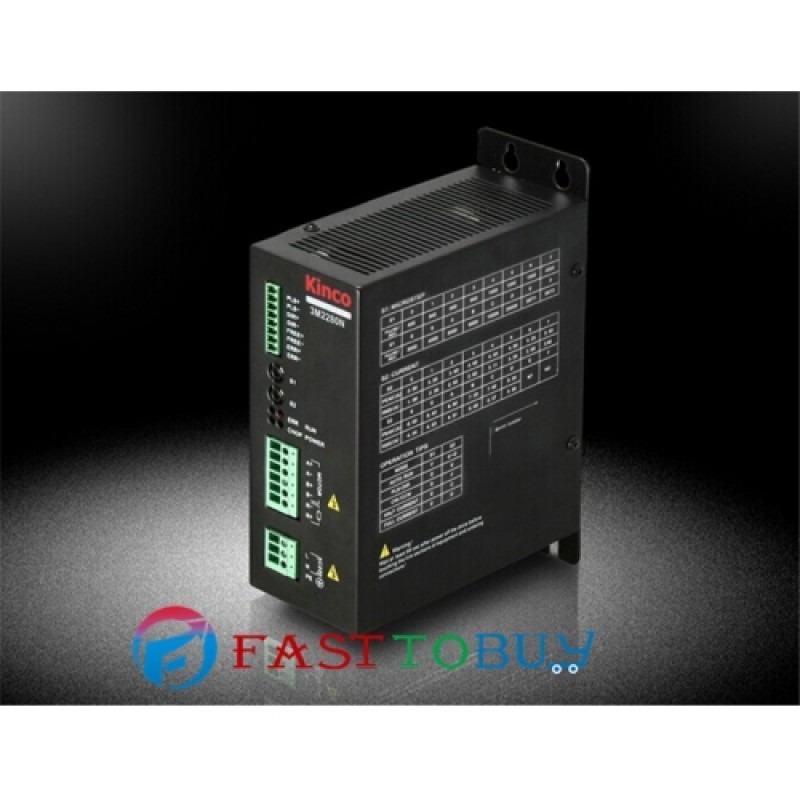

Hybrid Servo Drive 3M2280N

Features:

High Performance, Low Cost, and Diversified Functions

The Input Voltage of 3M2280N is 187V~253V.

Automatic Parameter Adjustable Regulation

Driver Test Running Function

Phase Memory Function

PLS+DIR and CW/CCW Control Signal Available.

Optocoupler Isolation I/O. There is an ERR Signal Output.

The Driver will Reduce the Phase Current of the Motor by a Half in 1.5 Seconds.

Opto-Isolation Signal Input, With Pulse Response Frequency up to 400 KHz

14 Micro-Step Value, the Maximum Micro-Step Value is 20000 Pulse/Rev.The Maximum Output Phase Current is 8A(Peak).

With the Protection Function of Over-Voltage, Under-Voltage, Over-Current, Overheat

With Step Smooth Filter,Can Smooth the Input Pulse,Reduce the Transient Motion of Motor,Make the Motor Runs More Smoothly.

Specification

Model

3M2280N

Parameter Lable

Input Voltage

3M2280N: Single-Phase 220V AC +/-15% (50Hz)(187VAC~253VAC)

Output Current

2.8, 3.2, 3.6, 4.0, 4.4, 4.8, 5.2, 5.6, 6, 6.4, 6.8, 7.2, 7.6 8.0

Micro Step

400, 500, 600, 800, 1000, 1200, 1500, 2000, 3000, 4000, 5000, 6000, 10000, 20000

Input Signal

Three Control Signal Ports: PLS(CW)/DIR(CCW)/FRE; Current Range: 6 ~16 mA

Control Signal Input Method

PLS+DIR; CW/CCW

Output Signal

ERR, Open Collector Output, Max Current: 10 mA.

Automatic Half-Current

The Driver Will Reduce the Phase Current of the Motor by a Half in 1.5 Seconds.

Protection

Over-Voltage, Under-Voltage, Short Circuit, and Overheat Protection

Absorbing Circuit*

Need Customize, Used to Absorb the Energy Feed Back by the Motor

Environment Parameter

Cooling Way

Forced Air Cooling

Environment

Operation Environment

Avoid the Environment with Great Amount of Metallic Powder, Oil mist, or Erosive Gases.

Operation Humidity

<85%, RH (Non-Condensing or Water Drops)

Operation Temperature

0centigrade degree ~ +40centigrade degree

Storage Temperature

-20centigrade degree ~ +70centigrade degree

Weight

1.5Kg

Dimensions

201mm×147mm×66mm

Protect Level

IP20

Function of Rotary Switch

S1,Micro-Step:

S1

0

1

2

3

4

5

6

7

Pulse/rev

400

500

600

800

1000

1200

1500

2000

S1

8

9

A

B

C

D

E

F

Pulse/rev

3000

4000

5000

6000

10000

20000

SET1

SET2

S2,Current:

Mode

PLS+DIR















S2

0

1

2

3

4

5

6

7

Peak(A)

2.8

3.2

3.6

4

4.4

4.8

5.2

5.6

Rms(A)

1.98

2.26

2.55

2.83

3.11

3.39

3.68

3.96

Mode

CW/CCW















S2

8

9

A

B

C

D

E

F

Peak(A)

6

6.4

6.8

7.2

7.6

8

M1

M2

Rms(A)

4.24

4.53

4.81

5.09

5.37

5.66
