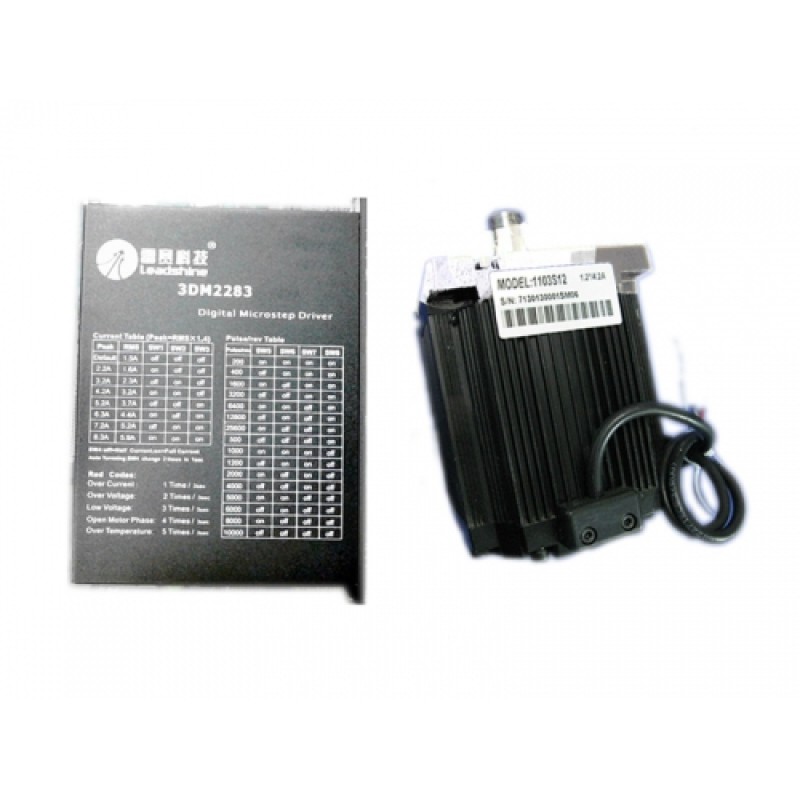

Leadshine NEMA42 110mm 1700oz-in 12N.M 180-240VAC 3phase Stepper motor Drive kits 1103S12+3DM2283
1103S12+3DM2283
Stepper Motor 1103S12
General Specifications
Angle Accuracy | 0.06 degree (full step, no load) |
Temperature Rise | 80K |
Ambient Temperature | temperature-10°C -- +50°C; humidity: 85% MAX |
Insulation Resistance | 100MΩmin.500VDC |
Dielectric Strength | 1000VAC for one minute |
Shaft Radial Play | 0.025mm MAX.(5N load) |
Shaft Axial Play | 0.075mm MAX.(10N load) |
Electric
Model No. | 1103S12 |
Step Angle | 1.2° |
Phase | 3 Phase |
Holding Torque | 12 N.M |
1700 oz-in | |
NEME Size | NEME 42 |
Motor frame size | Frame 110 |
Current /phase | 4.2A |
Motor Weight | 7.1Kg |
Motor Length L | 139 mm |
Drive 3ND1183
DM Series Classis Analog Stepper Drives
Highlights
Step & direction or CW/CCW control
Advanced DSP-based current control algorithm
Low-middle speed anti-resonance
Extra low noise; extra low motor heating; smooth motor movement
Easy setup via DIP switches for microstepping resolution and output current
Free software for fine tuning, output current, resolutions...
Automatic stepper motor identification and self configuration
Electrical Specifications
Phase | Series | Model | Current | Voltage | Microstep | Motor Adapter | Weight | Size | Controlling Signal |
3 Phase | DM | 3DM2283 | 2.9-11.7 | 180-240VAC | 400-25600 | 86,110,130 | -- | -- | Single-ended;Differential Signal |
DM Series Applications
Suitable for applications require high performance, extra low motor noise, extra smooth movement stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, lab automation instruments, textile equipment, medical devices, assembly machines, pick-and-place devices, etc.
1103S12 Dimension
3DM2283 Dimension
Typical Connection
110 Series 3 Phase Electrical Connection
