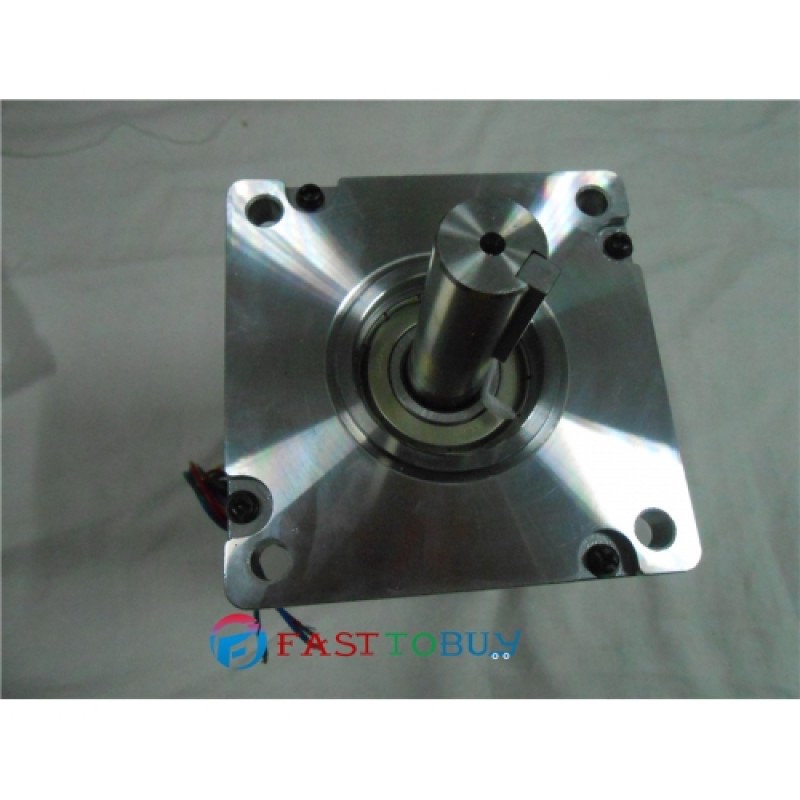

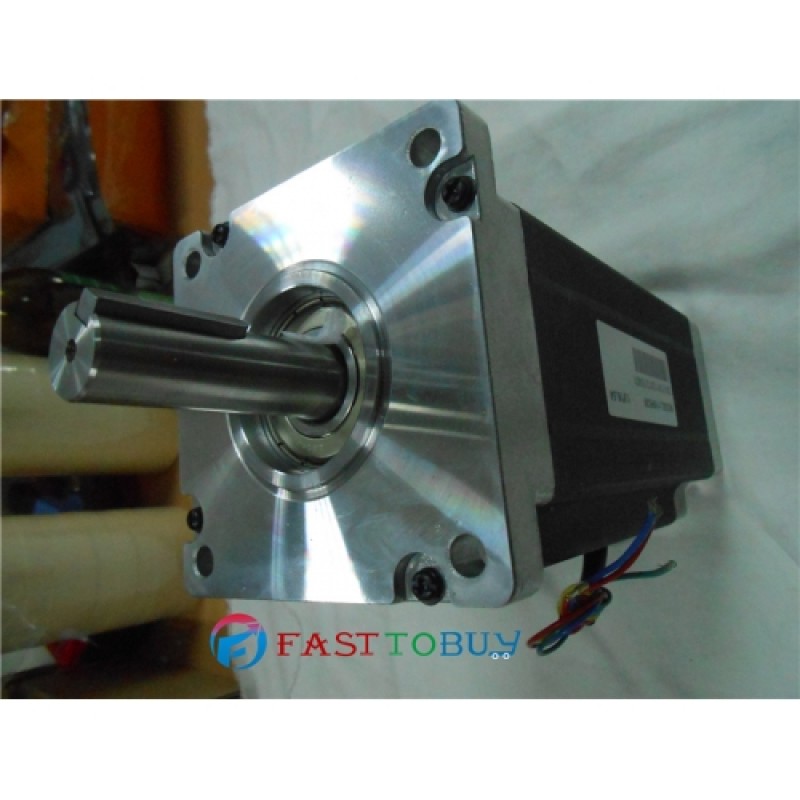

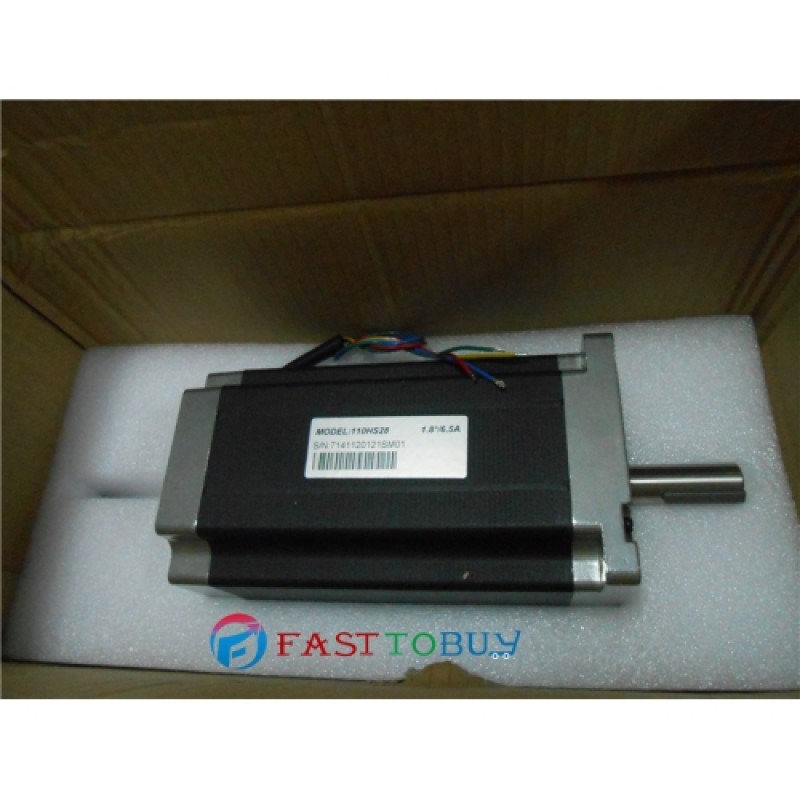

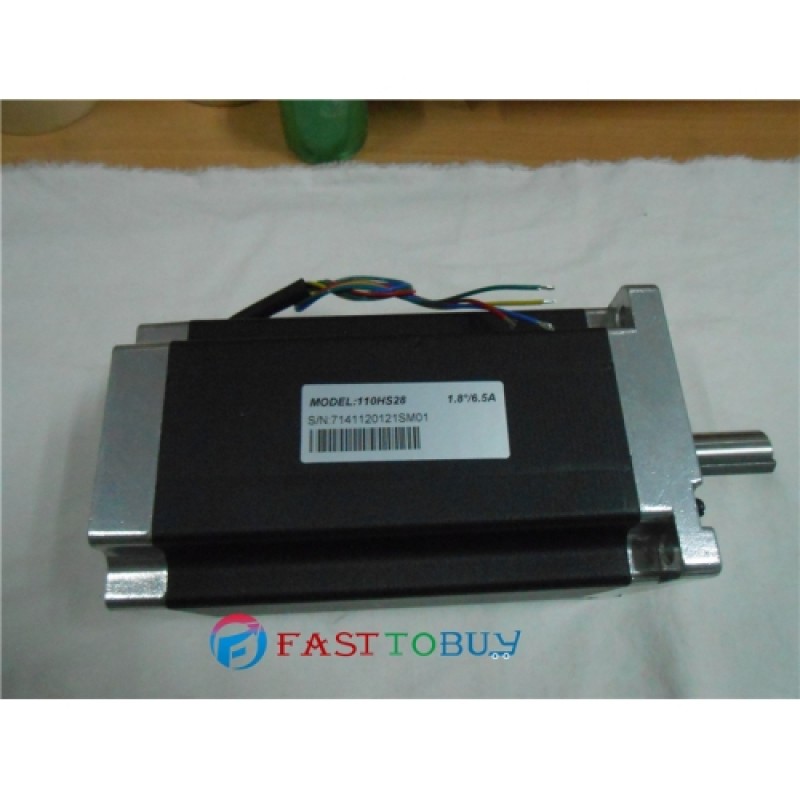

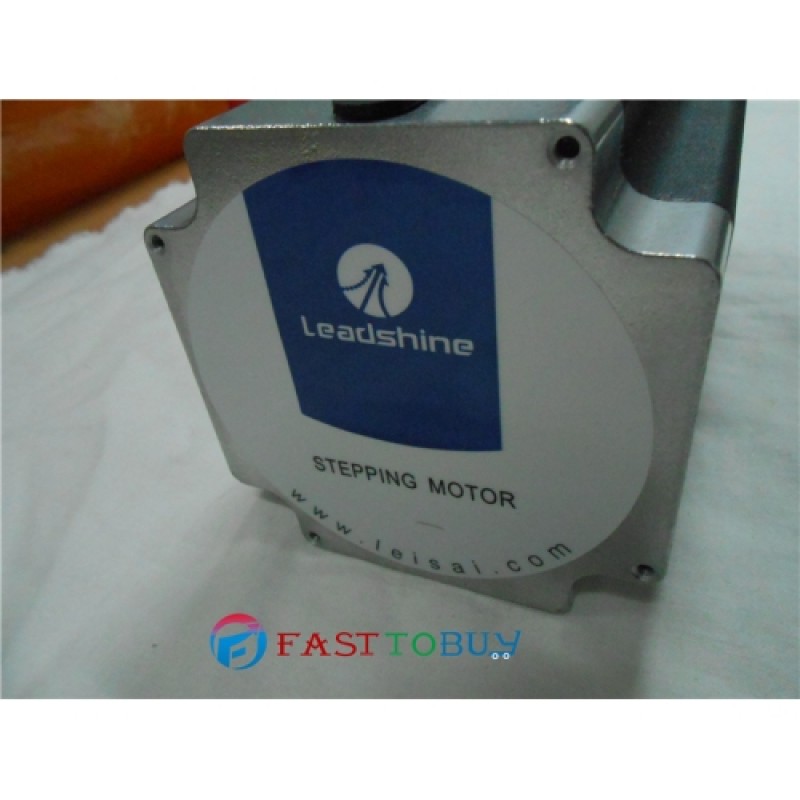

110HS28 Leadshine Stepper motor 1.8° 6.5A 28NM NEMA42 110mm one year Warranty  original brand new Fe... Read More
$195.00
Ex Tax: $195.00
  • Stock: In Stock
  • Model: 110HS28
  • Weight: 13.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: 110HS28

110HS28 Leadshine Stepper motor 1.8° 6.5A 28NM NEMA42 110mm one year Warranty  original brand new



Features

2 phase 1.8° stepping angle

NEMA 42

Holding toque of 28 N*m (3965 oz-in)

High precision

Smooth movement

Low motor heating

Low movement noise

Made of high quality cold roll sheet copper and anti-high temperature permanent magnet, Leadshine's stepper motors are highly reliable and generate low motor heating. Because of their nice internal damping characteristics, those stepping motors can run very smoothly and have no obvious resonance area within the whole speed ranges.

Specifications:

General

Step Angle

1.8°

Step Angle Accuracy

+5%(full step, no load)

Temperature Rise

80°CMax

Ambient Temperature

-10°C -- +50°C

Insulation Resistance

100MΩmin.500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.06 Max.(450g-load)

Shaft Axial Play

0.08 max.(450g-load)

Number of Leads

4

Applications

Suitable for all kinds of small automation equipment and instruments, such as: pneumatic marking machine, marking machine, cutting machine, laser marking machine, plotter, small engraving machine, CNC machine tools, handling equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.

Model

Frame Size

Holding Torque(NM)

Current (A/phase)

Length

Weight KG

Parallel

Series

4-Lead/6/8-lead Half -coil

Parallel

Series

4-Lead/6/8-lead Half -coil

110HS12

NEMA42

-

-

12

-

-

6

115

3

110HS20

NEMA42

-

-

20

-

-

6

150

8.4

110HS28

NEMA42

-

-

28

-

-

6.5

201

11.7

Mechanical specifications
