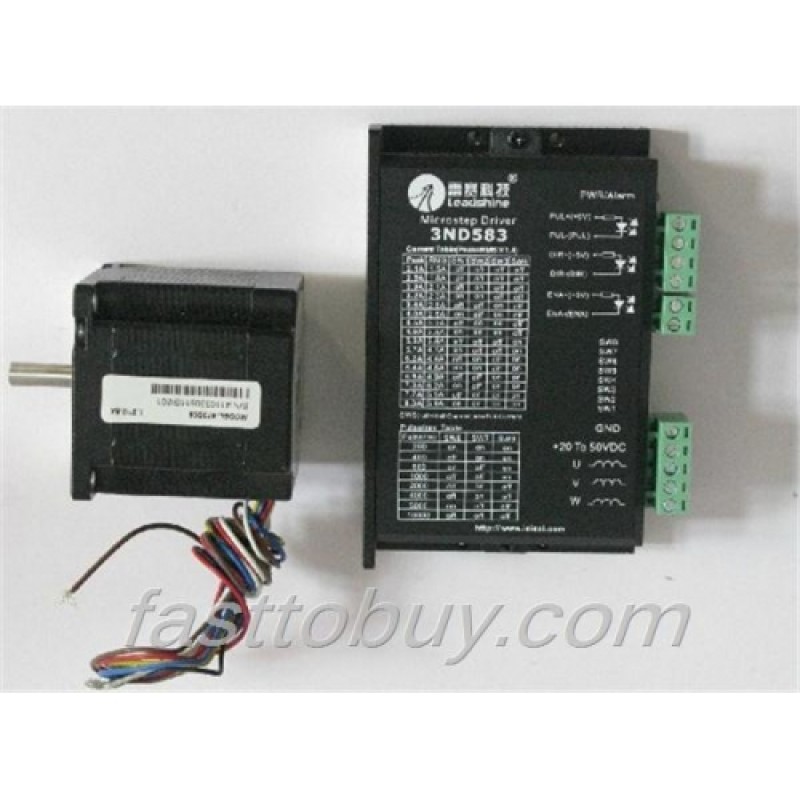

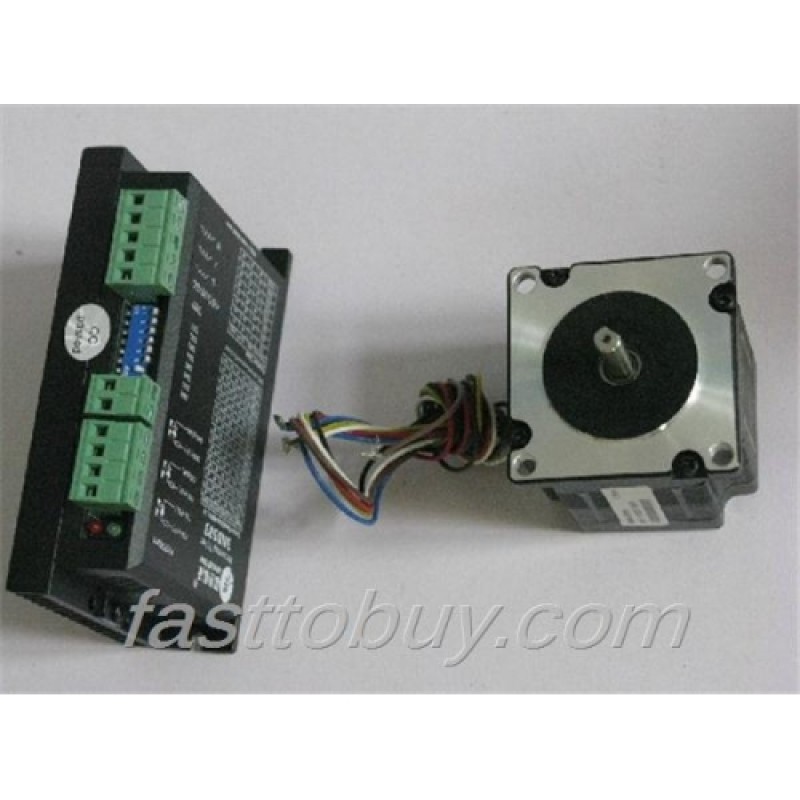

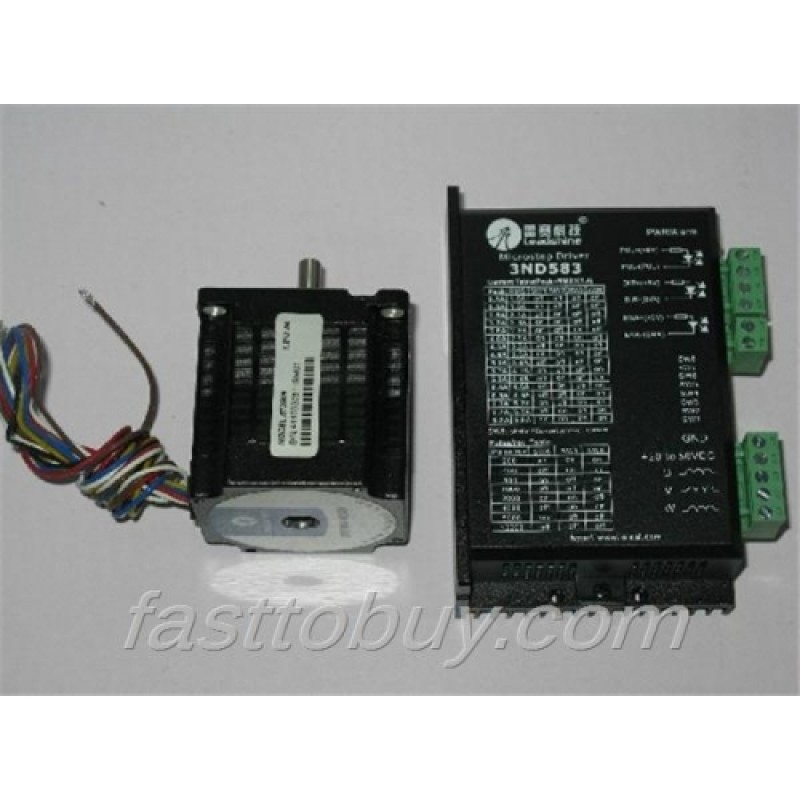

Leadshine 3-phase Stepper Set (Drive + Motor) 3ND583 + 573S09 0.9N.m New

PLCAGE: Leadshine 3-phase Stepper Set (Drive + Motor) 3ND583 + 573S09 0.9N.m New

3ND583

Features:

*High performance, low noise and lost cost

*Low driver heating and low motor heating

*Supply voltage up to 50 VDC

*Output current up to 8.3A (RMS 5.9A)

*Input signal TTL compatible

*Automatic idle-current reduction

*Suitable for 3-phase stepping motors, including 3 lead and 6 lead motors

*Optically isolated differential input signals, pulse frequency up to 300 KHz

*8 selectable resolutions up to 10000 steps/rev

*DIP switch current setting with 16 different values

*PUL/DIR & CW/CCW modes optional

*Over-voltage, short-voltage, over-current and short-circuit protection

*Small size for easy mounting

Specifications:

Applications:

Suitable for a wide range of 3-phase stepping motors from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, labeling machines, laser cutters, engraving machines, and pick-place devices, and etc. It’s extremely suitable for the applications desired with low noise, low vibration, high speed and high precision.

573S09

Features:

*3-phase hybrid step motor

*High torque design

*Standard NEMA 23 dimensions

*Delta wiring

*Optimized for microstepping

Specifications:

General

Matching drives:

Applications:

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.
