M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC

M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC
M415B 20 28 42mm stepping motor 64 microstep driver 2ph DC18-40V 1.5A CNC

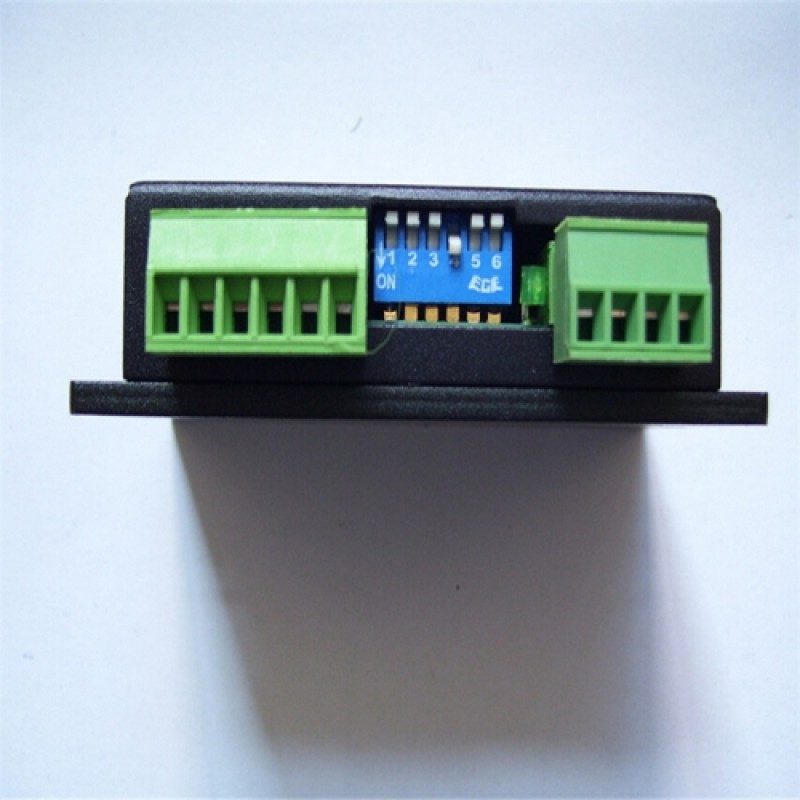

M415B Feature:High performance, low priceVoltage supply: 18~40VDCDrive current: 0.21~1.5AAutomatic h... Read More
$21.00
Ex Tax: $21.00
  • Stock: In Stock
  • Model: DC18-40V
  • Weight: 0.70kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: DC18-40V

M415B

Feature:

High performance, low price

Voltage supply: 18~40VDC

Drive current: 0.21~1.5A

Automatic half flow function

The highest dynamic 64 microstep

Photoelectric isolation signal input

Motor noise optimization function

Bipolar constant current chopping mode

Chopper frequency up to 100 KHZ

Exquisite shape, ease of installation

This drive only supports common anode connection, active low. Customers choose carefully!

Application:

Typical applications for AC stepper motor drive: Marking machine, labeling machine, cutting machine, plotter, small engraving machine, NC machine tools, transmission mechanism, medical apparatus and instruments, etc. For the vibration of the motor itself, the output torque of noise and its accuracy and high speed have been improved obviously.

Specification:

Item

Min

Typical

Max

Unit

Power supply

18

24

40

V

Average output current

0.21

1

1.5

A

Logic input current

6

15

30

mA

Impulse response frequency

-

-

100

KHZ

Pulse low level

5

-

1

μS

Current setting

PK Current

SW1

SW2

SW3

0.21A

off

on

on

0.42A

on

off

on

0.63A

off

off

on

0.84A

on

on

off

1.05A

off

on

off

1.26A

on

off

off

1.50A

off

off

off

Subdivision setting:

MSTEP

SW4

SW5

SW6

1

on

on

on

2

off

on

on

4

on

off

on

8

off

off

on

16

on

on

on

32

off

on

off

64

on

off

off

Wiring Description

Signal

Function

PUL

Pulse signal: rising edge, the pulse from low to high is to go a step angle motor

DIR

Direction signal: TTL-level driver to change the direction

OPTO

Optocoupler drive power

ENA

Enable signal: block or allow the drive to work, low-level ban

GND

DC power supply ground

+V

DC power supply positive (typical 24VDC)

A+

Motor Phase A

A-

Motor Phase A

B+

Motor Phase B

B-

Motor Phase B

Wiring Diagram


NOTE: when VCC voltage is +5V, Without series resistor R ,R=0 ohm;

when VCC voltage is +12V, ,R=1k ohm/0.25w

when VCC voltage is +24V, ,R=1k ohm/0.25w
