Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router

Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router
 Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router 86HS8040A4G10+MA860HA... Read More
$123.00
Ex Tax: $123.00
  • Stock: In Stock
  • Model: Ratio1:10
  • Weight: 5.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: Ratio1:10

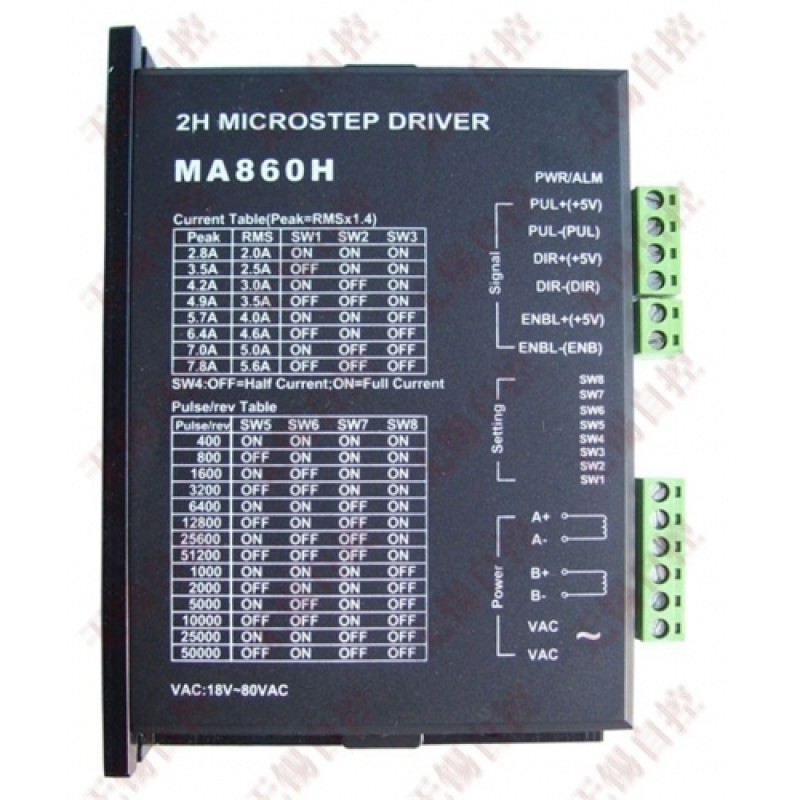

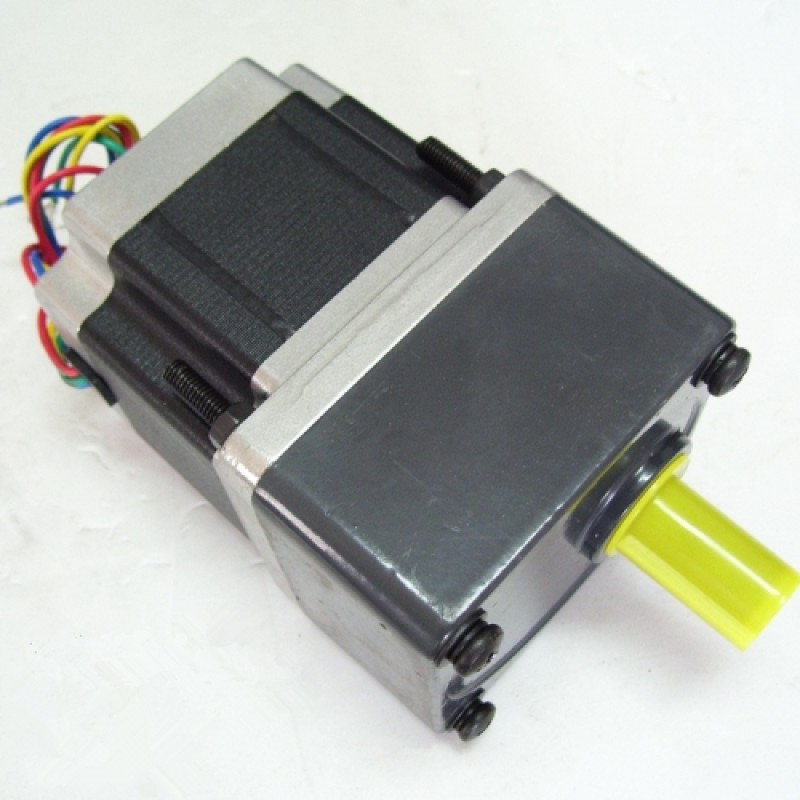

 Ratio1:10 NEMA34 4A 4NM 572oz-in L 80mm Gear Reduction Motor+Drive CNC Router 86HS8040A4G10+MA860H

Appliaction:

Inject printers, Textile Equipment, Embroidery Machine, Precision Telescope Positioning Systems, engraving machine, packaging machinery, CNC numerically-controlled machine tool and transmission.

Motor Product Description:

Step Angle Accuracy: ±5%(full step, no load)

Resistance Accuracy: ±10%

Inductance Accuracy: ±20%

Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)

Ambient Temperature: -20°C-+50°C

Insulation Resistance: 100MΩ Min.500V DC

Dielectric Strength: 500V AC for one minute

There are multiple choice for 86BYG series geared motor. if you any other choice, please please do contact us for a better solution.

Motor Length: 66mm  80mm   98mm  114mm  126mm  156mm

Gear Ratio: 1:3   1:5  1:7.5  1:10   1:12.5   1:15   1:20   1:25   1:30  1:40   1:50   1:75   1:150   1:180

Reduction box: 90*90*45mm(Gear Ratio<20)

Reduction box: 90*90*60mm(Gear Ratio>=20)

Gear Reduction Motor Specifications

Model

Step Angle

Rated Current (A)

Phase Resistance

(ohm)

Phase Inductance

(mH)

Holding Torque

(N*m)

Detent Torque

(N*cm)

Rotor Inertia

(g*cm2)

Motor Length

(mm)

86HS6640A4

1.8

4

0.6

1.6

3

5.5

850

66

86HS8040A4

1.8

4

0.75

5.6

4

6.5

1050

80

86HS9860A4

1.8

6

0.33

2.4

6.5

9.5

1550

98

86HS11460A4

1.8

6

0.5

2.1

8.2

12.5

1800

114

86HS12660A4

1.8

6

0.65

3.5

9.5

18.5

2200

126

Stepper Drive Specifications

Item

Min

Typical

Max

Unit

Power supply

24

-

110

VDC

18



80

VAC

Average output current

2

2.5

7.8

A

Logic input current

6

15

30

mA

Impulse response frequency

-

-

100

KHZ

Pulse low level

5

-

1

μS

Drive Wiring Description

Signal

Function

PUL

Pulse signal: rising edge, the pulse from low to high is to go a step angle motor

DIR

Direction signal: TTL-level driver to change the direction

OPTO

Optocoupler drive power

ENA

Enable signal: block or allow the drive to work, low-level ban

GND

DC power supply ground

+V

DC power supply positive (typical 24VDC)

A+

Motor Phase A

A-

Motor Phase A

B+

Motor Phase B

B-

Motor Phase B
