Ratio 1:10 NEMA17 1.3A 0.4NM 57oz-in L 40mm Gear Reduction Motor+Drive 3D Printer 42HS4013A4-G10+M420B
Appliaction:
Marking machine, labeling machine, cutting machine, plotter, small engraving machine, NC machine tools, transmission mechanism, medical apparatus and instruments, etc. For the vibration of the motor itself, the output torque of noise and its accuracy and high speed have been improved obviously.
Product Description
Step Angle Accuracy: ±5%(full step, no load)
Resistance Accuracy: ±10%
Inductance Accuracy: ±20%
Temperature Rise: 80 Degrees Celsius Max.(rated current,2 phase on)
Ambient Temperature: -20°C-+50°C
Insulation Resistance: 100MΩ Min.500V DC
Dielectric Strength: 500V AC for one minute

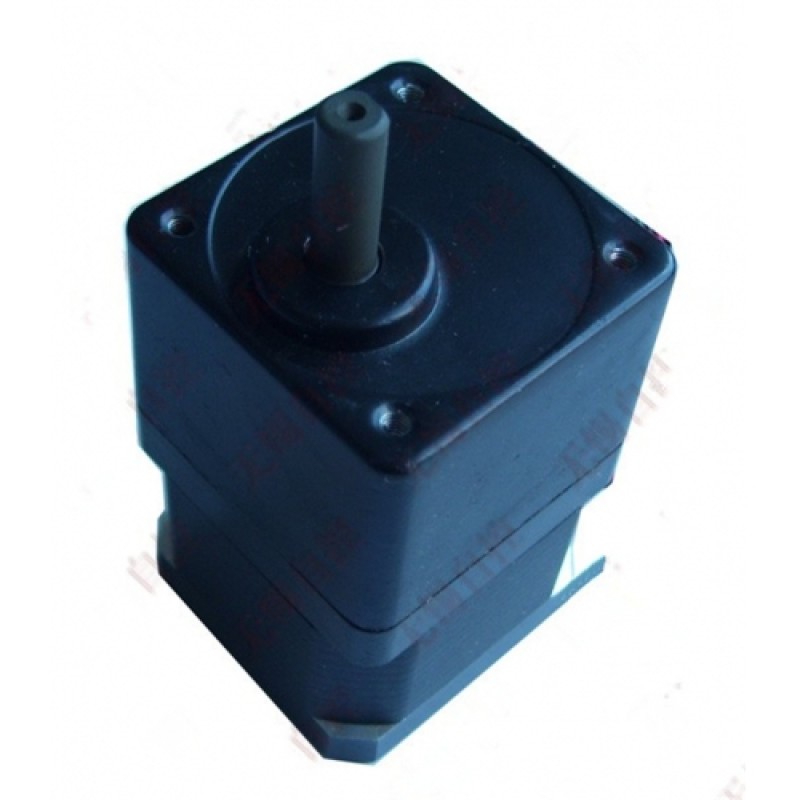

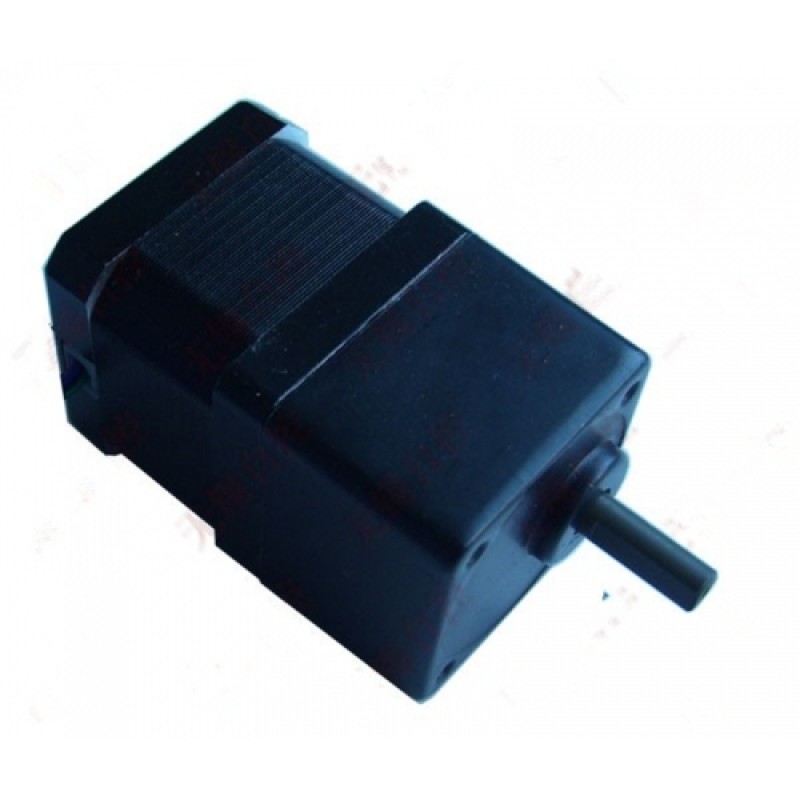

Gear Reduction Motor Specifications
Model | 42HS4013A4-G10 | 42HS4013A4-G18 | 42HS4013A4-G50 |
Step Angle | 1.8 | 1.8 | 1.8 |
Rated Current (A) | 1.3 | 1.3 | 1.3 |
Phase Resistance(ohm) | 2.5 | 2.5 | 2.5 |
Phase Inductance(mH) | 5 | 5 | 5 |
Holding Torque(N*cm) | 40 | 40 | 40 |
Detent Torque(N*cm) | 2.2 | 2.2 | 2.2 |
Rotor Inertia(g*cm2) | 54 | 54 | 54 |
Motor Length (mm) | 40 | 40 | 40 |
Motor Wire (No.) | 4 | 4 | 4 |
Gear Ratio | 10 | 18 | 50 |

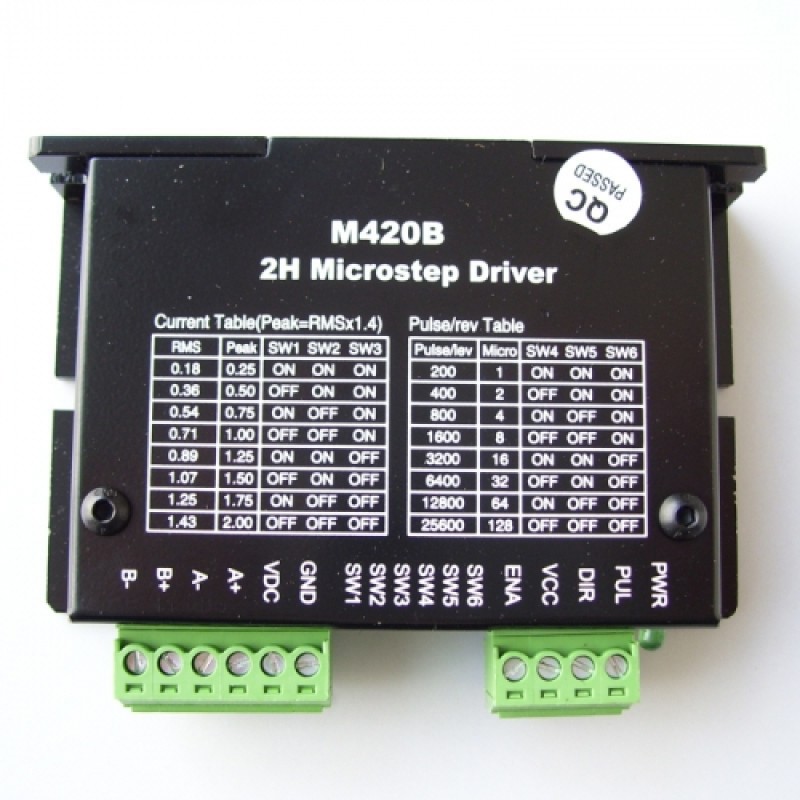

Drive Specifications
Item | Min | Typical | Max | Unit |
Power supply | 18 | 24 | 40 | V |
Average output current | 0.25 | 1 | 2 | A |
Logic input current | 6 | 15 | 30 | mA |
Impulse response frequency | - | - | 100 | KHZ |
Pulse low level | 5 | - | 1 | μS |
