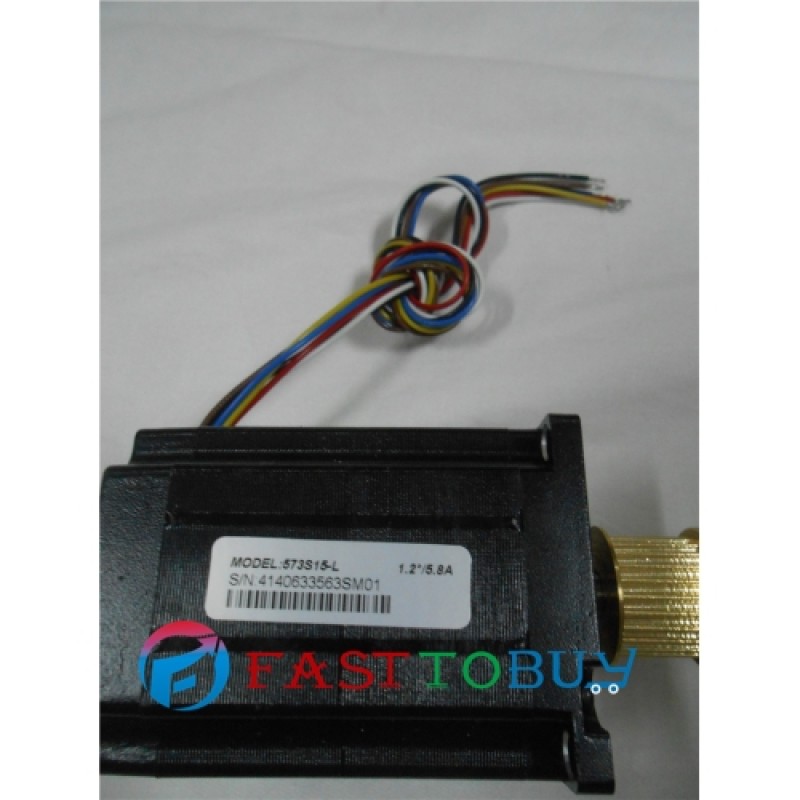

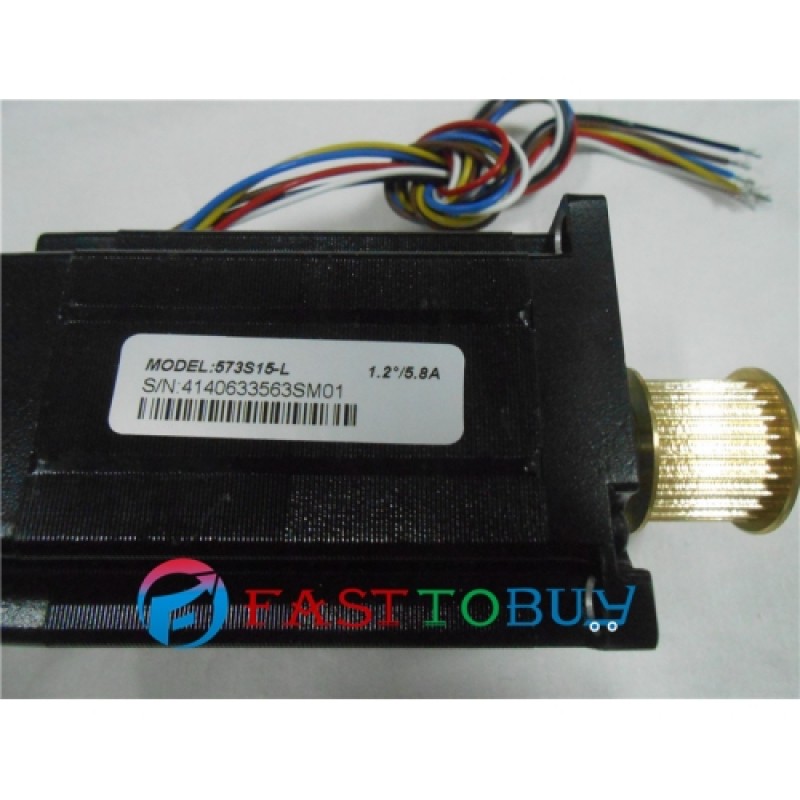

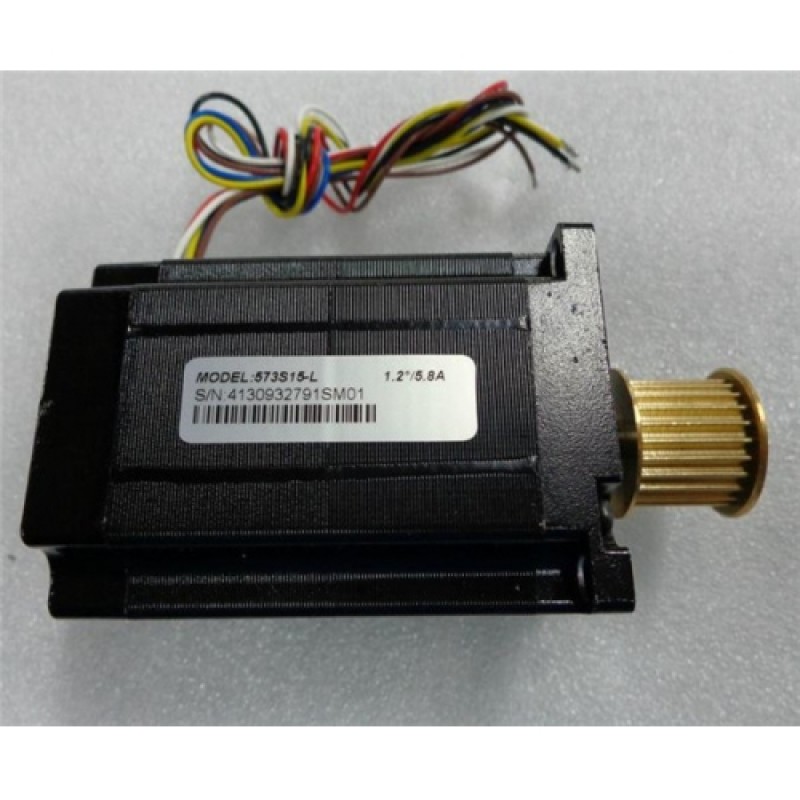

573S15-L Leadshine 3 phase stepper motor gear pulley 1.3NM 1.2 degree 5.8A original brand new
Description
The 573S15 three-phase stepper motor is suitable for a wide range of motion control applications. Terminated with 6 motor leads, the motor can be connected in delta connection. 573S15-L with motor gears and pulleys
Features
3 phase 1.2° stepping angle
Standard NEMA 23 dimensions
Holding toque of 1.5 Nm (212 oz-in)
High precision
Smooth movement
Low motor heating
Low movement noise
Specifications:
General
Step Angle | 1.2° | |||
Step Angle Accuracy | +5%(full step, no load) | |||
Temperature Rise | 80°CMax | |||
Ambient Temperature | -10°C -- +50°C | |||
Insulation Resistance | 100MΩmin.500VDC | |||
Dielectric Strength | 500VAC for one minute | |||
Shaft Radial Play | 0.06 Max.(450g-load) | |||
Shaft Axial Play | 0.08 max.(450g-load) | |||
Model No. | Unit | 573S05 | 573S09 | 573S15 |
Step Angle | (°) | 1.2 | 1.2 | 1.2 |
Holding Torque | N*m | 0.45 | 0.6 | 1.3 |
Current /phase | A | 5.2 | 3.5 | 5.8 |
Inductance /phase | mH | 1.4 | 1.7 | 1.35 |
Resistance /phase | Ohm | 1.3 | 1.3 | 0.7 |
# of leads | - | 6 | 6 | 6 |
Rotor Innertia | g*cm2 | 110 | 200 | 400 |
Detent Torque | N*cm | 2.1 | 4.0 | 6.8 |
Motor Weight | Kg | 0.45 | 0.6 | 1.0 |
Motor Length L | mm | 42 | 50 | 76 |
Applications
Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser typesetting, plotter and CNC machine tools, automatic assembly equipment, etc. The efficiency is very high for the users who expect low vibration, little noise, high precision and high speed small equipments.
