3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits 3S57Q-04042+3M458

3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits 3S57Q-04042+3M458
3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M4583S57Q-04042+3... Read More
$149.00
Ex Tax: $149.00
  • Stock: In Stock
  • Model: NEMA23
  • Weight: 2.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: NEMA23

3PH 57mm NEMA23 5.2A 0.45NM 64ozin 24-40VDC Stepper motor Drive kits  3S57Q-04042+3M458

3S57Q-04042+3M458

Hybrid Servo Motor 3S57Q-04042

Specifications

Model

3S57Q-04042

Step Angle

1.2centigrade degree±5%

Phase Current (A)

5.2

Holding Torque (Nm)

0.45

Damping Torque (Nm)

0.02

Winding Resistance (ohm)

1.3±10%

Winding Inductance(mH)

1.4±20%

Motor Inertia (Kg.com²)

0.11

Motor Length L(mm)

42

Number of Lead Wires

6

Insulation Class

B

Withstand Voltage Level

600VAC 1S 5mA

Max.Axial Load (N)

15

Max.Readial Load (N)

75

Operating Temperature

 -20centigrade degree~50centigrade degree

Surface Temperature Rise

Max.80centigrade degree (Rated Phase Current after Phases are Connected)

Insulation Impedance

Minimum 100Mohm,500VDC

Weight (Kg)

0.45

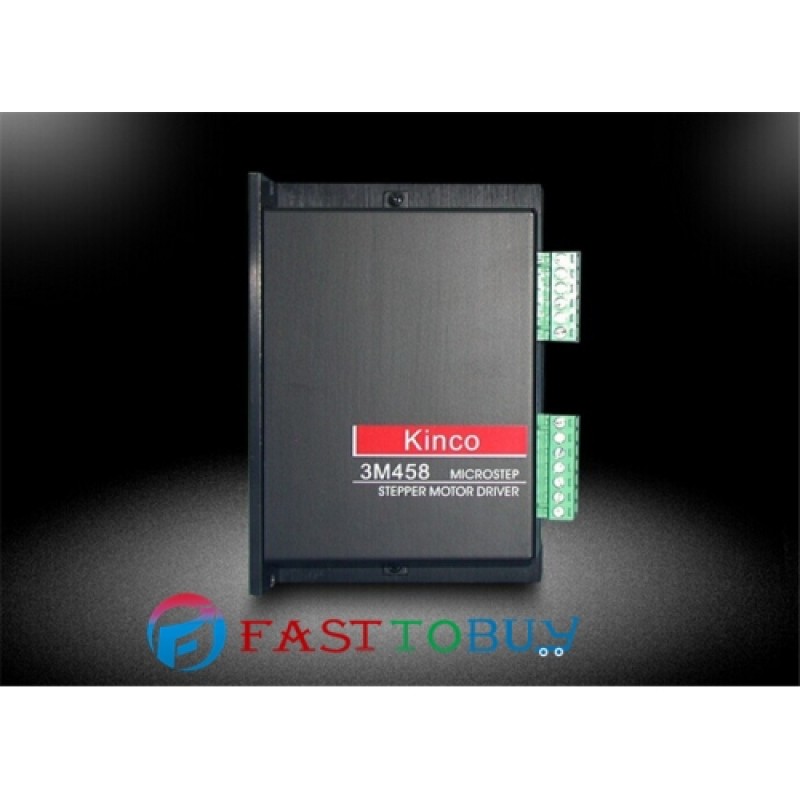

Hybrid Servo Drive 3M458

Features:

The AC Servo Drive Principle is Used,Providing AC Servo Rotation Characteristics and Three-Phase Sine Wave Current Output;
The Internal Drive DC Voltage Reaches 40V,Which can Provide Better High-Speed;
Supporting Automatic Half Current Function of Motors in Statically Locked Status, which can Greatly Reduce Heat Dissipation of the Motors;
Supporting Subdivision Function up to 10,000 Steps/Revolution. The Subdivision Function can be Set by the DIP Switch, to Ensure the Best Operation Stability;
It has Little the Resonance and Creeping Area Common to Stepper Motors.The Output Phase Current can be Set through the DIP Switch,Featuring Very Low Operation Noise,Closing to the AC Servo Level.
Optical Coupling Devices are Used for the Isolation of the Input Circuit of the Control Signals to Reduce Interference of External Noises.
The Sine Current Drive Mode is Taken So that the No-Load Start Frequency of a Motor can Reach about 5KHz(100Steps/Revolution).

Specification

Model

3M458

Supply Voltage

DC 24V ~40V

Output Phase Current

3A~ 5.8A

Control Signal Input Current

6~16mA

Cooling Method

Natural Air Cooling

Operating Environment

Avoid the Environment with a Great Amount of Metallic Powder, Oil Mist, or Erosive Gases

Operating Temperature

-10centigrade degree~ +45centigrade degree

Operating Humidity

< 85% (Non-Condensing)

Weight

0.7 Kg
