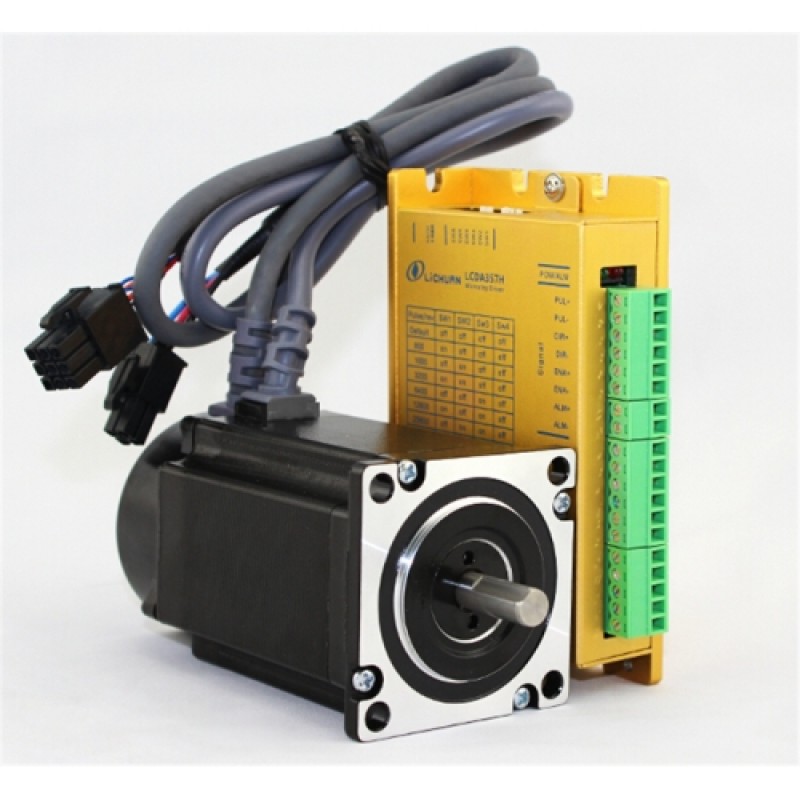

DSP Closed-Loop Step Motor Drive Kit 20-50VDC 3PH 3.5A 1NM NEMA23 57mm Engraving machines
Package:
1. motor LC57H355
2. drive LCDA357H
3. 3M Encoder cable& Power Cable
Application:
It is suitable all kinds of Small and medium-sized automation equipment and instrumentation.
Such as carving machine, wire-stripping machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, etc. This is efficient for the equipment with Low noise and high-speed.

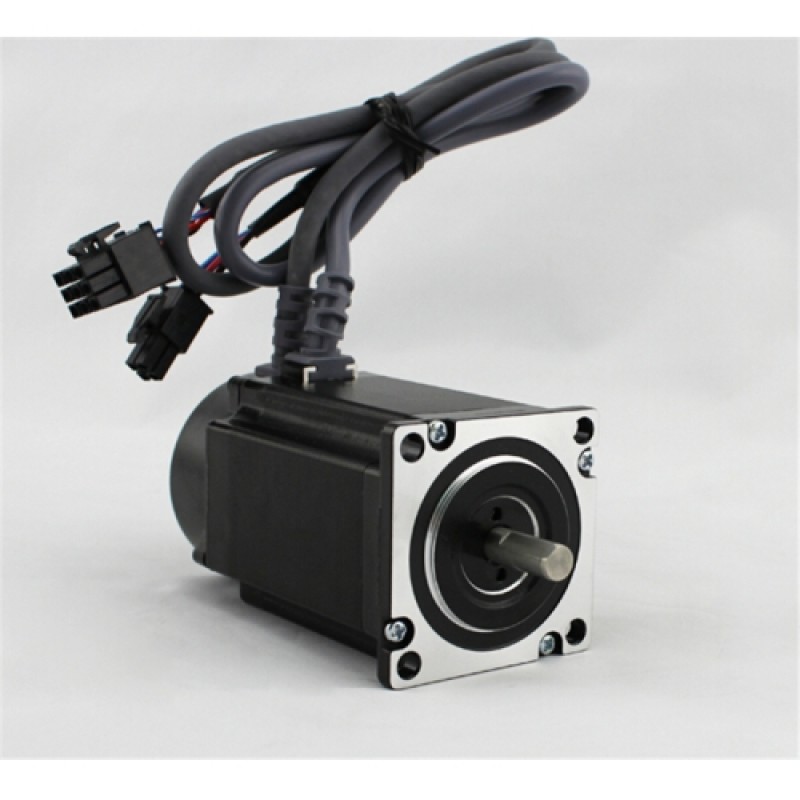

Motor Electrical Specifications
Model | Phase | Holding torque | Phase current | Motor Length | rotational inertia | Weight | Encoder ppr |
LC57H355 | 2 | 1Nm | 3.5A | 55+22mm | 0.3g.m2 | 1kg | 1000 |
LC57H380 | 2 | 2Nm | 3.5A | 80+22mm | 0.5 g.m2 | 1.4kg | 1000 |
LC57H3100 | 2 | 3NM | 4A | 100+22mm | 0.7 g.m2 | 1.8kg | 1000 |

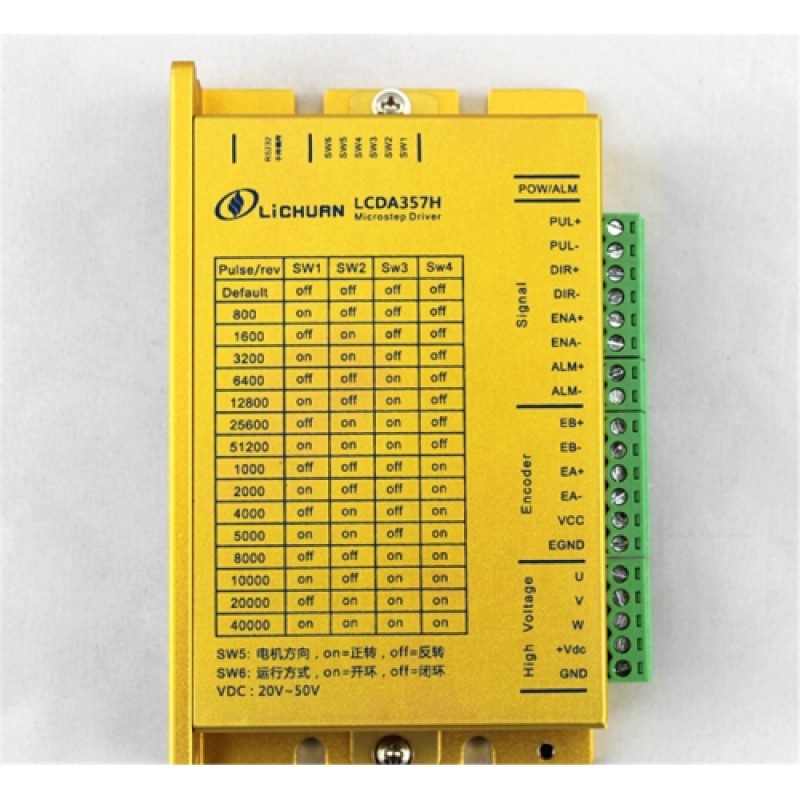

LCDA357H Drive functional characteristics
Voltage range: 18~50 VDC
maximum peak current: 7A
Segmentation scope: 200 ~ 51200ppr
Signal input: difference/single-ended, pulse/direction
Optical isolation signal inputting, strong anti-jamming capability
Impulse response frequency: 200 KHZ
Electricity parameter automatic setting function
Closed-loop vector control, high speed and large torque output of motor, meanwhile, guarantee no step to lose
Low vibration noise, Over-voltage, over-current, tracking error over proof protection function
Motor Mechanical Dimensions
Wiring Diagram
