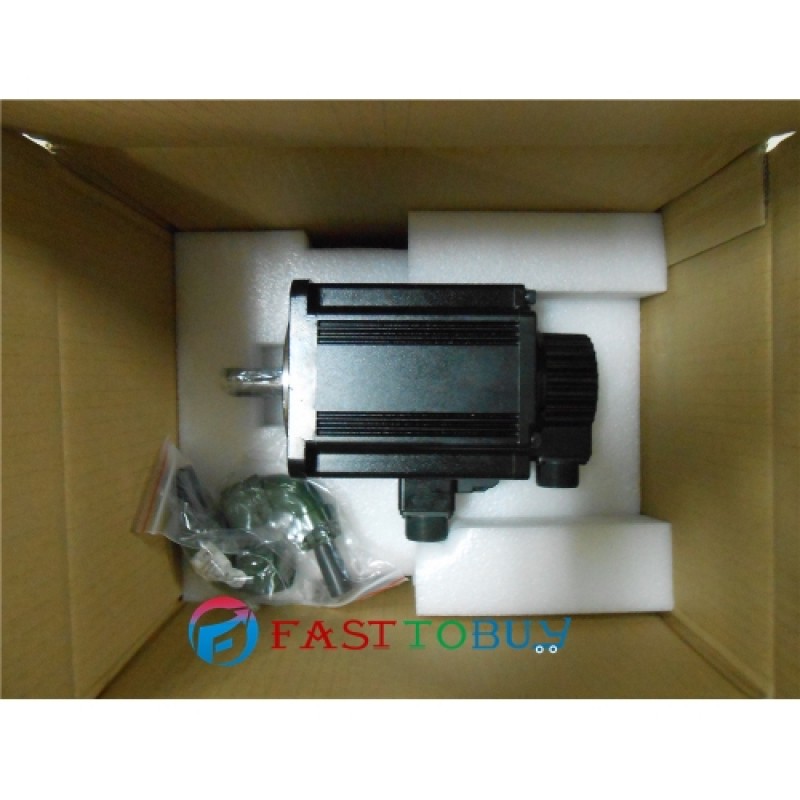

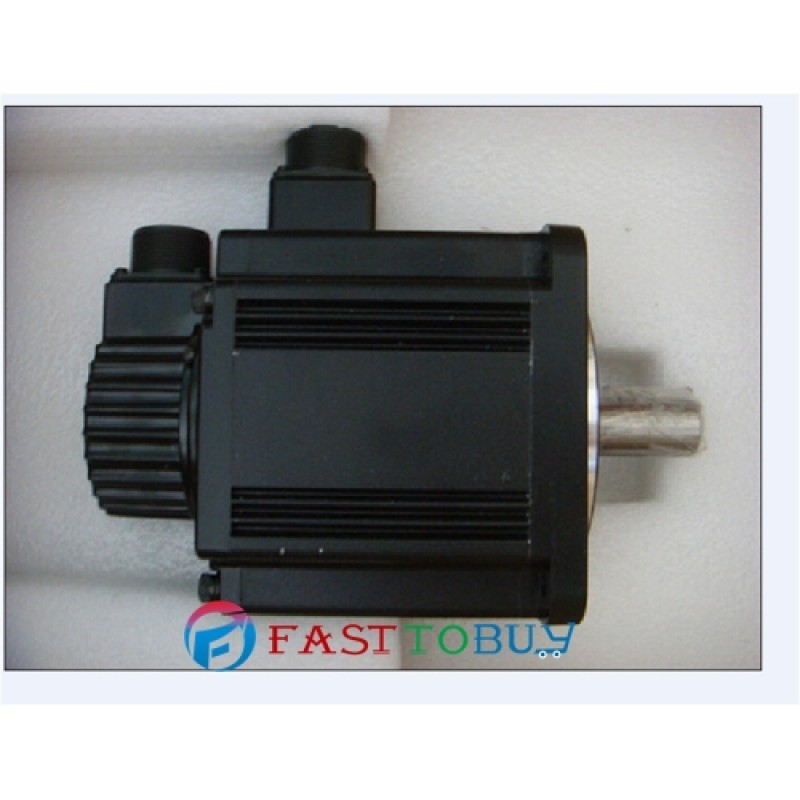

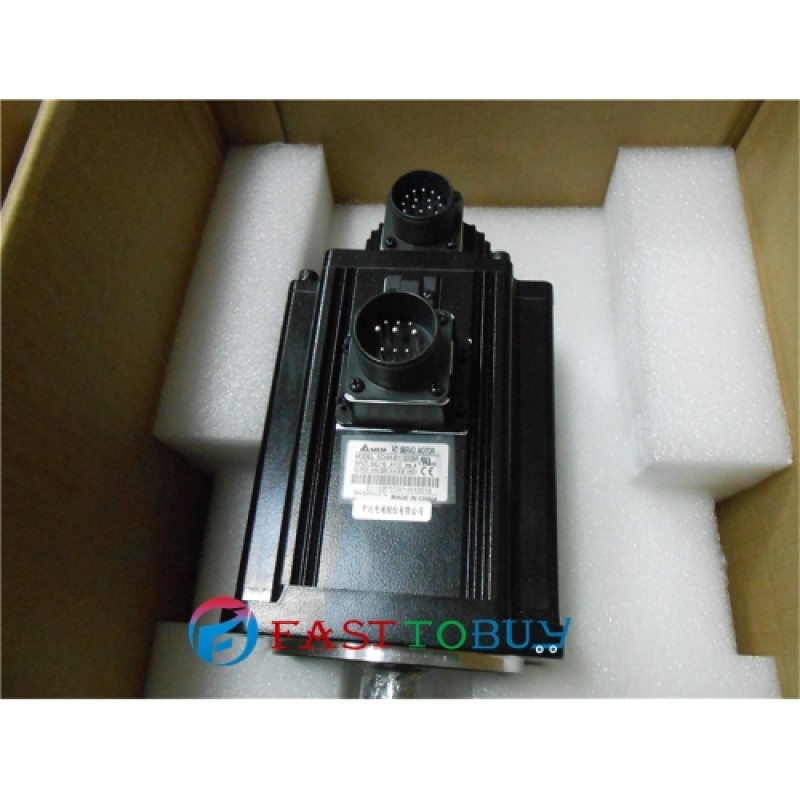

ECMA-EA1820SS Detla AC Servo Motor 220V 2KW 9.55NM 2000rpm 180mm with Keyway oil seal brake New

Model

ECMA-EA1820SS

Product Name

Electronic Commutation Motor

Corresponding Servo Motor

ASD-A2-2023-L

ASD-A2-2023-M

ASD-A2-2023-U

ASD-A2-2023-E

Servo Type

AC Servo

Rated Voltage

220V

Encoder Type

absolute type

Motor Frame Size

180 mm

Type of Shaft Diameter and Oil Seal

Keyway(with fixed screw holes) with Brake with Oil Seal

Standard Shaft Diameter

S=35mm

Rated Power Output

2000W

Rated torque (N-m)*1

9.55

Max. torque (N-m)

28.65

Rated Speed

2000 rpm

Max. speed

3000 rpm

Rated current (A)

11.22 A

Max. instantaneous current (A)

33.66 A

Power rating (kW/s)

26.3

Rotor inertia  (× 10-4kg.m2)

34.68

Mechanical constant (ms)

1.62

Torque constant-KT (N-m/A)

0.85

Voltage constant-KE (mV/(r/min))

31.4

Armature resistance (Ohm)

0.119

Armature inductance (mH)

2.84

Electric constant (ms)

23.87

Insulation class

Class A (UL), Class B (CE)

Insulation resistance

> 100 MΩ?, DC 500 V

Insulation strength

1.8k Vac, 1 sec

Weight (kg)  (with brake)

17.5 Kg

Radial max. loading (N)

1176

Axial max. loading (N)

490

Power rating (kW/s) (with brake)

24.1

Rotor inertia  (× 10-4kg.m2) (with brake)

37.86

Mechanical constant (ms) (with brake)

1.77

Brake holding torque [Nt-m (min)] *2

25.0

Brake power consumption (at 20°C) [W]

20.4

Brake release time [ms (Max)]

10

Brake pull-in time [ms (Max)]

70

Vibration grade (μm)

15

Operating temperature

0~40  degree centigrade

Storage temperature

-10~80  degree centigrade

Operating humidity

20% to 90% RH (non-condensing)

Storage humidity

20% to 90% RH (non-condensing)

Vibration capacity

2.5G

IP Rating

IP65

Approvals

CE  UL
