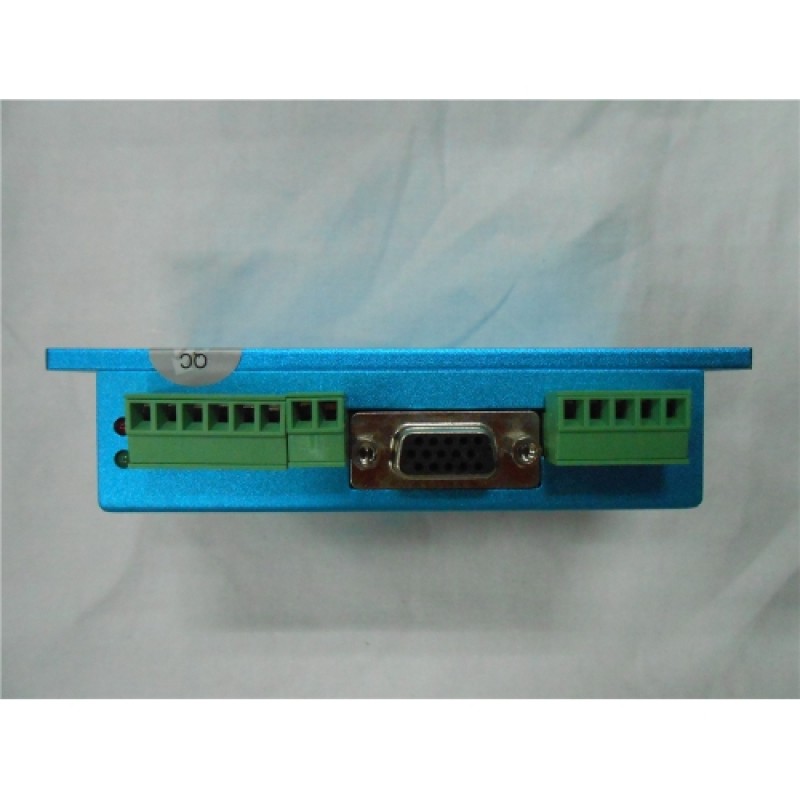

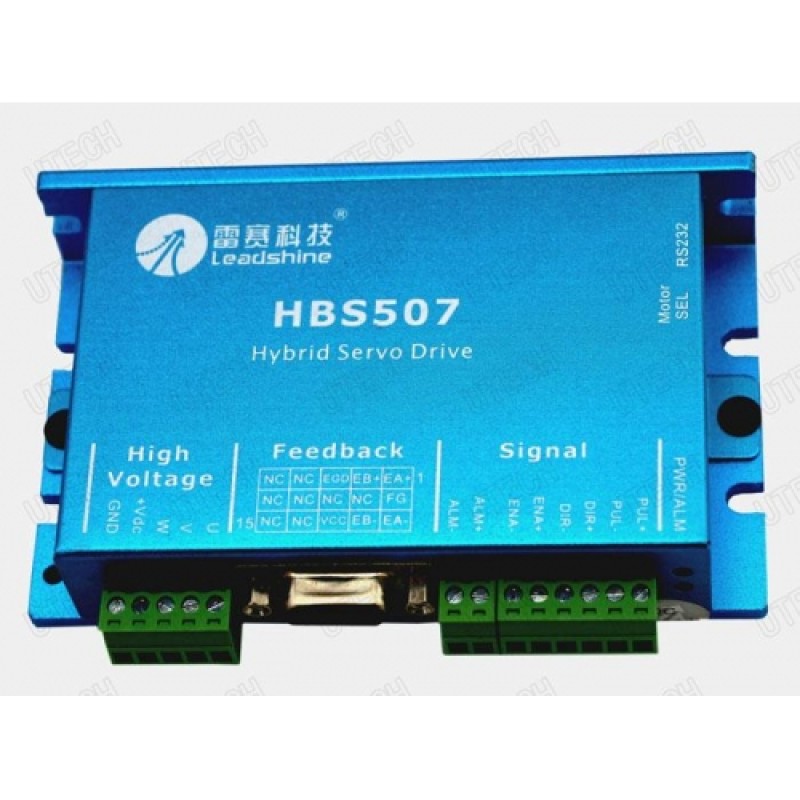

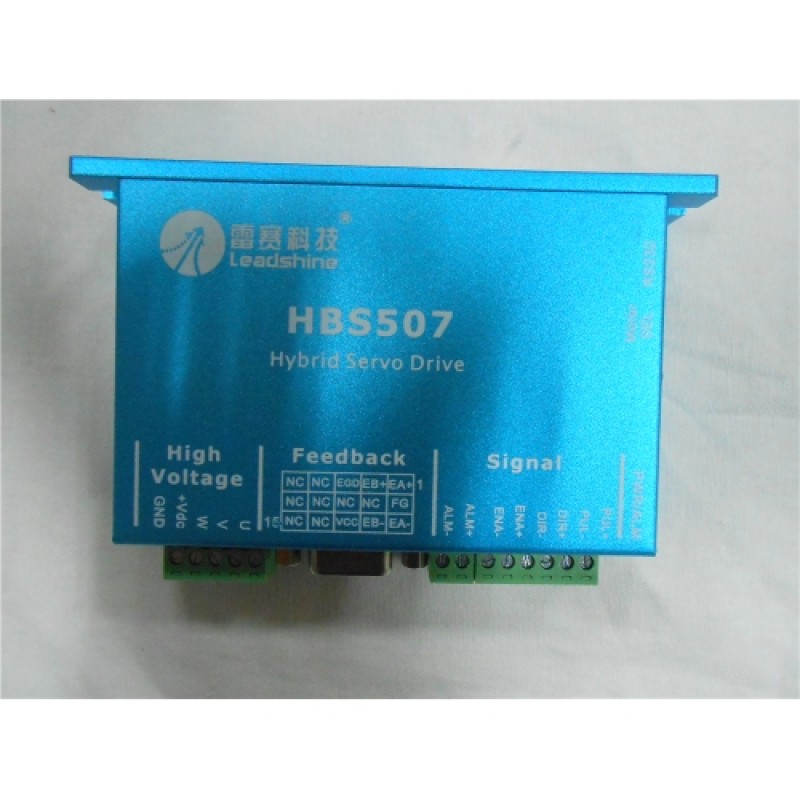

57mm NEMA23 Hybrid Servo Drive HBS507 18-50VDC 7A Leadshine New

DSP Closed Loop 57mm NEMA23 motor Hybrid Servo Drive HBS507 18-50VDC 7A Leadshine New

HBS507

leadshine company HBS series is based on ten years of research and development experience stepper and servo, the successful development of innovative simple servo drive products. Dedicated motor control using the latest DSP chip and vector closed-loop control technology, completely overcome the open loop stepper motor lost step problems, while significantly improved motor speed performance, reduce fever and reduce motor vibration motor, improve the speed and precision machining, reduce machine energy consumption. When the motor continuous overload, the drive will output an alarm signal in time, with the same reliability and AC servo system. HBS series adaptation motor mounting dimensions are fully compatible 57/86/110 series stepper motors, stepper drives programs to facilitate upgrading of traditional cost equivalent to only half of the AC servo system.

Feature:

Operating voltage range covers 24VDC ~ 70VDC, 24VAC ~ 220VAC;

Support pulse / direction or double-pulse control mode, you can receive differential and single-ended signal instruction, the signal level 5 ~ 24V compatible;

Opto-isolated inputs, anti-interference ability;

Will not lose steps to ensure that the motor precise positioning;

High-speed performance increase of about 30%, improve equipment operating speed;

With variable current control technology, electrical heating decreased by about 20 percent, saving power consumption;

Shorten the response time of the motor acceleration and deceleration;

When the motor stopped without oscillation;

Motor run more smoothly, more accurate;

Without gain adjustment, easier to use.

Applications

For a variety of small and medium sized automation equipment and instruments, such as: engraving machine, stripping machine, marking machine, cutting machine, laser machines, plotters, medical equipment, machine tools, automatic assembly equipment, electronic processing equipment. In user expectations low noise, high speed device applications particularly good effect.

Specifications

Size specification
