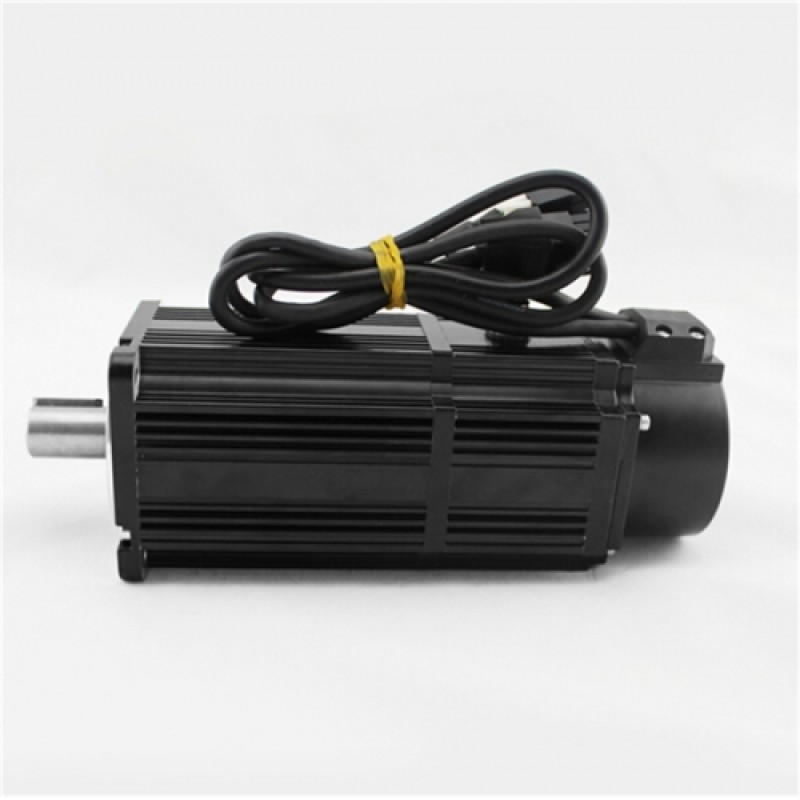

1PH 220V 80mm 3.5NM 750W 2500RPM 3A AC servo motor drive Kit 3M Cable LCMT-07L02NB-80M03520B+LCDB2-072002-LB822

motor type

LCMT-04L02-

80M01330

LCMT-07L02-

80M02430

LCMT-07M02-

80M03520

LCMT-10M02-

80M04025

rated power

0.4KW

0.75 KW

0.75 KW

1.0 KW

rated line voltage

220V

220 V

220 V

220 V

rated line current

2A

3 A

3 A

4.4 A

rated speed

3000rpm

3000 rpm

2000 rpm

2500 rpm

rated torque

1.27

2.39

3.5

4

N.Mpeak torque

3.8NM

7.1NM

10.5NM

12NM

peak current

6A

9A

9A

13.2A

V/1000r/min back EMF

40

48

71

56

? moment coefficient

0.64 N.M/A

0.8 N.M/A

1.17 N.M/A

0.9 N.M/A

Rotor inertia

1.05×10-4

1.82×10-4

2.63×10-4

2.97×10-4

between lines resistance

4.44 ohm

2.88 ohm

3.65 ohm

1.83 ohm

(between lines) inductance

7.93mH

6.4 mH

8.8 mH

4.72 mH

electrical meconstant

1.66Ms

2.22Ms

2.4Ms

2.58Ms

weight

1.78Kg

2.86 Kg

3.7 Kg

3.8 Kg

encoder line amount

2500ppr

motor insulation class

Class B

protection class

IP65

LCDA series

02

04

05

07

08

10

12

13

15

18

20

23

26

28

Power

phase/Voltage

single-phase 220VAC

single/three phase 220VAC

allowed voltage regulatiion

170~255VAC

Allowedfrequency regulation

50/60 Hz±5%

cooling way

natural cooling

fan cooling

encoder/feedback

2500ppr/10000pulse/rad

the primary loop control mode

SVPWM control

manipulation mode

manual/auto

retrogradation resistance

Built-in

Position control mode

Maximum input pulse frequency

Poor transport:500kpps open transport:200kpps

pulse instruction mode

pulse+symbol:A+B phase; CCW pulse +CW pulse

instruction control mode

external pulse control

instruction smooth mode

low pulse smoothing filter

electronic gear ratio

electronic gear N/M time N:1~3276/M:1:32767(1/127

torque limitation

parameter setting way

feed-forward compensation

parameter setting way

Speed control mode

Analogy Input

voltage range

0~10VDC

input resistance

20kΩ

time constant

2.2μs

Overload allowed rehearsal

200% rated output 8 s

instruction control mode

external analogy control/internal temporary control

instruction smooth mode

low pass and S curve smoothing filter

torque limitation

parameter setting mode

bandwidth

up to 250HZ

speed calibration ratio

external load rated change(0~100%)max 0.01%

power ±10% change max 0.01%

environment temperature(0~50 centigrade )max 0.01%

Torque control mode

Input

Servo start, abnormal reset ,switch gain clear pulse counting register emergency stop down or counterclockwise running limit is prohibited

Internal register control command, speed limit orders, location speed mixed mode command options, speed mixed mode command options, position torque mixed mode command options

Output

A/B/Z differential output(line drive)/Z phase open collector

Servo start preparation, servo, zero speed detection, speed, position arrived, the torque limit

Electromagnetic brake control of servo alarm output, output, complete

Protection

Over current, over voltage, under voltage, overheating, load, velocity error is too large, the position error is too large, detector is unusual, abnormal retrogradation, communication is unusual, abnormal memory

Communication interface

RS-232/RS485 RS422 ACSII RTU
