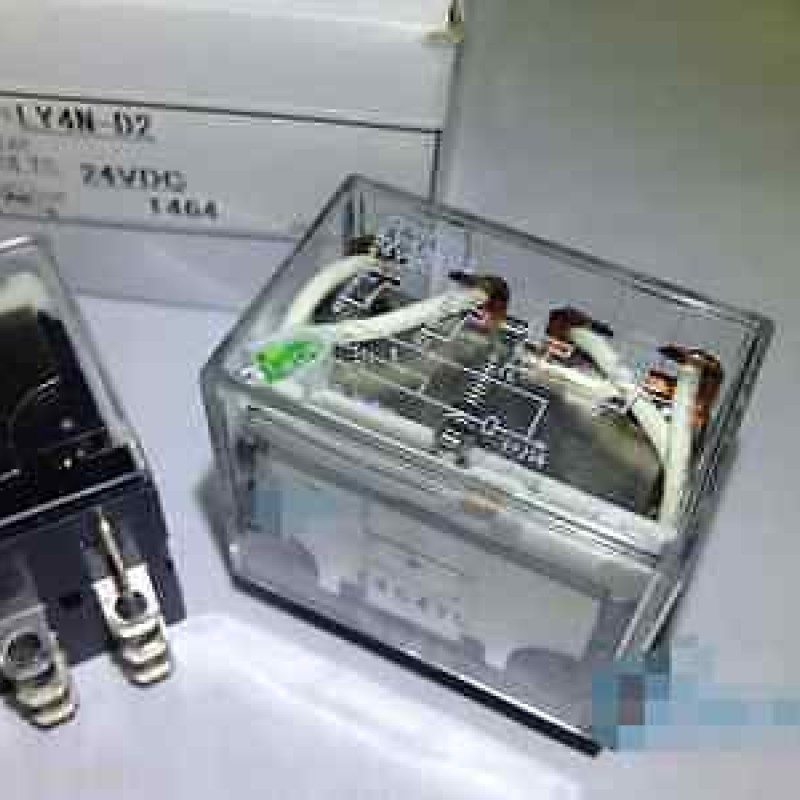

LY4N-D2 DC110V RELAY New

Ratings

Product classification

Monostable relays
Built-in LED indicator type

Coil ratings

24 VDC 69 mA

Coil resistance

350 Ohm

Operate voltage (Set voltage)

80% Max.

Release voltage (Reset voltage)

10% Min.

Max. voltage

110% (of rated voltage)

Power consumption (Single stable)

1.5 W

Operating indicator

LED indicator

Coil surge killer

Not equipped

Contact Type

4PDT

Contact method

Single

Contact material

Contact body material: Ag alloy
Contact finish: Nothing

Contact rated load

110 VAC 10 A (Resistive load (cos phi = 1))
110 VAC 7.5 A (Inductive load (cos phi = 0.4))
24 VDC 10 A (Resistive load)
24 VDC 5 A (Inductive load (L/R = 7 ms))

Maximum switching voltage

250 VAC (Resistive load (cos phi = 1))
250 VAC (Inductive load (cos phi = 0.4))
125 VDC (Resistive load)
125 VDC (Inductive load (L/R = 7 ms))

Maximum switching current

AC: 10 A (Resistive load (cos phi = 1))
AC: 10 A (Inductive load (cos phi = 0.4))
DC: 10 A (Resistive load)
DC: 10 A (Inductive load (L/R = 7 ms))

Maximum switching power

AC: 1100 VA (Resistive load (cos phi = 1))
AC: 825 VA (Inductive load (cos phi = 0.4))

Failure rate

100 mA at 5 VDC (failure level: P Reference value)

Ambient temperature

Operating: -25 to 40 CEL
Storage: -25 to 40 CEL
(with no icing or condensation)

Ambient humidity

Operating: 5 to 85% RH
Storage: 5 to 85% RH
(with no icing or condensation)

Characteristics

Contact resistance

Max. 50 mOhm, Measuring the voltage drop across the contacts by applying test voltage/current as 5 VDC 1 A

Operating time (set time)

25 ms Max.

Release time (Reset time)

25 ms Max.

Max.operating frequency (Mechanical)

18000 opn./h

Max.operating frequency (Erectrical)

1800 opn./h

Insulation resistance

Between coil and contacts: 100 MOhm Min. (at 500 VDC)
Between contacts of different polarity: 100 MOhm Min. (at 500 VDC)
Between contacts of same polarity: 100 MOhm Min. (at 500 VDC)

Dielectric strength

Between coil and contacts: 2000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)
Between contacts of different polarity: 2000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)
Between contacts of same polarity: 1000 VAC 50/60 Hz for 1 min (Leakage current 3 mA 50/60 Hz 1 min)

Vibration resistance (Destruction)

10 to 55 to 10 Hz 0.5-mm single amplitude (1.0-mm double amplitude) for 2 hours each in X, Y, and Z directions (No defect in appearance and construction after applying variable vibration in each directions for 2 hours.)

Vibration resistance (Malfunction)

10 to 55 to 10 Hz 0.5-mm single amplitude (1.0-mm double amplitude) in each direction

Shock resistance (Destruction)

1000 m/s**2 each direction 3 times (No defect in appearance and construction after applying shock in each directions 3 times.)

Shock resistance (Malfunction)

200 m/s**2 (Contacts must not open for 1 ms or longer after the relay is subjected to a shock in each direction 3 times.)

Endurance (Mechanical)

100000000 operations Min.

Endurance (Electrical)

200000 operations Min.

Protective structure

Closed type (cover)

Applicable standard (UL)

Standard No.: UL508
File No.: E41643

Applicable standard (CSA)

Standard No.: C22.2 No.0, No.14
File No.: LR31928

Applicable standard (TUV)

R50030064

Applicable standard (SEV)

98.5 50071.02

Applicable standard(Other)

Conformed standard 2: Electrical Appliance and Material Safety Law

Terminal structure

Plug-in

Weight

Approx. 70 g
