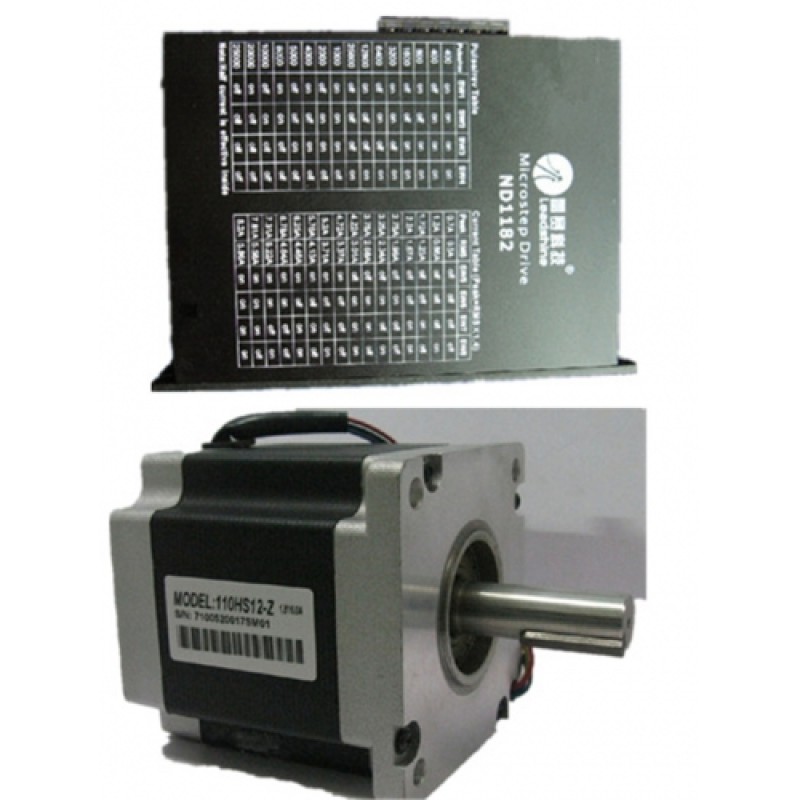

Leadshine NEMA42 110mm 1700oz-in 12N.M 70-150VAC 2phase Stepper motor Drive kits 110HS12-Z+ND1182 |
110HS12-Z+ND1182
Stepper Motor 110HS12-Z
General Specifications
Step Angle Accuracy | +5%(full step, no load) |
Temperature Rise | 80°CMax |
Ambient Temperature | -10°C -- +50°C |
Insulation Resistance | 100MΩmin.500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.06 Max.(450g-load) |
Shaft Axial Play | 0.08 max.(450g-load) |
Electric
Model No. | 110HS12-Z |
Step Angle | 1.8° |
Phase | 2 Phase |
Holding Torque | 12N.M 1700 oz-in |
NEME Size | NEME 42 |
Motor frame size | Frame 110 |
Current /phase | 6A |
# of leads | 4 |
Motor Weight | 6Kg |
Drive ND1182
ND1182 General Introduction
ND1182, newest produced by Leadshine Company, is a high microstepping drive with high-precision current technical design. It is quit a suitable adapter to all kinds of brand of 86-110 two phase mixed motor. Because of the advanced anti-voice controlling way on the drive, the vibration noise is vastly decreased when motor operates, which makes more stable and close to the servo motor. Compared to most microsteeping drives on the market, Leadshine stepping drive and motor’s calorific power have a degrease from 15% to 30%.
Electrical Specifications
| Series | Models | Current(A) | Voltage (V) | Microstepping | Motor adapter | Weight(kg) | External size (mm) | Controlling signal |
Two phase | ND | ND1182 | 0.7-8.2 | 70-150VAC | -- | 86,110 | -- | -- | Differential signal |
Applications
Suitable for big and mid-size automation equipments, such as, engraving machine, labeller, cutting machine, laser typesetter, graph plotter and handle device etc. It has a very good application effect on low-vibration, little-noise and high precision devices, which are user’s wanted.
110HS12-Z Dimension
ND1182 Dimension
Typical Connection
