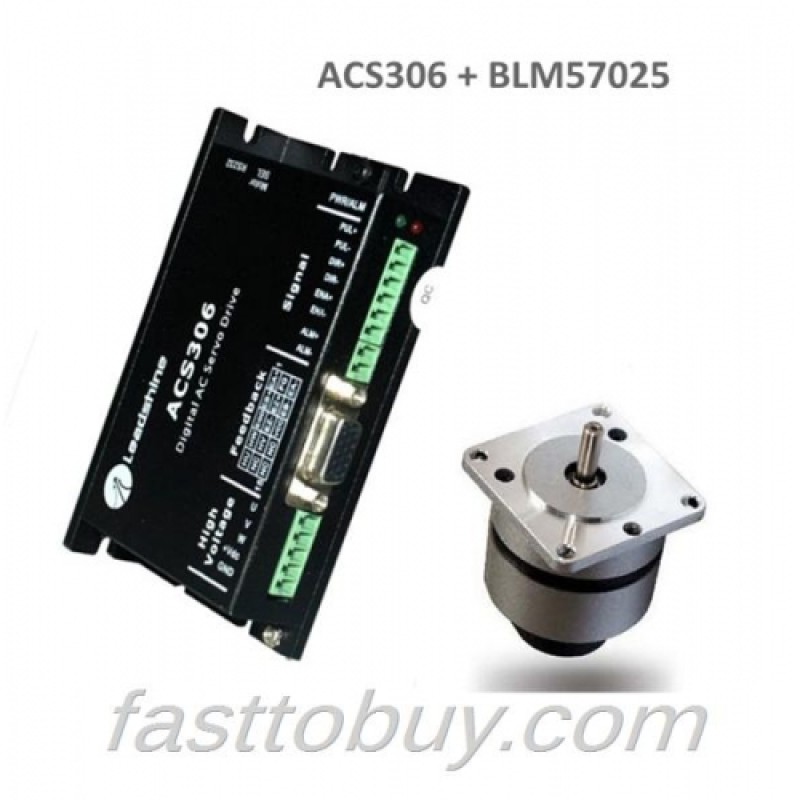

Leadshine 25W brushless DC servo set (drive ACS306 + motor BLM57025) New

PLCAGE: Leadshine Brushless Servo Drive ACS Series ACS306 DC18-30V Cont. 6A Peak 15A 150W for 10-150W Servo Motor New

Features:

*Advance DSP current control technology

*Step & Dir, or CW/CCW control

*High precision; smooth & quiet motor movement

*Input voltage: 20-30 VDC

*Continuous current: 6 A

*Peak current: 15A

*Capable of driving 10 - 180 W brushless servo motors

*Electronic gear rate from 1/255 to 255

*Built-in motion profile for servo tuning and testing

*Small size, surface-mount technology

Specifications:

Parameters

Min

Typical

Max

Unit

Peak output current

0

-

15

A

Continue output current

0

-

6

A

Supply voltage

+20

-

30

VDC

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

200

kHz

Isolation resistance

500





Current provided to encoder

-

-

100

mA

Matching motors:

Power

Models

25W

BLM57025

50W

BLM57050

90W

BLM57090

130W

BLM57130



PLCAGE: Leadshine Brushless Servo Motor BLM Series BLM57025 24VDC 25W 0.08N.M 3000 rpm New

 Features:

*Brushless construction

*Reliable industrial quality

*NEMA23 frame size, 24 VDC rated voltage, 25W rated power

*4000 CPR (1000-line) increamental encoder with A, B signals

*0.08 N-m (11.3 oz-in) rated torque / 0.24 N-m (34 oz-in) peak

*3000 RPM rated speed / 4000 RPM peak

*Standard cabling options for direct connection to the ACS series servo drives

Specifications:

Parameters

BLM57025

BLM57050

BLM57090

BLM57130

BLM57180

57BL180

Rated Voltage (VDC)

24

24

36

36

36

36

Rated Power (W)

25

50

90

130

180

180

Rated Torque (N.M)

0.08

0.16

0.29

0.41

0.57

0.43

Peak Torque (N.M)

0.24

0.48

0.87

1.23

1.71

1.27

Rated Speed (RPM)

3000

3000

3000

3000

3000

4000

Rated Current (A)

1.6

3

3.45

5.3

6.7

7

Peak Current (A)

4.8

9

10.35

15.9

20

20.5

Torque Const. (N.M/A)

0.05

0.053

0.084

0.078

0.085

0.063

Back EMF Const. (V/RPM)

5.2

5.55

8.8

8.2

8.9

6.6

Resistance (ohm)

1.73

0.88

1.35

0.63

0.9

0.35

Inductance (mH)

3.36

2.2

4.1

2.17

2

1

Inertia (kgm2 x 10-4 )

30

75

119

173

230

230

Motor Length L (mm)

70

80

100

120

140

140

Mass (Kg)

0.25

0.5

0.75

1

1.25

1.25

Matching motors:

Models

Matching Drives

BLM57025

ACS306, ACS606

BLM57050

ACS306, ACS606

BLM57090

ACS306, ACS606

BLM57130

ACS306, ACS606

BLM57180

ACS606

57BL180

ACS606
