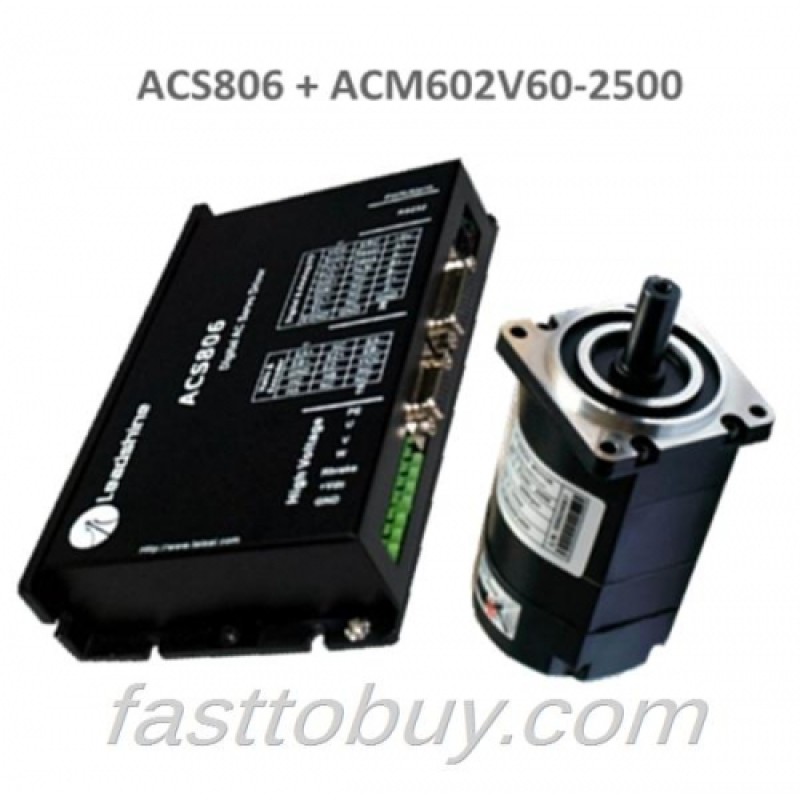

Leadshine 200W brushless AC servo set (drive ACS806 + motor ACM602V60-2500) New

PLCAGE: Leadshine Brushless Servo Drive ACS Series ACS806 DC18-80V Cont. 6A Peak 18A 400W for 50-400W Servo Motor New

Features:

*Advance DSP current control technology

*Step & direction, or CW/CCW control

*High precision; smooth and quiet motor movement

*Input voltage: 18 - 80 VDC

*Continuous current: 6 A

*Peak current: 18A

*Capable of driving 20 - 400 W brushless servo motors

*Electronic gear rate from 1/255 to 255

*Built-in motion profile for testing with trapezoidal velocity profile

*Opto-isolated

*Encoder output with signals A, B, and Z (indexing)

*Limit switch input

*Fault, and in position (at preset target position) outputs

*Small size, surface-mount technology

Specifications:

Parameters

Min

Typical

Max

Unit

Peak output current

0

-

18

A

Continue output current

0

-

6

A

Supply voltage

+18

-

+80

VDC

Logic signal current

7

10

16

mA

Pulse input frequency

0

-

600

kHz

Isolation resistance

500





MΩ

Current provided to encoder

-

-

100

mA

Matching motors:

Power

Models

100W

ACM601V36

200W

ACM602V36, ACM602V36A, ACM602V60, ACM602V60A

400W

ACM604, ACM604V60



PLCAGE: Leadshine Brushless Servo Motor ACM Series ACM602V60-2500 60V 200W 0.64N.M 3000rpm 60mm New

Features:

*Brushless construction, reliable industrial quality

*High torque density, and optimized for quick response

*60mm frame size, 60 VDC rated voltage, 200W rated power

*10000 CPR (2500-line) increamental encoder with A, B, indexing signals

*0.64 N-m (90 oz-in) rated torque / 1.91 N-m (270 oz-in) peak

*3000 RPM rated speed / 4000 RPM peak

*Standard cabling options for direct connection to the ACS series servo drives

Specifications:

Model

ACM601V36

ACM602V36(A)*

ACM602V60(A)*

ACM604V60

ACM602V36-30

ACM604V60-30

Rated Voltage (V)

36

36

60

60

36

36

Rated Power (W)

100

200

200

400

200

400

Rated Torque (N.M)

0.318

0.64

0.64

1.27

0.64

1.27

Peak Torque (N.M)

0.95

1.91

1.91

3.82

1.92

3.81

Rated Speed (RPM)

3000

3000

3000

3000

3000

3000

Peak Speed (RPM)

4000

4000

4000

4000

4000

4000

Rated Current (A)

4

7.6

4.7

8.4

7.6

8.4

Peak Current (A)

11

22

14

25

22

25

Torque Const. (N.M/A)

0.0866

0.0918

0.15

0.161

0.084

0.151

Back EMF Const. (V/RPM)

3.03 x 10-3

3.213 x 10-3

5.24 x 10-3

5.54 x 10-3

3.2 x 10-3

5.5 x 10-3

Resistance (ohm)

0.38

0.16

0.38

0.19

0.39

0.28

Inductance (mH)

0.91

0.41

1.07

0.59

0.33

0.34

Inertia (kgm2 x 10-4 )

0.1032

0.176(0.178)

0.176(0.178)

0.3549

0.32

0.46

Allowable radial load (N)

78.6

245

245

245

245

245

Allowable axial load (N)

38.2

68

68

74

68

74

Flange Size (mm)

60

60

60

60

60

60

Mounting Diameter (mm)

70

70

70

70

70

70

Shaft Diamter (mm)

8

11(14)

11(14)

14

11

14

Motor Length (mm)

86.7

100.7

100.7

127.8

123

143

Pole Pairs (-)

4

4

4

4

4

4

Encoder Res. (counts/rev.)

2500**

2500**

2500**

2500**

1000**

1000**

Mass (Kg)

0.701

0.966

0.984

1.463

0.95

1.48

Ambient Temperature (°C)

0~40

0~40

0~40

0~40

0~40

0~40

* The ACM602V36(A) means two models. The ACM602V36 and ACM602V36A which is different from the former in inertia and shaft diameter.

** Standard. Other configurations available.

Matching drives:

Model

Matching Drives

100 W AC Servo Motors

ACS806

200 W AC Servo Motors

ACS806

400 W AC Servo Motors

ACS806, EL5-D400
