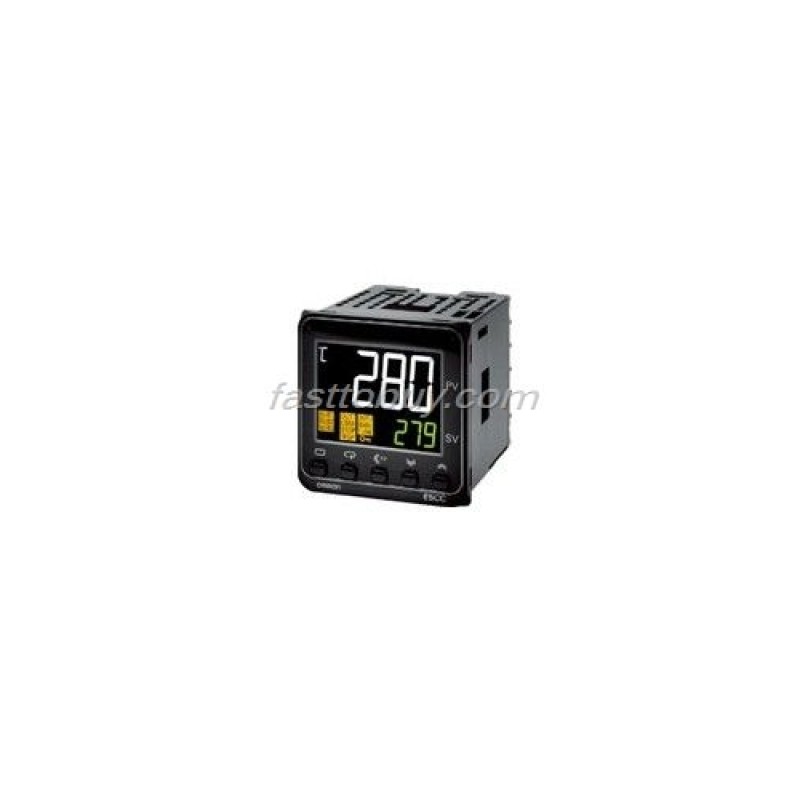

E5CC-RX2ASM-800 Thermostat NEW

Indication accuracy

Thermocouple: (± 0.3% of indicated value or ± 1°C, whichever is greater) ± 1 digit max. *1

(at the ambient temperature of

Platinum resistance thermometer: (± 0.2% of indicated value or ± 0.8°C, whichever is greater) ±

23°C)

1 digit

Analog input: ± 0.2% FS ± 1 digit max.

CT input: ± 5% FS ± 1 digit max.

Transfer output accuracy

± 0.3% FS max.

Remote SP Input Type

± 0.2% FS ± 1 digit max.

Influence of temperature *2

Thermocouple input (R, S, B, W, PL II): (± 1% of PV or ± 10°C, whichever is greater) ± 1 digit max.

Other thermocouple input: (± 1% of PV or ± 4°C, whichever is greater) ± 1 digit max. *3

Platinum resistance thermometer: (± 1% of PV or ± 2°C, whichever is greater) ± 1 digit max.

Analog input: (± 1%FS) ± 1 digit max.

CT input: (± 5% FS) ± 1 digit max.

Influence of voltage *2

Remote SP input: (± 1% FS) ± 1 digit max.

Input sampling period

50 ms

Hysteresis

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) *4

Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)

Proportional band (P)

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) *4

Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Integral time (I)

0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Derivative time (D)

0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Proportional band (P) for cooling

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) *4

Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Integral time (I) for cooling

0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Derivative time (D) for cooling

0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Control period

0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s)

Manual reset value

0.0 to 100.0% (in units of 0.1%)

Alarm setting range

-1999 to 9999 (decimal point position depends on input type)

Affect of signal source resistance

Thermocouple: 0.1°C/Ω max. (100 Ωmax.)

Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)

Insulation resistance

20 MΩ min. (at 500 VDC)

Dielectric strength

2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge)

Vibration

resistance

10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions

Malfunction

10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions

Destruction

Shock resistance

100 m/s2, 3 times each in X, Y, and Z directions

Malfunction

300 m/s2, 3 times each in X, Y, and Z directions

Weight

Controller: Approx. 120 g, Mounting Bracket: Approx. 10 g

Degree of protection

Front panel: IP66, Rear case: IP20, Terminals: IP00

Memory protection

Non-volatile memory (number of writes: 1,000,000 times)

Setup Tool

CX-Thermo version 4.4 or higher

Setup Tool port

E5CC top panel: An E58-CIFQ2 USB-Serial Conversion Cable is used to connect a USB port on the

computer with the port on the top panel of the E5CC. *6

Standards

Approved standards

UL 61010-1, CSA C22.2 No. 611010-1 (evaluated by UL)

Conformed standards

EN 61010-1 (IEC 61010-1): Pollution level 2, overcurrent category II, Lloyd's standards *7

EMC

EMI: EN61326

Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A

Noise Terminal Voltage: EN 55011 Group 1, class A

EMS: EN 61326

ESD Immunity: EN 61000-4-2

Electromagnetic Field Immunity: EN 61000-4-3

Burst Noise Immunity: EN 61000-4-4

Conducted Disturbance Immunity: EN 61000-4-6

Surge Immunity: EN 61000-4-5

Voltage Dip/Interrupting Immunity: EN 61000-4-11
