DSP Closed-Loop Step Motor Drive Kit 20-70VAC/30-100VDC 2PH 6A 4.5NM NEMA34 86mm Cutting Machine
Package:
1. motor LC86H280
2. drive LCDA86H
3. 3M Encoder cable& Power Cable
Application:
It is suitable all kinds of Small and medium-sized automation equipment and instrumentation.
Such as carving machine, wire-stripping machine, marking machine, cutting machine, laser machine, plotting instrument, medical equipment, CNC, etc. This is efficient for the equipment with Low noise and high-speed.
Motor Electrical Specifications
Model | Phase | Holding torque | Phase current | Motor Length | rotational inertia | Weight kg | Encoder ppr |
LC86H260 | 2 | 3Nm | 6A | 60mm | 1.1g.m2 | 2 | 1000 |
LC86H268 | 2 | 3.6Nm | 6A | 68mm | 1.4 g.m2 | 2.2 | 1000 |
LC86H280 | 2 | 4.5NM | 6A | 80mm | 1.8 g.m2 | 2.5 | 1000 |
LC86H298 | 2 | 7.2NM | 6A | 98mm | 2.8 g.m2 | 3.3 | 1000 |
LC86H2120 | 2 | 8.5NM | 6A | 120mm | 3.6 g.m2 | 4 | 1000 |
LC86H2128 | 2 | 10.5NM | 7.5A | 128mm | 4.2 g.m2 | 4.5 | 1000 |
LC86H2160 | 2 | 12nm | 7.5A | 160mm | 5.4 g.m2 | 5.4 | 1000 |
Drive functional characteristics
Model | LCDA86H |
working voltage | 20-70VAC/30~100VDC |
peak current | 6A |
control mode | 32 bits DSP closed-loop vector control technology |
Pulse limit frequency | Defaulting 200 KHZ/500 KHZ (optional) |
defensive function | Over-current, over-voltage and tracking error out-of-tolerance alarm |
incoming signal | Pulses, direction and enable signal |
outcoming signal | In position signal and fault output signal |
motor encoder feedback | AB differential input |
subdivisions | The default 4000/rev, through debugging software can install arbitrarily subdivisions (200-51200) |
storage temperature | -20-80 degree centigrade |
Ambient Temp | 0-50 degree centigrade |
Ambient thumidity | 40-90RH |
parameter setting
| Static current, subdivisions, effective along, fault signal output signal level, position loop and current loop and parameter settings. |

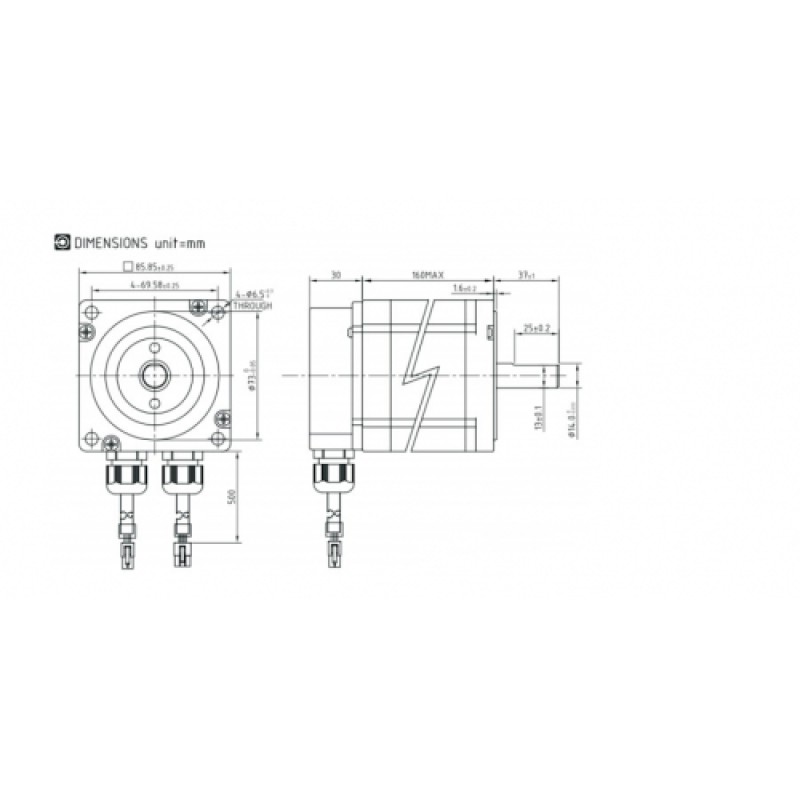

Motor Mechanical Dimensions
