- Stock: In Stock

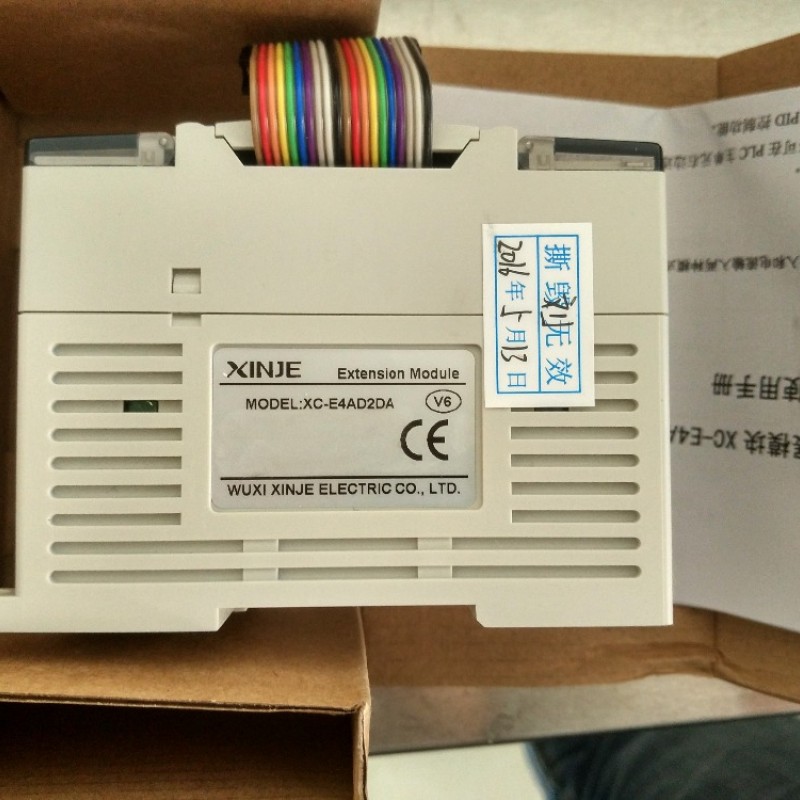

- Model: XC-E4AD2DA
- Weight: 1.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Features:
4 channels 14 bits precision analog input and 2 channels 12 bits precision analog output
4 channels: voltage 0~5V,0~10V; current 0~20mA, 4~20mA input are optional, 2 channels: voltage 0~5V,0~10V; current 0~20mA, 4~20mA output are optional
Can be set as special function module for XC series, up to 7 machines can be connected.
4 channels A/D with PID adjust function
Specifications:
Item | Analog input(AD) | Analog output(DA) | ||
| Voltage input | Current input | Voltage output | Current output |
Range of analog input | DC0~5V, 0~10V | DC0~20mA, 4~20mA | - | |
Range of max input | DC±15V | DC0~40mA | - | |
Range of analog output | - | DC0~5V, 0~10V (External load resistance 2KΩ~1MΩ) | DC0~20m, 4~20mA (External load resistance is less than 500Ω) | |
Range of digital input | - | 12 bits(0~4095) | ||
Range of digital output | 14 bits(0~16383) | - | ||
Resolution | 1/16383(14Bit); Converted data are stored in PLC in hex form (14Bit) | 1/4095(12Bit); Converted data are stored in PLC in hex form (12Bit) | ||
PID output value | 0~K4095 | - | ||
Integrated accuracy | 1% | |||
Convert speed | 20ms/1 channel | 3ms/1 channel | ||
Power for analog | DC24V±10%,100mA | |||
Installation | Fixed with M3 screws or installed directly in DIN46277(35mm width) guide rail | |||
External dimension | 63mm×102mm×73.3mm | |||
