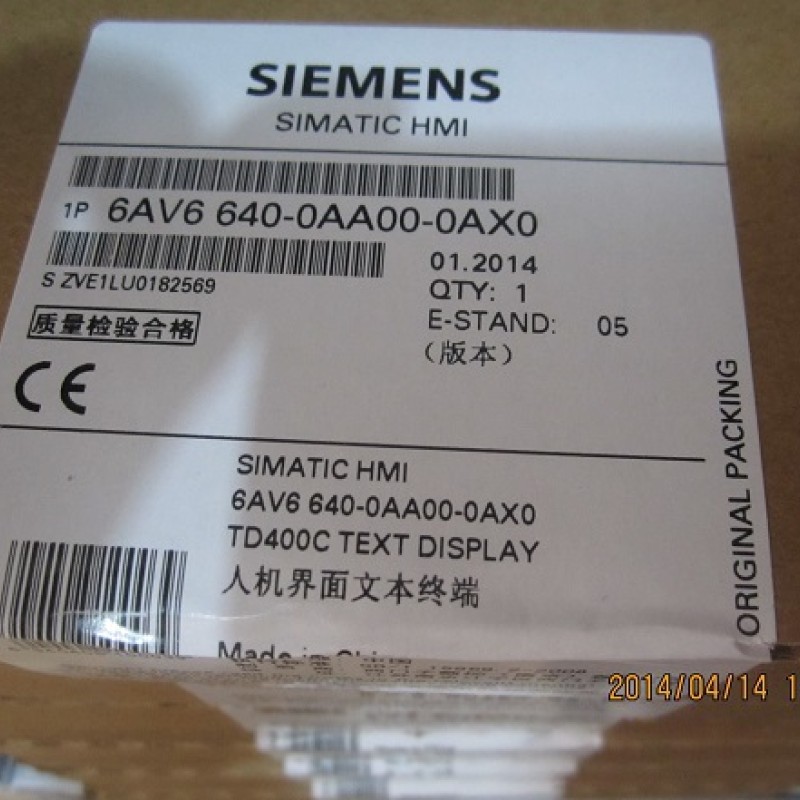

TD400C 6AV6640-0AA00-0AX0 Siemens Text Display 3.7" New in box

Siemens Text Display TD400C 6AV6640-0AA00-0AX0 3.7"
Product Description:
 The TD 400C is an especially flexible HMI device for the SIMATIC S7-200. The display can either be configured with four lines and 24 characters per line or with two lines and 16 characters per line. The 15 configurable keys provide tactile feedback, additional visual or acoustical feedback can be set up. The design of the device surface can be individually arranged around the permanently positioned keys.

top of page
Area of application
 The TD 400C is suitable for simple to more complex operating tasks with the SIMATIC S7-200 PLC; longer alarm texts and a limited number of functions can also be configured.
top of page
Benefits
 1. User-friendly with selectable character size and a display backlight suitable for adverse lighting conditions
 2. Safe operation thanks to tactile feedback from the keys and additional visual or acoustical feedback
 3. Device surface can be individually arranged (e.g., in the design of the machine)
 4. Can be integrated into a PROFIBUS network
top of page
Design and functions
 The TD 400C is simply connected to the PPI interface of the S7-200 via the supplied connection cable. A separate power supply is not necessary. It is also possible to connect multiple TDs to an S7-200.
If the distance between TD 400C and S7-200 is greater than 2.5 m, an AC adapter for the power supply is required. Instead of the connection cable, PROFIBUS bus lines are then provided.
The configuration data of the TD 400C is stored in the CPU of the S7-200. The alarm texts and configuration parameters are created with the programming software STEP 7-Micro/WIN V4 SP 6 (TD 400 Wizard). Additional parameterization software is not needed.
top of page
Technical data
Display 3.7 inch STN-display
Resolution 192 x 64 pixels
Control elements 15 programmable function keys
User memory Depending on the S7-200 CPU
Interfaces 1 x RS 485
Degree of protection IP 65 front when mounted  IP 20 rear
Installation cutout 163,5 x 93,5 mm (W x H)
Front panel 174 x 102 mm (W x H)
Device depth 31 mm
Engineering software STEP 7 Micro/Win V4 SP 6 TD 400 Wizard
