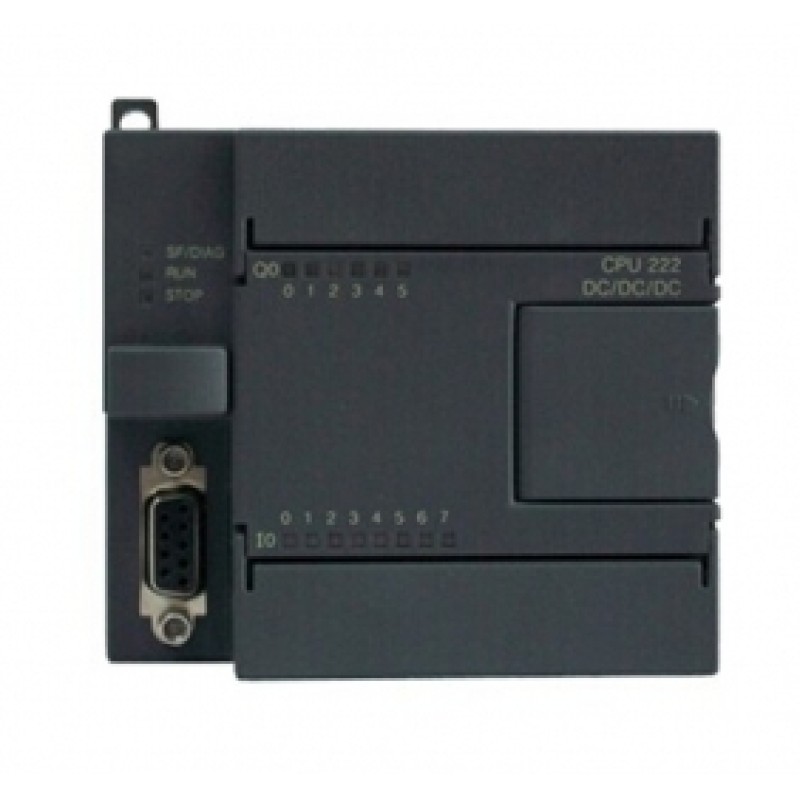

PLC CPU 222 DC/DC/DC 24VDC 8DI 6DO transistor Compatible Siemens S7-200 6ES7 212-1AB23-0XB0 One year warranty

CPU221-DT

CPU221-AR

CPU222-DT

CPU222-AR

Compact CPU, main memory

4 KB, power supply 24 V DC,6 DI/4 DO integrated

Compact CPU, main memory
4 KB, power supply 100 V to230 V AC, 6 DI/4 DO integrated,
relay outputs

Compact CPU, expandable,
main memory 4 KB, power supply24 V DC, 8 DI/6 DO integrated

Compact CPU, expandable,
main memory 4 KB, power supply 100 V to 230 V AC, 8 DI/6 DO
integrated, relay outputs

Digital outputs

4; Transistor

4; Relay

6; Transistor

6; Relay

Short-circuit protection of the
output

No; to be provided externally

No; to be provided externally

No; to be provided externally

No; to be provided externally

Parallel switching of 2 outputs for increased power

Yes

No

Yes

No

Relay outputs
Number of operating cycles

1E7; mechanically 10million,at rated load
voltage100,000

1E7; mechanically 10million,at rated load
voltage100,000

Analog inputs

1; Analog potentiometer;
resolution 8 bit

1; Analog potentiometer;
resolution 8 bit

1; Analog potentiometer;
resolution 8 bit

1; Analog potentiometer;
resolution 8 bit

Environmental conditions

For further environmental conditions, see "Automation System CNS7-200, System Manual"

Counter frequency (counter)
max.

30 kHz

30 kHz

30 kHz

30 kHz

Integrated Functions

4; High-speed counters (30 kHz each), 32 bits (incl. sign), can be used as up/down counters or for connecting 2 incremental encoders with 2 pulse trains offset by 90° (max. 20 kHz (A/B counters)); parameterizable enable and reset input; interrupt facilities(incl. call of subroutine with any content) when the setpoint is reached; reversal in counting direction, etc.
