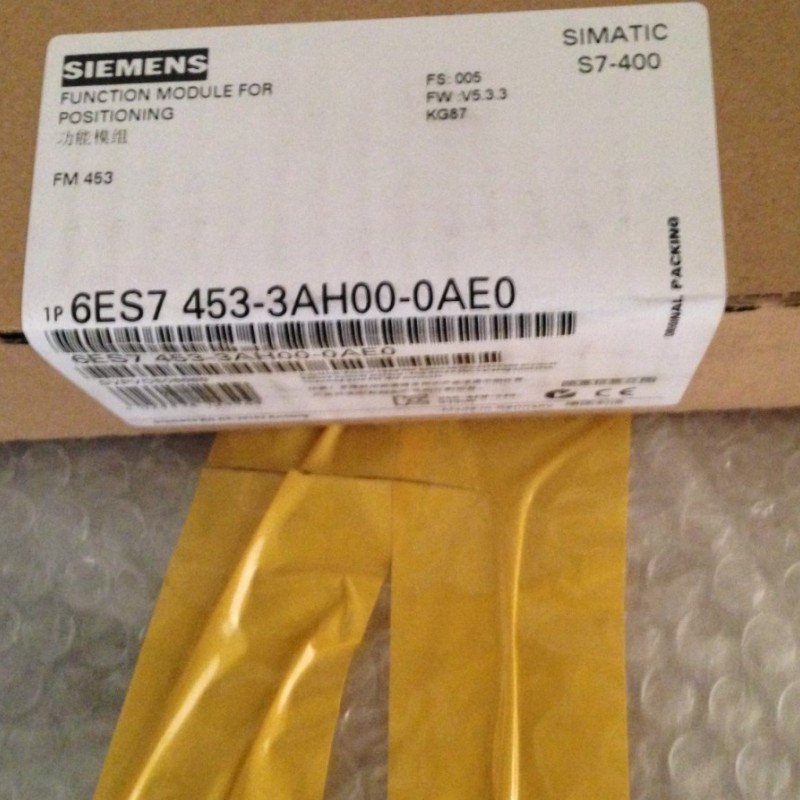

6ES7453-3AH00-0AE0 SIEMENS Positioning Module New

Supply voltage

Load voltage L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Input current

from load voltage L+ (without load), max.

400 mA; typ. 330 mA

Power losses

Power loss, typ.

10.7 W

Power loss, max.

16.2 W

Digital inputs

Number/binary inputs

16

Input characteristic curve acc. to IEC 61131, Type 2

Yes

Input voltage

Rated value, DC

24 V

for signal "0"

-3 to +5 V

for signal "1"

13 to 30 V

Input current

for signal "1", typ.

7 mA

Cable length

Cable length, shielded, max.

1000 m

Cable length unshielded, max.

600 m

Digital outputs

Number/binary outputs

32

Functionality/short-circuit strength

Yes; Electronic

Limitation of inductive shutdown voltage to

L+ (-1.5 V)

Lamp load, max.

5 W

Controlling a digital input

Yes

Load resistance range

lower limit

240 Ω

upper limit

4 kΩ

Output voltage

for signal "1", min.

L+ (-2.5 V)

Output current

for signal "1" rated value

0.1 A

for signal "1" permissible range for 0 to 60 °C, min.

5 mA

for signal "1" permissible range for 0 to 60 °C, max.

150 mA

for signal "0" residual current, max.

0.5 mA

Parallel switching of 2 outputs

for logic links

Yes

Switching frequency

with resistive load, max.

100 Hz

with inductive load, max.

0.5 Hz

on lamp load, max.

100 Hz

Cable length

Cable length, shielded, max.

1000 m

Cable length unshielded, max.

600 m

Analog inputs

Number of analog inputs

16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection

permissible input voltage for voltage input (destruction limit), max.

20 V

permissible input current for current input (destruction limit), max.

40 mA

Input ranges

Voltage

Yes

Current

Yes

Thermocouple

Yes

Resistance thermometer

Yes

Input ranges (rated values), voltages

0 to +10 V

Yes

Input resistance (0 to 10 V)

100 kΩ

-1.75 to +11.75 V

Yes

Input resistance (-1.75 to +11.75 V)

100 kΩ

-80 mV to +80 mV

Yes

Input resistance (-80 mV to +80 mV)

10 MΩ

Input ranges (rated values), currents

0 to 20 mA

Yes

Input resistance (0 to 20 mA)

50 Ω

0 to 23.5 mA

Yes

Input resistance (0 to 23.5 mA)

50 Ω

-3.5 to +23.5 mA

Yes

Input resistance (-3.5 to +23.5 mA)

50 Ω

4 to 20 mA

Yes

Input resistance (4 to 20 mA)

50 Ω

Input ranges (rated values), thermoelements

Type B

Yes

Input resistance (Type B)

10 MΩ

Type J

Yes

Input resistance (type J)

10 MΩ

Type K

Yes

Input resistance (Type K)

10 MΩ

Type R

Yes

Input resistance (Type R)

10 MΩ

Type S

Yes

Input resistance (Type S)

10 MΩ

Input ranges (rated values), resistance thermometers

Pt 100

Yes

Input resistance (Pt 100)

10 MΩ

Thermocouple (TC)

for thermocouples

Type B, J, K, R, S

[nicht versorgt: TAK_ABT261_001_000]

internal temperature compensation

Yes; Parameterizable

external temperature compensation with Pt100

Yes; Parameterizable

Resistance thermometer (RTD)

Characteristic linearization

for resistance thermometer

Pt100 (standard)

Characteristic linearization

Parameterizable

Yes

Cable length

Cable length, shielded, max.

200 m; 50 m at 80 mV and thermocouples

Analog value creation

Measurement principle

integrating

Integrations and conversion time/ resolution per channel

Resolution with overrange (bit including sign), max.

14 bit; 12 or 14 bit, parameterizable

Conversion time (per channel)

16.67 ms; for 12 bit: 16 2/3 ms for 60 Hz, 20 ms for 50 Hz; for 14 bit: 100 ms for 50 and 60 Hz

Settling time

for resistive load

0.1 ms

for capacitive load

3.3 ms

for inductive load

0.5 ms

Encoder

Connection of signal encoders

for voltage measurement

Yes

for current measurement as 4-wire transducer

Yes

Connectable encoders

2-wire BEROS

Yes

permissible quiescent current (2-wire BEROS), max.

1.5 mA

Errors/accuracies

Linearity error (relative to input area)

+/- 0,05 %

Temperature error (relative to input area)

+/- 0,005 %/K

Operational limit in overall temperature range

Voltage, relative to input area

+/-0.6 to +/-1%

Current, relative to input area

+/-0.6 to +/-1%

Resistance-type thermometer, relative to input area

+/-0.6 to +/-1%

Basic error limit (operational limit at 25 °C)

Voltage, relative to input area

+/-0.4 to +/-0.6 %

Current, relative to input area

+/-0.4 to +/-0.6 %

Resistance-type thermometer, relative to input area

+/-0.4 to +/-0.6 %

Interference voltage suppression for f = n x (fl +/- 1%), fl = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.

40 dB

common mode voltage (USS < 2.5 V) , min.

70 dB

Interrupts/diagnostics/status information

Substitute values connectable

Yes; Parameterizable

Control technology

Number of closed-loop controllers

16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection

Galvanic isolation

Galvanic isolation controller

between the channels

No

between the channels and the backplane bus

Yes; Optocoupler

Permissible potential difference

between inputs and MANA (UCM)

2.5 V DC

between M internally and the inputs

75 VDC / 60 VAC

Isolation

Isolation checked with

500 V DC

Connection method

required front connector

2x 48-pin

Dimensions

Width

50 mm

Height

290 mm

Depth

210 mm

Weight

Weight, approx.

1400 g
