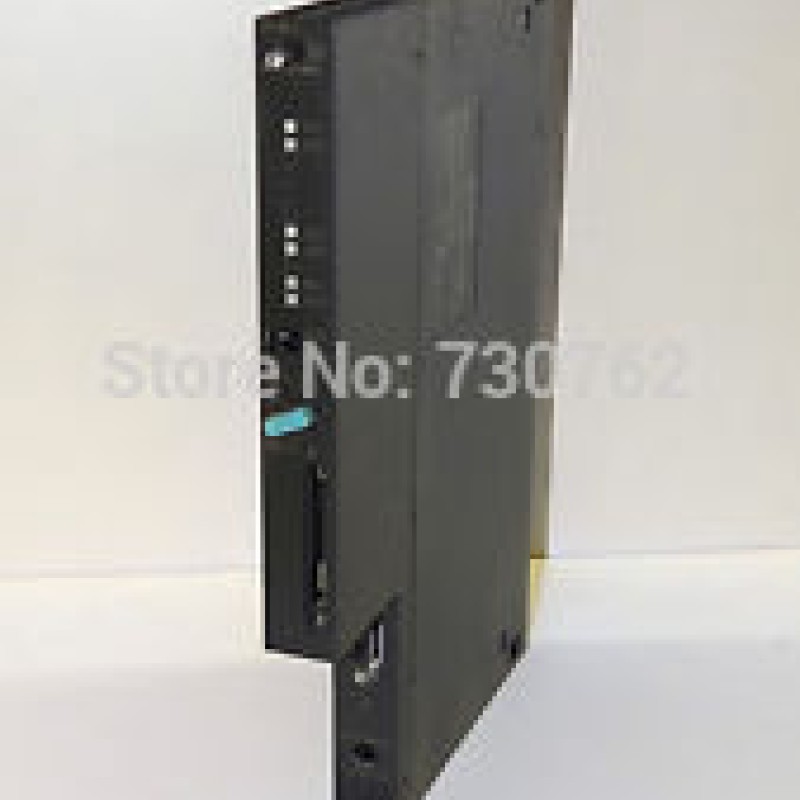

6ES7452-1AH00-0AE0 SIEMENS Function Module New

Supply voltage

24 V DC

Yes

Input current

Current consumption, max.

500 mA

Encoder supply

5 V encoder supply

5 V

Yes

Output current, max.

300 mA

Cable length, max.

32 m

24 V encoder supply

24 V

Yes

Output current, max.

300 mA

Cable length, max.

100 m

Digital inputs

Number/binary inputs

11

Functions

Reference point switch, flying actual value setting/length measurement, brake release, enable track output no. 3 to 10

Input voltage

Rated value, DC

24 V

for signal "0"

-28.8 to +5 V

for signal "1"

11 to 28.8 V

Input current

for signal "0", max. (permissible quiescent current)

2 mA

for 2-wire sensor

for signal "1", typ.

9 mA

Digital outputs

Number/binary outputs

16

Functions

Cam track

Functionality/short-circuit strength

Yes

Output voltage

Rated value (DC)

24 V

for signal "1", min.

UP - 0.8 V

Output current

for signal "1" permissible range for 0 to 55 °C, max.

600 mA; with UPmax

for signal "0" residual current, max.

0.5 mA

Encoder

Connectable encoders

Incremental encoder (symmetrical)

Yes

Incremental encoder (asymmetrical)

Yes

Absolute encoder (SSI)

Yes

2-wire sensor

Yes

Encoder signals, incremental encoder (symmetrical)

Trace mark signals

A, notA, B, notB

Zero mark signal

N, notN

Input signal

5 V difference signal (phys. RS 422)

Input frequency, max.

1 MHz

Encoder signals, incremental encoder (asymmetrical)

Trace mark signals

A, B

Zero mark signal

N

Input voltage

24 V

Input frequency, max.

50 kHz; 50 kHz for 25 m cable length; 25 kHz for 100 m cable length

Encoder signals, absolute encoder (SSI)

Input signal

5 V difference signal (phys. RS 422)

Data signal

DATA, notDATA

Clock signal

CL, notCL

Telegram length

13 or 25 bit serial

Clock frequency, max.

1 MHz

Gray code

1

Cable length, shielded, max.

300 m; at max. 125 kHz

Galvanic isolation

Galvanic isolation digital inputs

Galvanic isolation digital inputs

No

Galvanic isolation digital outputs

Galvanic isolation digital outputs

No

Degree and class of protection

IP20

Yes

Ambient conditions

Operating temperature

Min.

0 °C

max.

55 °C

Storage/transport temperature

Min.

-40 °C

max.

70 °C

Relative humidity

Humidity class F

Yes

Connection method

required front connector

1x 48-pin

Dimensions

Width

25 mm

Height

290 mm

Depth

210 mm

Weight

Weight, approx.

650 g
