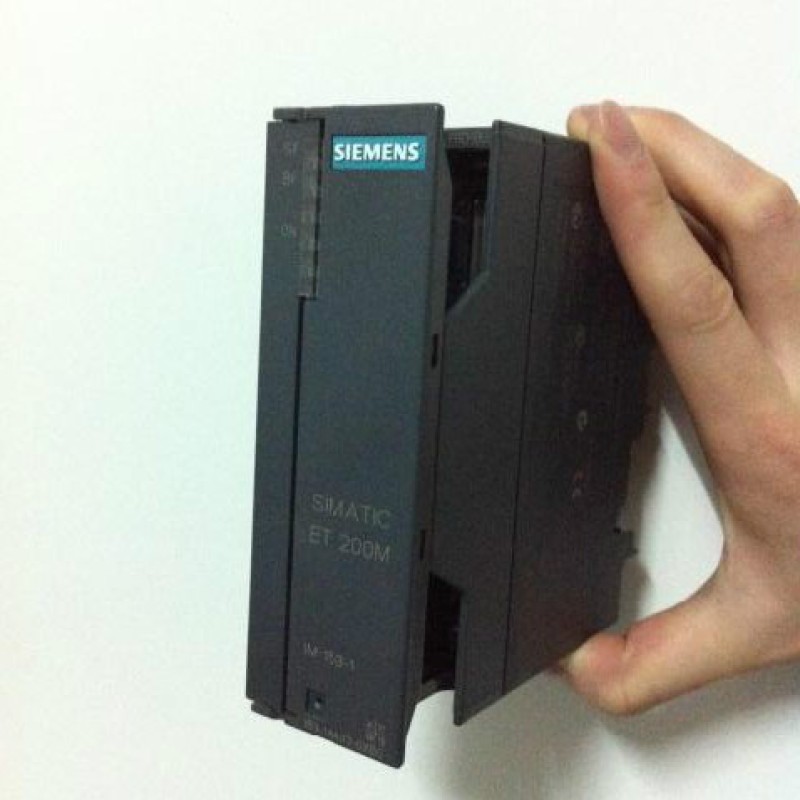

6ES7153-1AA03-0XB0 SIEMENS INTERFACE MODULE New

General information

Vendor identification (VendorID)

801Dh

Supply voltage

24 V DC

Yes

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

permissible range (ripple included), lower limit (DC)

20.4 V

permissible range (ripple included), upper limit (DC)

28.8 V

External protection for supply cables (recommendation)

not necessary

Mains buffering

Mains/voltage failure stored energy time

5 ms

Input current

Current consumption, max.

350 mA; at 24 V DC

Rated value at 24 V DC

625 mA

Inrush current, typ.

2.5 A

I²t

0.1 A²·s

Output voltage

Rated value, 5 V DC

Yes

Output current

for backplane bus (5 V DC), max.

1 A

Power losses

Power loss, typ.

3 W

Address area

Addressing volume

Outputs

128 byte

Inputs

128 byte

Hardware configuration

Number of modules per DP slave interface, max.

8

Interfaces

Interface physics, RS 485

Yes

Interface physics, FOC

No

PROFIBUS DP

Node addresses

1 to 125 permitted

Automatic detection of transmission speed

Yes

PROFIBUS DP, output current, max.

90 mA

Transmission procedure

RS 485

Transmission rate, max.

12 Mbit/s

SYNC capability

Yes

FREECE capability

Yes

Direct data exchange (slave-to-slave communication)

Yes; Sender

PROFIBUS DP

9-pin sub D socket

1st interface

DP slave

GSD file

(for DPV1) SIEM801D.GSD; SI01801D.GSG

Automatic baud rate search

Yes

Communication functions

Bus protocol/transmission protocol

PROFIBUS DP to EN 50170

Isolation

Isolation checked with

Isolation voltage 500 V

Degree and class of protection

IP20

Yes

Ambient conditions

Operating temperature

Min.

0 °C

max.

60 °C

Air pressure

Operating altitude above sea level, max.

3000 m

Dimensions

Width

40 mm

Height

125 mm

Depth

117 mm

Weight

Weight, approx.

360 g
