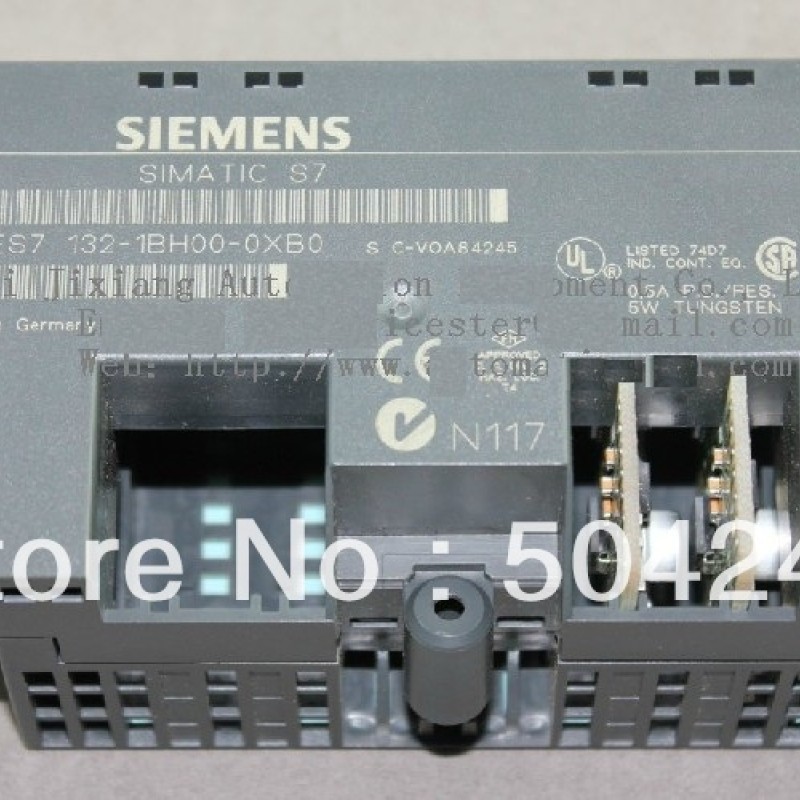

6ES7132-1BH00-0XB0 SIEMENS ELECTRONIC MODULE FOR ET 200L New

General information

Vendor identification (VendorID)

0016h

Supply voltage

24 V DC

Yes

Reverse polarity protection

Yes

Mains buffering

Mains buffering, min.

20 ms

Load voltage 2L+

Rated value (DC)

24 V; 1L+, 2L+, 3L+

Input current

from load voltage L1 (without load), max.

50 mA; Per load group (L1+ or L2+ / L3+)

from supply voltage L+, max.

70 mA; L4+ / L5+

Power losses

Power loss, typ.

5 W

Hardware configuration

Rack

Required terminal block

TB 16L

Digital outputs

Number/binary outputs

16

Functionality/short-circuit strength

Yes; Electronic

Response threshold, typ.

0.7 A

Limitation of inductive shutdown voltage to

Typ. (L1+ or L2+ / L3+) -55 V

Lamp load, max.

5 W

Controlling a digital input

Yes

Load resistance range

lower limit

41 Ω

upper limit

28000 Ω

Output voltage

Rated value (DC)

24 V

for signal "1", min.

Ua - 3 V

Output current

for signal "1" rated value

0.5 A

for signal "1" permissible range for 0 to 60 °C, max.

0.5 A

for signal "0" residual current, max.

1 mA

Output delay with resistive load

0 to

50 ms

1 to

200 ms

Parallel switching of 2 outputs

for increased power

No

for redundant control of a load

Yes; only outputs of the same group

Switching frequency

with resistive load, max.

100 Hz

with inductive load, max.

0.5 Hz

on lamp load, max.

8 Hz

Aggregate current of outputs (per group)

all mounting positions

up to 60 °C, max.

4 A

all other mounting positions

up to 40 °C, max.

2 A

Cable length

Cable length, shielded, max.

1000 m

Cable length unshielded, max.

600 m

Interfaces

PROFIBUS DP

Transmission rate, max.

1.5 Mbit/s

SYNC capability

Yes

Direct data exchange (slave-to-slave communication)

Yes; Transmitter (for digital outputs and hybrid modules ET 200L: not for L-SC or IM-SC)

Communication functions

Bus protocol/transmission protocol

PROFIBUS DP

Interrupts/diagnostics/status information

Alarms

Alarms

No

Diagnostic messages

Diagnostic functions

Yes

Diagnostics indication LED

Bus fault BF (red)

Yes

Status indicator digital output (green)

Yes

Status indicator digital input (green)

Yes

Monitoring 24 V voltage supply ON (green)

Yes

Galvanic isolation

between PROFIBUS DP and all other circuit components

Yes

Galvanic isolation digital outputs

between the channels

No

between the channels and PROFIBUS DP

Yes; Optocoupler

Isolation

Isolation checked with

500 V DC

Degree and class of protection

IP20

Yes

Ambient conditions

Operating temperature

horizontal installation, min.

0 °C

horizontal installation, max.

60 °C; 40°C for other mountings

Air pressure

permissible range, min.

795 hPa

permissible range, max.

1080 hPa

Relative humidity

Operation, min.

5 %

Operation, max.

95 %; RH class 2 in accordance with IEC 1131-2

Vibrations

Operation, checked according to IEC 60068-2-6

Yes; IEC 68, Part 2-6; 10 to 57 Hz; (constant amplitude 0.075 mm); 57 to 150 Hz; (constant acceleration 1 g)

Shock test

checked according to IEC 60068-2-27

Yes; IEC 68, Part 2-27; half-sine, 15 g, 11 ms

Connection method

Inputs/outputs

Screw-type and spring-loaded terminals, permanent wiring; standard: 2-wire connection, optional: 3 and 4-wire connection

Dimensions

Width

145 mm

Height

60 mm

Depth

60.5 mm

Weight

Weight, approx.

130 g
