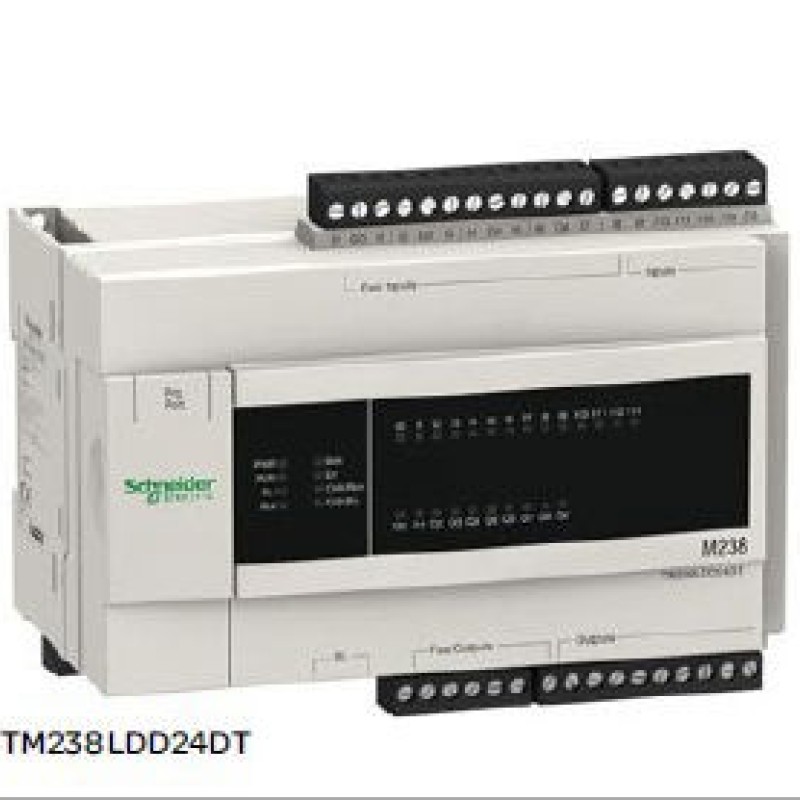

TM238LDD24DT M238 PLC 14DI 10DO New

Range of product

Modicon M238 logic controller

Product or component type

Compact base

Discrete I/O number

24

Discrete input number

6  input  EN/IEC 61131-2 type 1
8  fast input  EN/IEC 61131-2 type 1

Discrete input voltage

24 V

Discrete input voltage type

DC

Discrete output number

4  fast output
6  output

Discrete output voltage

24 V DC

Number of I/O expansion module

7

[Us] rated supply voltage

24 V DC

Memory description

Internal RAM 512 kB

Data backed up

Variables of type retain and retain persistent (internal battery) 3 days ,   22 h ,10 yr
Variables of type retain and retain persistent (optional battery lithium thionyl chloride (TSXPLP01)) 1 year

Mounting support

35 mm symmetrical DIN rail
Panel

Discrete input logic

Positive logic (sink)  fast input
Sink or source (positive/negative)  input

Number of common point

1  input
1  fast output
2  output
4  fast input

Sensor power supply

19,2...30 V DC

Voltage state1 guaranteed

≥ 15 V  input/fast input

Current state 1 guaranteed

≥ 2 mA  input/fast input

Voltage state 0 guaranteed

≤ 5 V  input/fast input

Current state 0 guaranteed

≤ 1,5 mA  input/fast input

Discrete input current

8 mA  fast input
10,4 mA  input

Input impedance

2,3 kOhm  input
3 kOhm  fast input

Response time

0.25 ms  fast output
3 ms  input
300 ns  fast input
< 1 ms  output

Configurable filtering time

0,004 ms  fast input
0,4 ms  fast input
1 ms  fast input
2 ms  fast input
4 ms  fast input

Anti bounce filtering

0 ms configurable  input/fast input
1.5 ms configurable  input/fast input
4 ms configurable  input/fast input
12 ms configurable  input/fast input

Input frequency

≤ 100 kHz  fast input (normal mode)
≤ 100 kHz  fast input (counter mode)
≤ 100 kHz  input

Cable length

≤ 10 m  fast output (PWM or PTO mode)
≤ 10 m , shielded cable  fast input (counter mode)
≤ 30 m , shielded cable  fast output (normal mode)
≤ 30 m  output
≤ 30 m  fast input (normal mode)
≤ 30 m  input

Isolation between channels and internal logic

500 V DC

Isolation between channels

500 V for group of 2 fast inputs
500 V for output and fast output
None input

Discrete output logic

Positive logic (source)

Output voltage limits

19.2...30 V

Discrete output current

20...500 mA  output
≤ 100 mA  fast output (PTO mode)
≤ 100 mA  fast output (PWM mode)
≤ 500 mA  fast output (normal mode)

Output frequency

≤ 100 kHz  fast output (PTO mode)
≤ 100 kHz  output
≤ 20 kHz  fast output (PWM mode)

Absolute accuracy error

0.01  fast output (PTO mode)
1 % of full scale  cyclic ratio 20...80%  fast output (PWM mode)

Leakage current

0,05 mA  output
≤ 2 mA  fast output

[Ures] residual voltage

≤ 2 V  output and fast output

Tungsten load

≤ 3 W  output and fast output

Short-circuit protection

With ,  output and fast output

Overvoltage protection

With ,  output and fast output

Overload protection

With ,  output and fast output

Input/output number

≤ 136 , removable screw terminal block with I/O expansion module
≤ 192 , spring terminal block with I/O expansion module
≤ 248 , HE-10 connector with I/O expansion module

Supply voltage limits

20,4...28,8 V

Inrush current

≤ 35 A

Power consumption in W

≤ 17,2 W

Insulation resistance

> 10 MOhm at 500 V, between I/O and earth terminals

Exact time for 1 Kinstruction

70 % Boolean + 30 % fixed arithmetic : 3 ms

Execution time per instruction

Boolean : 0,971 µs
Arithmetic DINT double-word : 0,506 µs  +, -, x operations
Arithmetic DINT double-word : 0,459 µs  LD and ST
Arithmetic INT word : 0,439 µs  +, -, x operations
Arithmetic INT word : 0,42 µs  LD and ST
Arithmetic REAL floating : 5,111 µs  +, -, x operations
Arithmetic REAL floating : 7,25 µs  by operation
Arithmetic REAL floating : 0,648 µs  LD and ST

Exct time for event task

Arithmetic DINT double-word : 0,95 ms
Arithmetic INT word : ≥ 0,75 ms
Arithmetic REAL floating : ≤ 1,75 ms

System overhead

0,15 ms  master task (PWM, frequency meter)
0,15 ms  master task (simple counting)
0,2 ms  master task (PTO)
0,35 ms  master task (advanced counting)
0,9 ms  master task (I/O)

Input output assignment

Reading/writing I/O on base
Reading/writing I/O on extension modules

Application structure

1 configurable freewheeling/cyclic master task
2 configurable freewheeling/cyclic/event auxiliary tasks
4 interrupt tasks
32 levels of priority between tasks

Realtime clock

With , : 10 s/month  25 °C

Integrated connection type

Isolated serial link female RJ45 Modbus master/slave RTU/ASCII, character mode or SoMachine-Network (RS232/RS485), 1.2...115.2 kbit/s (115.2 kbit/s by default)

Supply

Serial link supply , 5 V  200 mA

Positioning functions

PWM/PTO 2 100 kHz

Counting input number

8 100 kHz , 32 bits

Complementary function

PID
Event processing

Marking

CE

Local signalling

1 LED , PWR
1 LED , : RUN
1 LED , : Batt
1 LED , : module error (ERR)
1 LED , : SL1
1 LED per channel , : I/O state

Electrical connection

1 connector mini B USB 2.0 for a programming terminal
1 removable screw terminal block for connecting the 24 V DC power supply
1 removable screw terminal block (10 terminals) for connecting the 4 preactuators (fast output)
1 removable screw terminal block (12 terminals) for connecting the sensors (fast inputs)
1 removable screw terminal block (6 terminals) for connecting the 6 preactuators (output)
1 removable screw terminal block (7 terminals) for connecting the sensors (inputs)

Product weight

0,56 kg
