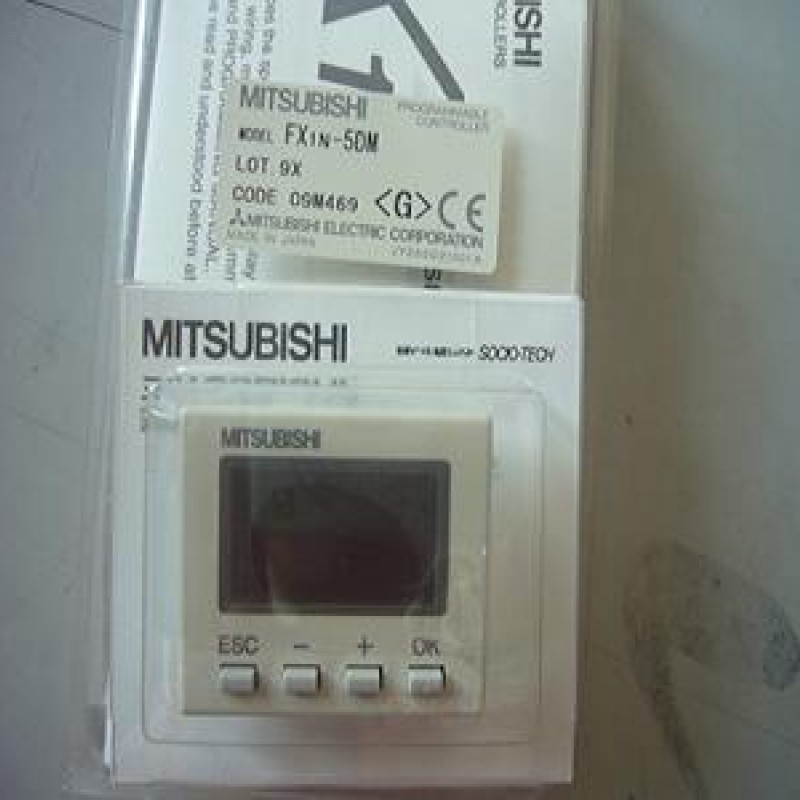

FX1N-5DM Mit PLC Micro Display Module Used instead of digital switches and 7-segment display New

Function

Description

Clock function

Display

Displays current time of clock function (built in FX1S/FX1NSeries).

Setting

Allows to set time (year, month, day, hour and minute).

Device monitor function

Bit device monitor

Displays ON/OFF status of X, Y, M and S.

Word device (16-bit) monitor

Displays current and set values of T and C and current value of D.

Word device (32-bit) monitor

Displays current and set values of 32-bit C and current value of D.

Buffer memory monitor function

Displays buffer memory of special units and special blocks (offered only in FX1NSeries).

Error display function

Displays error code and error occurrence step No. when a PLC error has occurred.

Forced set/reset function

Forces ON and OFF bit devices Y, M and S.

T/C reset function

Clears current value of T and C (current value: 0, contact: OFF).

Data change function

Current value change

Change current value of T, C and D

Set value change

Change set value of T and C.

Protect function

Enables full use of all operator functions, enables only monitor function or enables only clock time display function

Specified device monitor function

Allows to specify device type and device No. to be displayed in 5DM.

Error display enable/disable function

Enables or disables error display function (operator function).

Automatic backlight OFF function

Allows to set automatic backlight OFF time (initial value: 10 min).

Operation key status recognition

function

Recognizes ON/OFF status of four operation keys.
