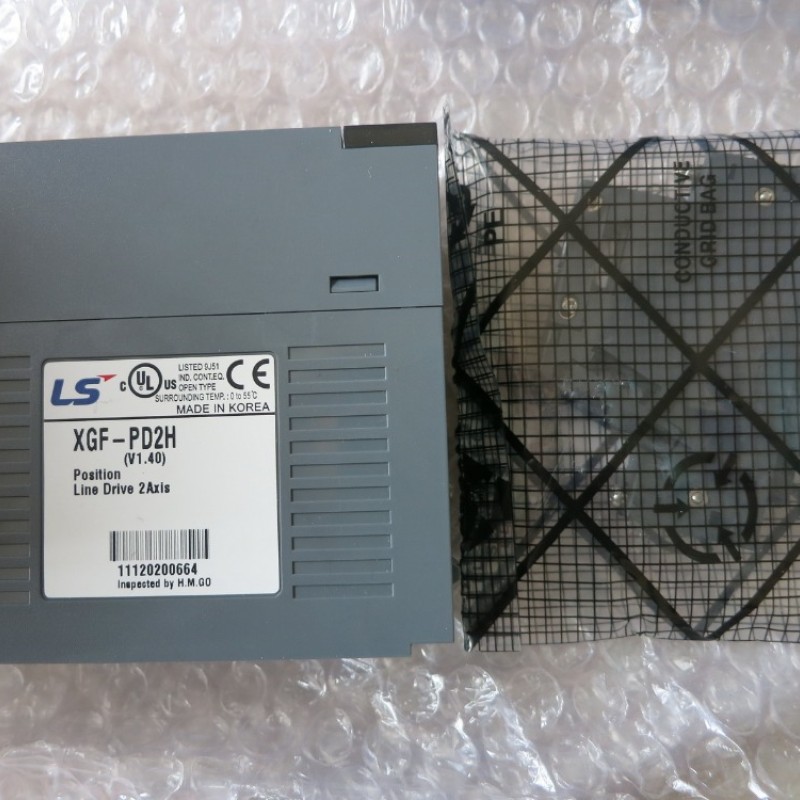

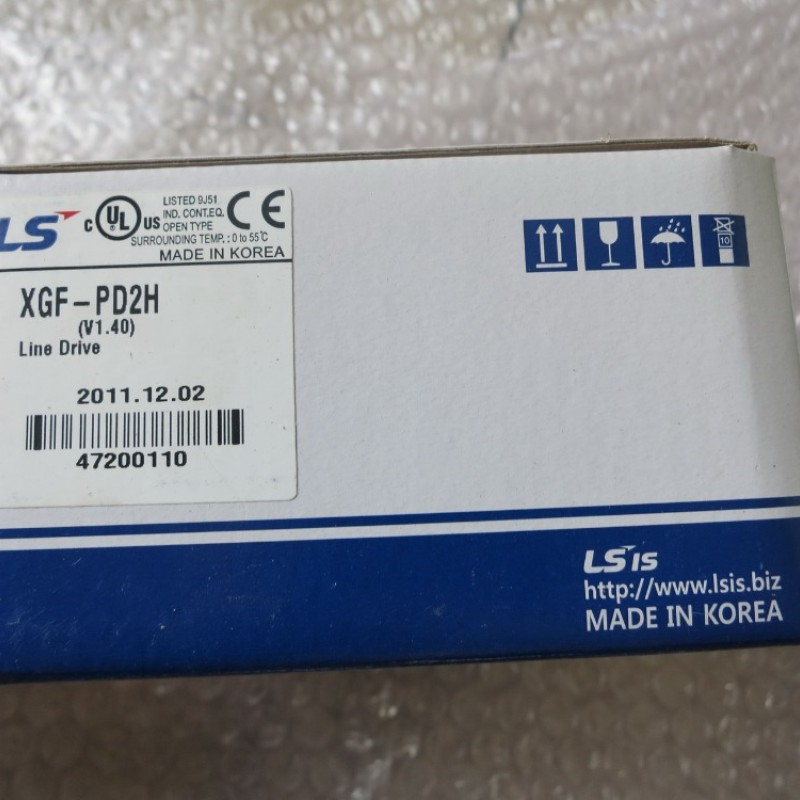

XGF-PD2H LS(LG) PLC XGT Series 2 Axis 600mA Positioning Module Original Brand New

Item

XGF-PO1H

XGF-PD1H

XGF-PO2H

XGF-PD2H

XGF-PO3H

XGF-PD3H

XGF-PO4H

XGF-PD4H

Number of axis

1 axis

2 axis

3 axis

4 axis

Interpolation

-

Circular, linear, ellipse

Circular, linear, helical, ellipse

Control method

Position control, speed control, speed/position control, position/speed control, FEED

Positioning data

Each axis has 400 data items (Operation step number 1~400). It is available to set with XG-PM or programming.

Configuration Tool

XG-PM (Connected with USB or RS-232C Port of CPU module)

Data backup

FRAM(Parameter, Operation data), Flash memory (CAM Data), No battery

Pulse output

XGF-POxH: Open collector, XGF-PDxH: linedriver

Positioning

Positioning method

Absolute / Incremental

Position

address

range

mm

-214,748,364.8~214,748,364.7(um)

inch

-21,474.83648 ~21,474.83647

degree

-21,474.83648 ~21,474.83647

pulse

-2,147,483,648 ~2,147,483,647

Position

address

speed

mm

0.01 ~20,000,000.00(mm/min)

inch

0.001 ~2,000,000.000(inch/min)

degree

0.001 ~2,000,000.000(degree/min)

pulse

1~500,000(pulse/sec):Open collector, 1 ~4,000,000(pulse/sec): linedriver

RPM

0.1 ~100,000.0(RPM)

Accel/Decel pattern

Trapezoidal & S-curve acceleration/deceleration

Accel/Decel time

0~2,147,483,647ms

Max. output pulse

Open collector: 500kpps, linedriver: 4Mpps

Max. distance

Open collector: 5m, linedriver: 10m

Max. encoder input

500kpps

Error display

LED

Size of cable

AWG #24

Occupied points of I/O

64 points (Fixed type), 16 points (Variable type)

Connection connector

40Pin

80Pin

Current consumption (mA)

XGF-PO1H:400mA

XGF-PO2H:410mA

XGF-PO3H:420mA

XGF-PO4H:430mA

XGF-PD1H:520mA

XGF-PD2H:600mA

XGF-PD3H:850mA

XGF-PD4H:890mA

Weight (kg)

120g

130g
