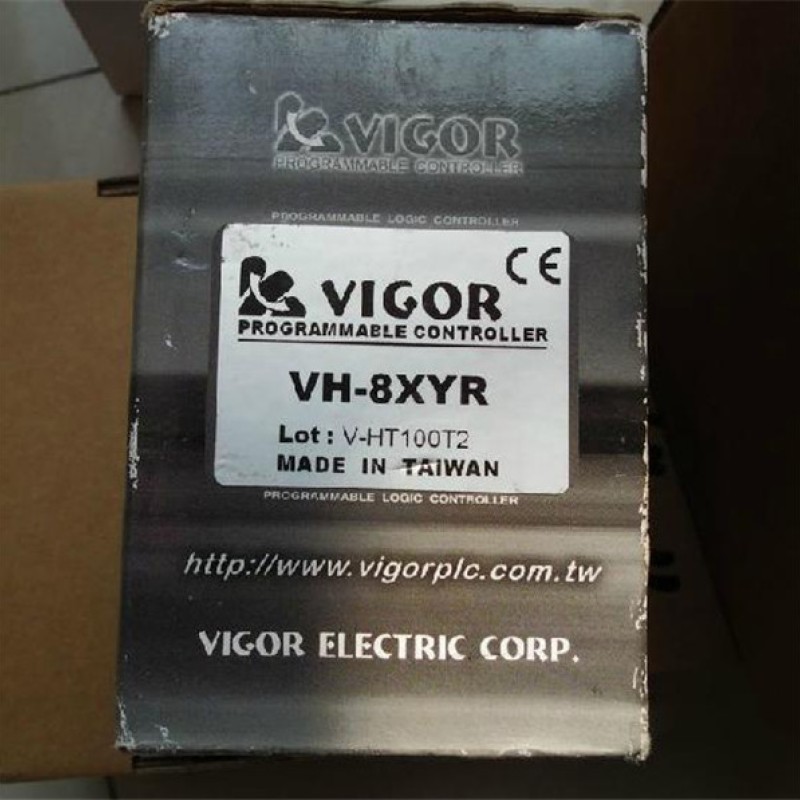

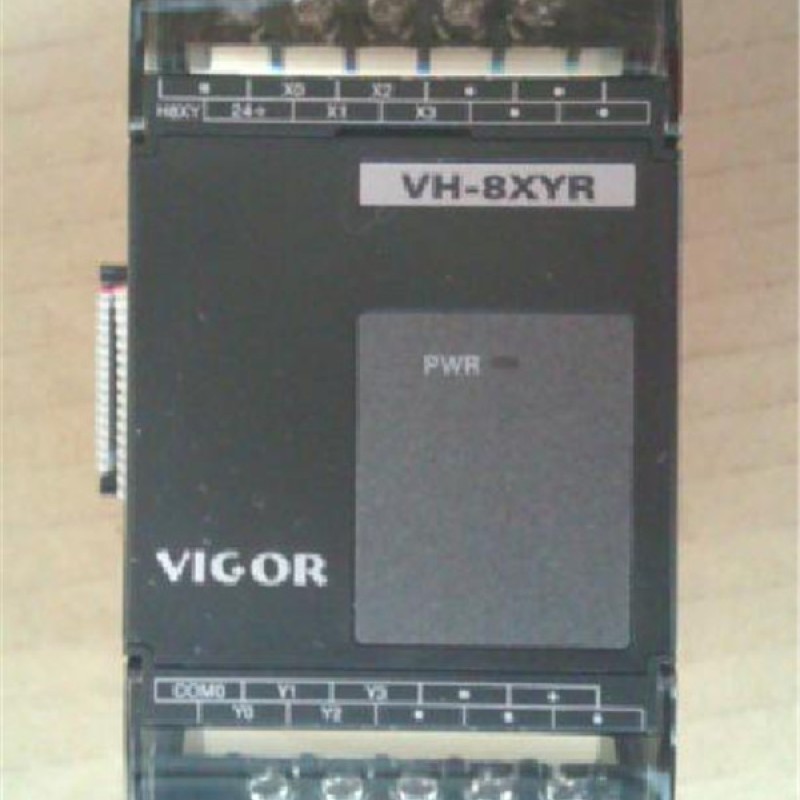

PLC 24VDC 4 DI 4 DO relay VIGOR VH-8XYR Module New

Item

Specifications

Operation Control Method

Cyclic Operation by Stored Program

Programming Language

Electric Ladder Diagram + SFC

1/0 Control Method

Batch Processing

Operation

Processing Time

Basic Instruction

0.375 -12.56J1S

Applied Instruction

Several JlS- Several100 flS

Memory Capacity (Flash ROM)

Program Capacity

Built-in 4 K Steps Flash ROM

Comment Capacity

2730 comments (16 characters or 8 Chinese characters for each comment)

Program Comment Capacity

20,000 characters or 10,000 Chinese characters

Max. Input I Output Points

128 points: XO-X77, YO- Y77

Internal

Relay

Auxiliary Coil

(M)

General

384 points: MO- M383

Latched

128 points: M384- M511

Special

256 points: M9000- M9255

State Coil

(S)

Initial

10 points: SO- S9 (Latched)

Latched

118 points: S10 -S127

Timer

(T)

100mS

63 points: TO- T62 (Timer range: 0.1-3276.7 sec.)

10mS

31 points: T32- T62 (Timer range: 0.01-327.67 sec.), when the coil M9028= "ON"

1 ms

1 points: T63 (Timer range: 0.001 - 32.767 sec.)

Counter

(C)

16-bit U

General

16 points: CO- C15

Latched

16points: C16-C31

High Speed

Counter (C)

32-bit Up/Down

1-phase Counter

11 points: C235 - C245 (Signal Frequency: 10KHz Max.)

2-phase Counter

5 points: C246- C250 (Signal Frequency: 10 KHz Max.)

A/B Phase Counter

4 points: C251 - C254 (Signal Frequency: 5 KHz Max.)

Data Register

(D)

General

128 points: DO- D127

Latched

128 points: D128- D255

Special

256 points: D9000 - D9255

Index

16 points: VO- V7, ZO- Z7

Level

Branch Level (P)

64 points: PO - P63

Interrupt Level (I)

15 points: 6 points for external interrupt, 3 points  for timer interrupt, and 6 points for counter interrupt

Nest Level (N)

8 points: NO- N7

Constants

Decimal

(K)

16 Bits

-32768 - 32767

32 Bits

-2147483648-2147483647

Hexadecimal

(H)

16 Bits

OH- FFFFH

32 Bits

OH- FFFFFFFFH

Pulse Output

1 point; Max. 7 KHz

Programming Device Link Interface CP1

RS-232C, available direct connect to a computer, HMI or MODEM

Communication Link Interface CP2 (Optional)

RS-232C or RS-422 I RS-485, available direct connect to a computer, HMI or MODEM

Communication Link Interface CP3 (Optional)

RS-485, available direct connect to a computer, HMI

Real Time Clock (Optional)

To indicates year, month, day, hour, min., sec. and week

Error Code Display Function

Displays 109 error codes (01-99 and EO-E9)

Analog Potentiometer

2 Analog Potentiometers, each one can be seating as 0255
