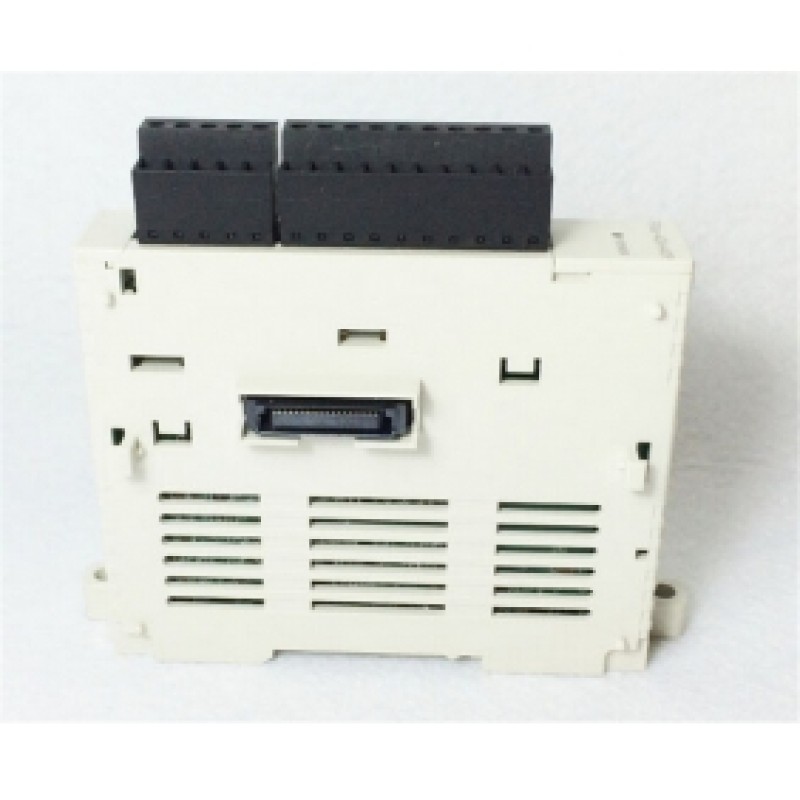

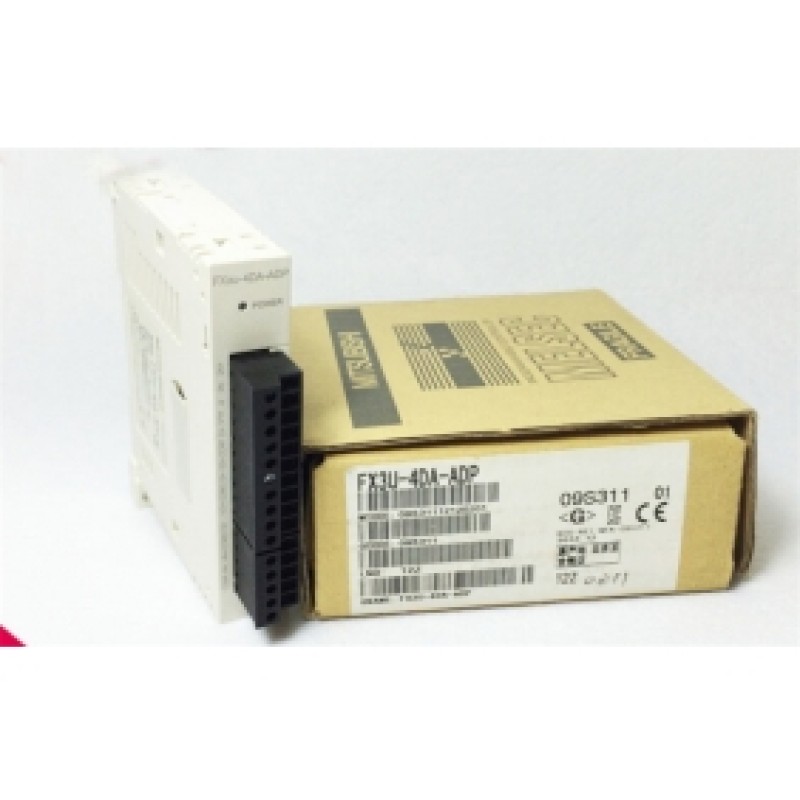

FX3U-4DA-ADP module 4AO Mitsubishi Original Brand NEW

Model name

Applicability

FX3U Series PLC

Ver. 2.20 or later (from first production)

FX3UC Series PLC

Ver. 1.20 or later (from the production manufactured in May,

2004 with SER No. 45****)

FX3G Series PLC

Ver. 1.00 or later (from first production)

FX3GC Series PLC

Ver. 1.40 or later (from first production)

Item

Specification

D/A conversion

circuit driving power

24V DC +20%/-15%, 150mA for 24V DC

Connect a 24V DC power supply to the terminal block.

Interface driving

power

5V DC, 15mA

5V DC power is supplied from the internal power supply of main unit.

Item

Description

Voltage output

Current output

Analog output

range

0 to 10 V DC

(External load: 5k ohm to 1M ohm)

4 to 20mA DC

(External load: 500 ohm or less)

Digital input

12 bits, binary

Total accuracy

+-0.5% (+-50mV) for full

scale of 10 V (when

ambient temperature is

25°C±5 °C)

+-1.0% (±100mV) for full

scale of 10 V (when

ambient temperature is 0°C to 55°C)

If the external load resistance (Rs) is less than 5kΩ, the

value calculated from the

following formula will be

added: (Addition will be

100mV per %.)

+-0.5% (+-80uA) for full scale of

16mA (when ambient

temperature is 25°C±5°C)

+-1.0% (+-160uA) for full scale of 16mA (when ambient temperature is 0°C to 55 °C)

D/A conversion

time

FX3U/FX3UC Series PLC: 200 us

(The data will be updated at every scan time of the PLC.)

FX3G/FX3GC Series PLC: 250 µs

(The data will be updated at every scan time of the PLC.)

Insulation

method

The photocoupler is adopted to insulate the analog output area from the PLC.

The DC-DC converter is adopted to insulate the power supply line from the analog output area.

Channels are not insulated from each other

Occupied

points

0 point (This number is not related to the maximum number of input/output points of the PLC.)
