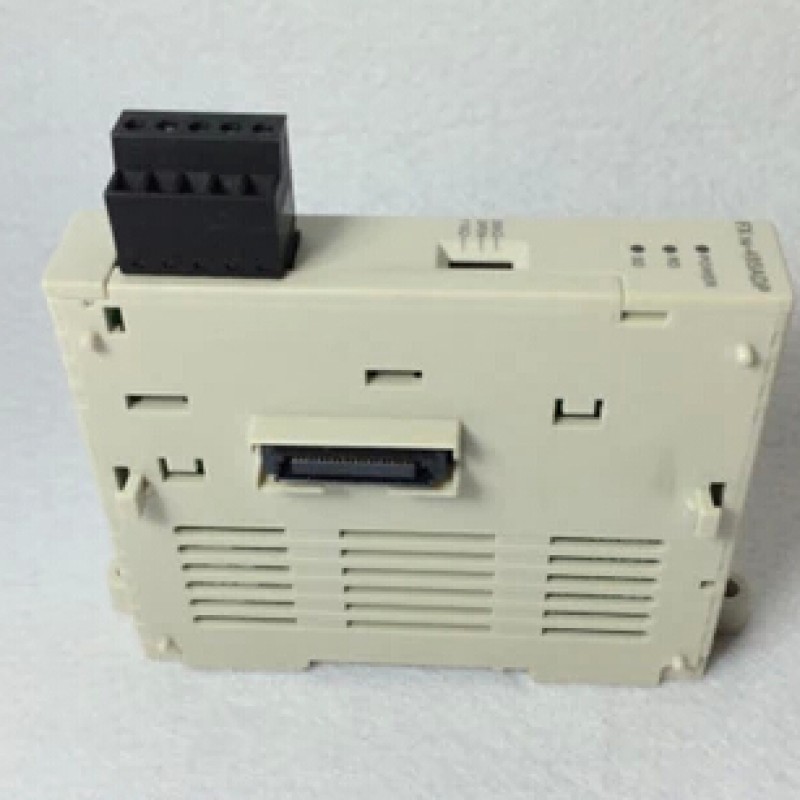

FX3U-232ADP-MB Mitsubishi PLC Communication Special Adapter Original Brand NEW
Introduction
The FX3U-232ADP-MB communication special adapter (hereinafter called 232ADPMB) is a special adapter for RS-232C communication with an 9-pin D-Sub connector. 232ADP-MB is an isolated signal exchange unit of the RS-232C serial data communication between the PLC and RS-232C device. The FX3U-232ADP-MB features all functionality that is available with the FX3U-232ADP, except that it also has MODBUS communication available.
Applicable PLC
Model name | Applicability |
FX3U Series PLC | Ver. 2.40 and later for MODBUS communication Ver. 2.20 and later for all communication functions except MODBUS |
The version number can be checked by monitoring D8001, as well the last three digits indicate the version number.
Power Supply Specification
Item | Specification |
Current consumption | 30mA 5V DC power is supplied internally from the main unit |
Performance Specification
Item | Specification |
Transmission standard | Conforming to RS-232C |
Type of isolation | Photocoupler isolation |
Transmission distance | 15m (49’ 2") or less |
Connection method | 9-pin D-Sub connector (male) |
Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
Communication method | Full-duplex |
Baud rate | Computer link, non-protocol communication, and MODBUS: 300/600/1200/2400/4800/9600/19200 bps Programming communication: 9600/19200/38400/57600/115200bps |
Communication forma | Computer link (dedicated protocol: format 1/format 4), Non-protocol, Programming communication, and MODBUS (RTU, ASCII) |
LED display: LED color | Power: green, RD: red, SD: red |
