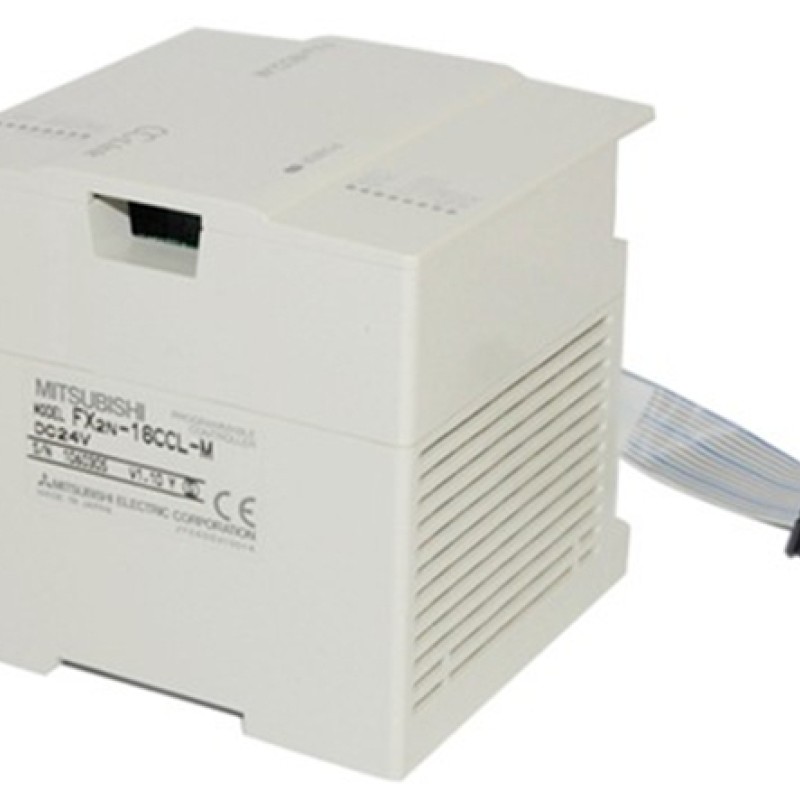

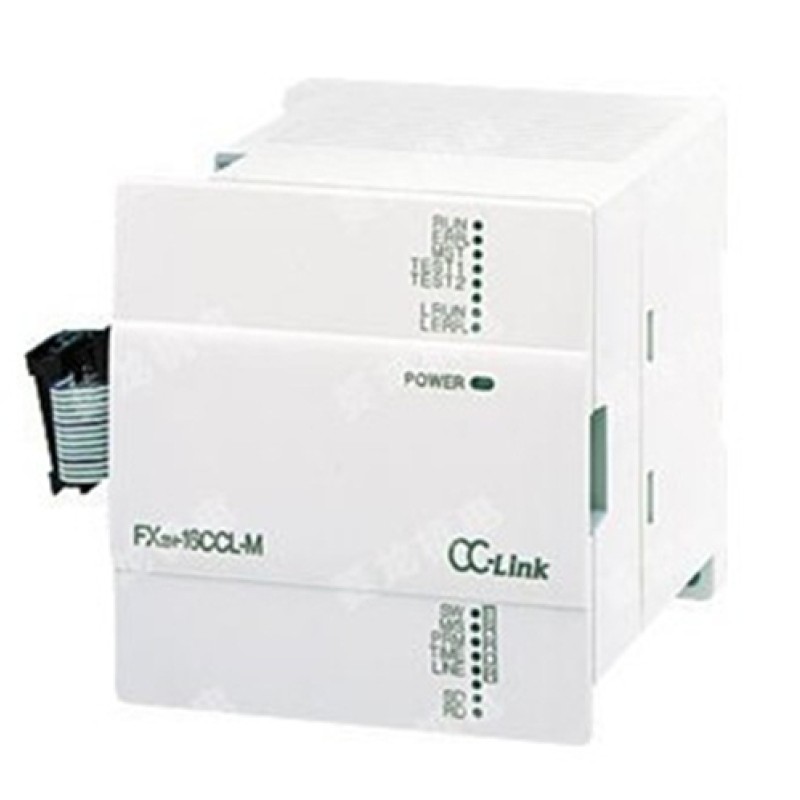

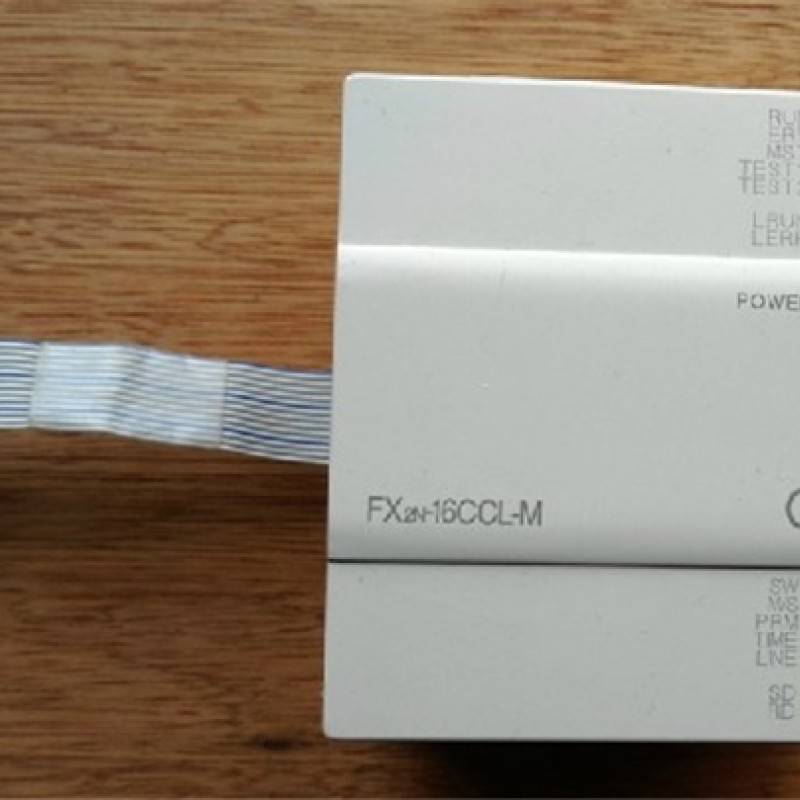

FX2N-16CCL-M Mit PLC CC-Link SYSTEM MASTER BLOCK Module New
The CC-Link master block FX -16CCL-M is a special extension block which assigns an FX2NSeries PLC as the master station of the CC-Link system.
1)Remote I/O stations and remote device stations can be connected to the master station (FXSeries PLC).-32CCL, two or more FX Series PLCs can be
2)By using the CC-Link interface block FX2N connected as remote device stations to configure a simple distributed system.
Power Supply Specifications
ITEM | Specifications |
24V DC external power supply | Supplied from 24V DC (150 mA) external terminal block. |
5V DC internal power supply | 5V DC of PLC is not used. (5V DC is changed from 24V DC external power supply.) |
Performance Specification
Item | Specifications |
Applicable function | Master station function (The local station and standby master station functions are not provided.) |
CC-Link version | Ver.1.10 |
Transmission speed | Selectable (by rotary switch) among 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps and 10 Mbps |
Station number | 0 (set by rotary switch) |
Maximum total cable length (maximum transmission distance) | 1,200 m maximum Varies depending on the transmission speed. (Refer to Subsection 4.4.1.) |
Communication method | Polling method |
Synchronous method | Frame synchronous method |
