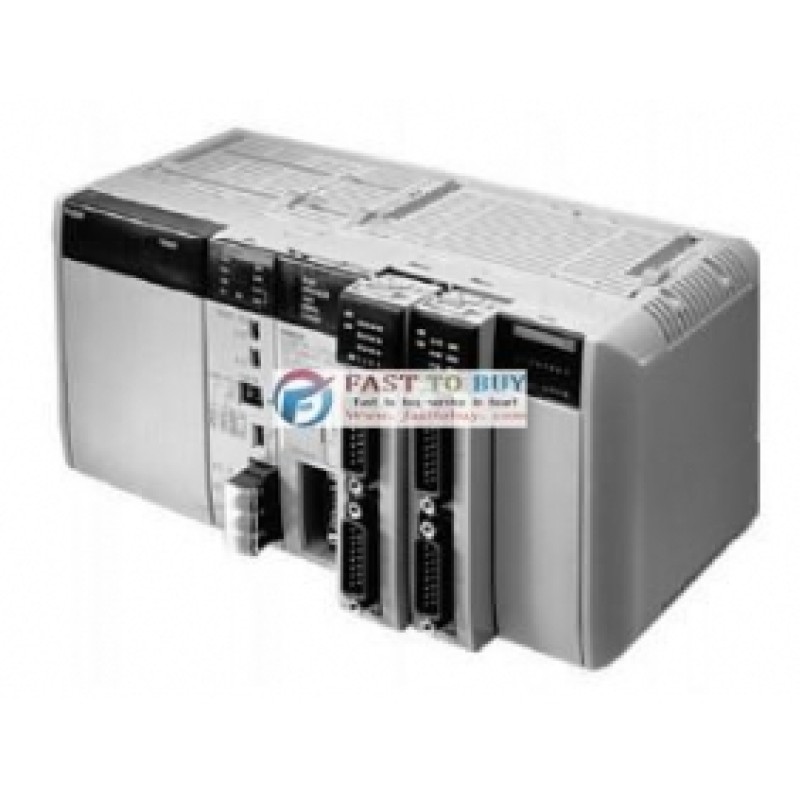

CPU61 PLC CQM1H PLC New in box

Item

CQM1-PA203

CQM1-PA206

CQM1-PA216

CQM1-PD026

Supply voltage

100 to 240 VAC, 50/60 Hz

100 or 230 VAC (select­able), 50/60 Hz

24 VDC

Operating voltage range

85 to 264 VAC

85 to 132 VAC or 170 to 264 VAC

20 to 28 VDC

Operating frequency range

47 to 63 Hz

—

Power consumption

60 VA max.

120 VA max.

50 W max.

Inrush current

30 A max.

Output capacity

5VDC: 3.6A(18W)

5 VDC: 6 A 24 VDC: 0.5 A (30 W total)

5 VDC: 6 A (30 W)

Insulation resistance

20 M? min. at 500 VDC between AC external terminals and GR terminals

Dielectric strength

2,300 VAC 50/60 Hz for 1 min between AC external and GR terminals, leakage current: 10 mA max. 1,000 VAC 50/60 Hz for 1 min between DC external and GR terminals, leakage current: 20 mA max.

Noise immunity

Conforms to IEC61000-4-4, 2 kV (power lines)

Vibration resistance

10 to 57 Hz with an amplitude of 0.075 mm, and 57 to 150 Hz with an acceleration of 9.8 m/s2 in the X,Y,and Z directions for 80 minutes each (i.e., swept for 8 minutes, 10 times).

Shock resistance

147 m/s2 (118 m/s2 for Contact Output Units) 3 times each in X, Y, and Z directions

Ambient temperature

Operating: 0° to 55°C(32° to 131°F) Storage: -20? to 75?(-4° to 167°F), except battery)

Ambient operating humidity

10% to 90% RH (no condensation)

Operating environ­ment

No corrosive gas

Ground

Less than 100 ?

Construction

Panel mounted

Weight

5kgmax.

Internal current consumption

CQM1H-CPU11: 820 mA at 5 VDC CQM1H-CPU21/51/61: 840 mA at 5 VDC

Dimensions (without cables)

CQM1H-CPU11/21: 187 to 571 ¢ 110 ¢ 107 mm (W¢H¢D) CQM1H-CPU51/61: 187 to 603 ¢ 110 ¢ 107 mm (W¢H¢D)

Accessories

RS-232C connector (one XM2A-0901 Plug and one XM2S-0911-E Hood) (except CQM1H-CPU11) CPM2A-BAT01 Battery Set (installed in CPU Unit when shipped)
