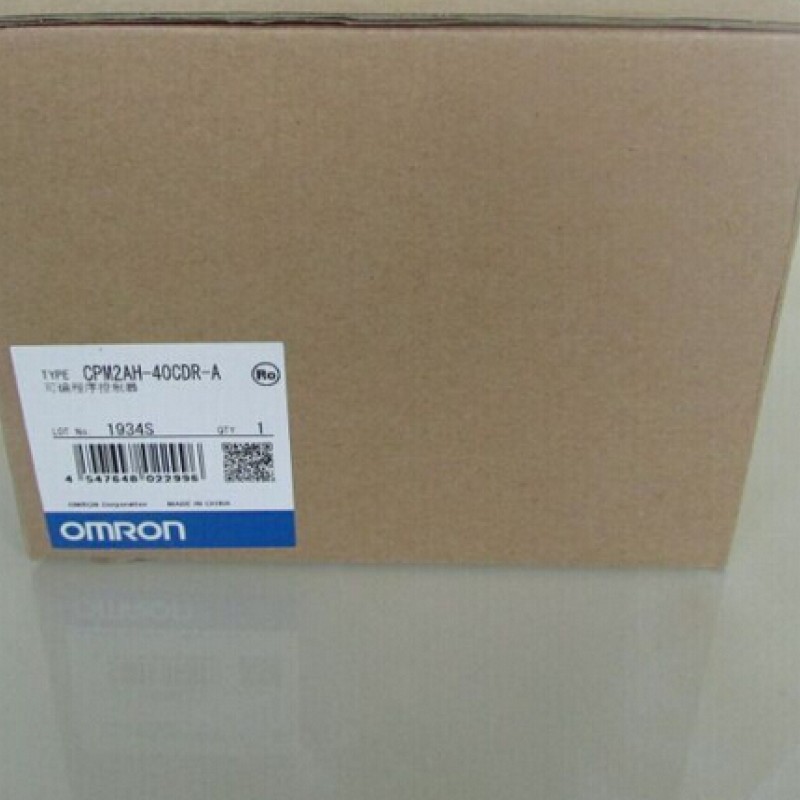

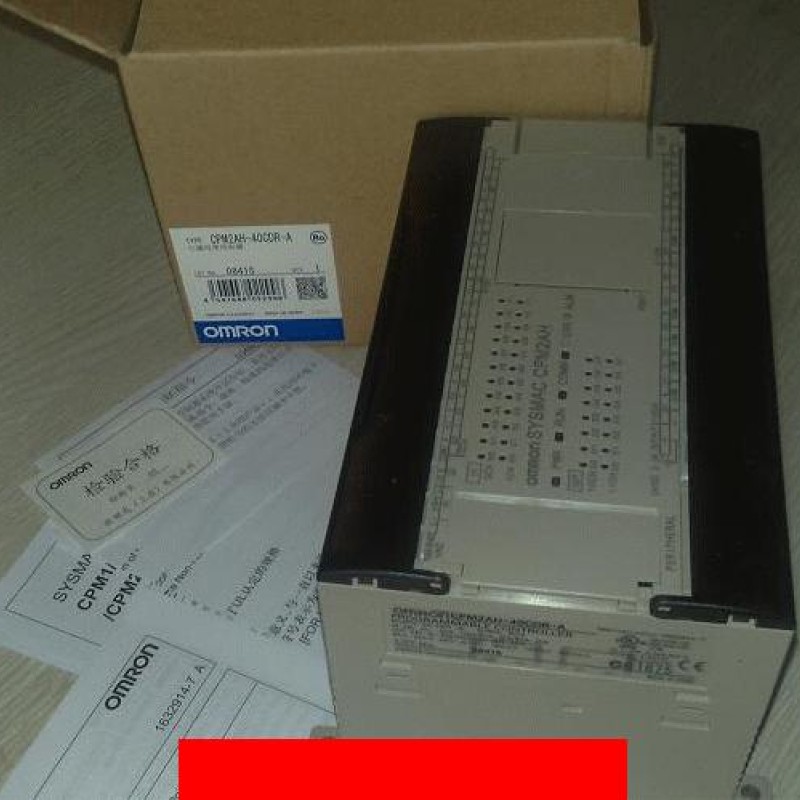

CPM2AH-40CDR-A PLC New in box

Item

CPU Units with 20 I/O points

CPU Units with 30 I/O points

CPU Units with 40 I/O points

CPU Units with 60 I/O points

Supply voltagepp y g

AC power

100 to 240 VAC, 50/60 Hz

DC power

24 VDC

Operating voltagep g g range

AC power

85 to 264 VAC

DC power

20.4 to 26.4 VDC

Power consumptionp

AC power

60 VA max.

DC power

20 W max. (See separate table following this one for details.)

Inrush current

AC power

60 A max.

DC power

20 A max.

External power supply (AC power supplies (AC power supplies only)

Supply voltage

24 VDC

Output capacity

300 mA (See notes 1, 2, 3.)

Insulation resistance

20 M? min. (at 500 VDC) between the external AC terminals and protective earth terminals

Dielectric strength

2,300 VAC 50/60 Hz for 1 min between the external AC and protective earth termi­nals, leakage current: 10 mA max.

Noise immunity

Conforms to IEC61000-4-4, 2 kV (power lines)

Vibration resistance

10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes each (Time coefficient; 8 minutes × coefficient factor 10 = total time 80 minutes)

Shock resistance

147 m/s2 three times each in X, Y, and Z directions

Ambient temperature

Operating: 0° to 55°C Storage: –20° to 75°C

Humidity

10% to 90% (with no condensation)

Atmosphere

Must be free from corrosive gas

Terminal screw size

M3

Power interrupt time

AC power supply: 10 ms min. DC power supply: 2 ms min.

CPU Unit weightg

AC power

650 g max.

700 g max.

800 g max.

1,000 g max.

DC power

550 g max.

600 g max.

700 g max.

900 g max.

Expansion Unit weight

Units with 20 I/O Points: 300 g max. Units with 8 Output Points: 250 g max. Units with 8 Input Points: 200 g max. MAD01 Analog I/O Unit: 150 g max. MAD11 Analog I/O Unit: 250g max. Temperature Sensor Units 250 g max. CompoBus/S I/O Link Units: 200 g max. DeviceNet I/O Link Unit: 200 g max.
