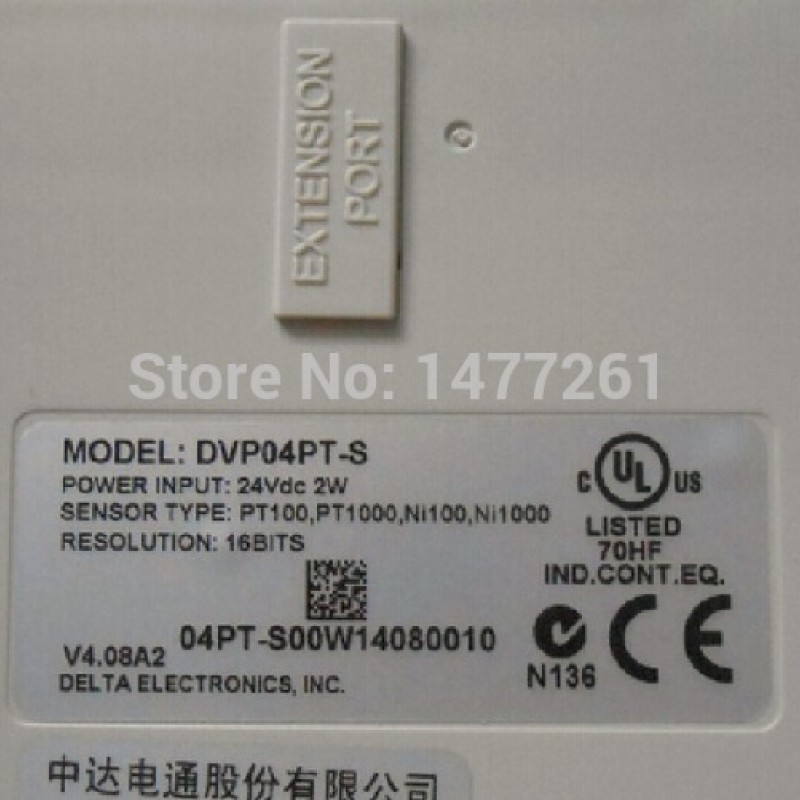

PLC 4 PT100 Module Delta DVP04PT-S Delta New

Power supply voltage

24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)

Max. rated power

consumption

2W, supplied by external power

Operation/storage

Operation: 0°C~55°C (temp.), 5~95% (humidity), pollution degree 2

Storage: -25°C~70°C (temp.), 5~95% (humidity)

Vibration/shock

resistance

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/

IEC61131-2 & IEC 68-2-27 (TEST Ea)

Series connection to

DVP-PLC MPU

The modules are numbered from 0 to 7 automatically by their distance from MPU. No.0 is the closest to MPU and No.7 is the furthest. Maximum 8 modules are allowed to connect to MPU and will not occupy any digital I/O points.

DVP04PT-S

Celsius (°C)

Fahrenheit (°F)

Analog input channel

4 channels per module

Sensors type

2-wire/3-wire PT100/ Ni100/ PT1000/ Ni100 3850 PPM/°C (DIN 43760 JIS C1604-1989)

Current excitation

1.53mA / 204.8uA

Temperature input range

Please refer to the temperature/digital value characteristic curve.

Digital conversion range

Please refer to the temperature/digital value characteristic curve

Resolution

16 bits (0.1°C)

16 bits (0.1°F)

Overall accuracy

+-0.6% of full scale during 0 ~ 55°C (32 ~ 131°F)

Response time

200ms × channels

Isolation method

Isolation between digital and analog circuitry. There is no isolation between channels.

500VDC between digital circuits and Ground

500VDC between analog circuits and Ground

Isolation method

500VDC between analog circuits and digital circuits

500VDC between 24VDC and Ground

Digital data format

2’s complement of 16-bit

Average function

Yes (CR#2 ~ CR#5)

Self diagnostic function

Yes

Communication mode

(RS-485)

Yes (CR#32). RS-485 is disabled when the DVP04PT-S is connected in series with an MPU.
