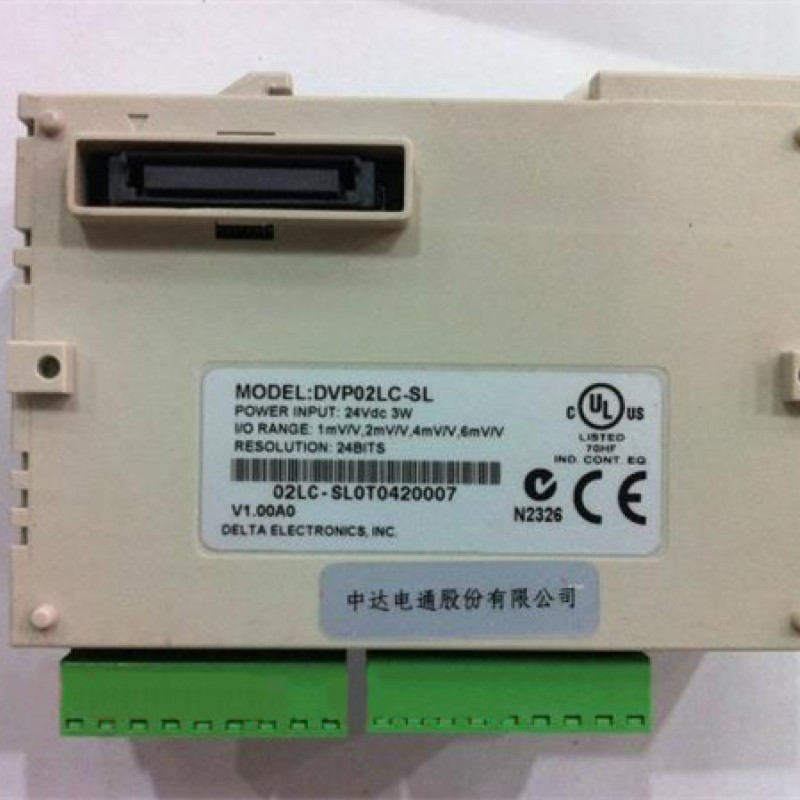

PLC 2 channel weighing module DVP02LC-SL Delta New

Rated power supply voltage/power consumption

24 VDC (-15 to +20%)/3 W

Voltage boundary

18 to 31.2 VDC

Max. current consumption

125 mA

Input signal range

+-40 mVDC

Sensibility

+5 VDC +/-10%

Internal resolution

24 bits

Communication port

RS-232, RS-485

Applicable sensor type

4-wire or 6-wire load cell

Temperature coefficient span

<=+- 50 ppm/K v. E

Temperature coefficient zero

point

<= +- 0.4 uV/K

Linearity error

<= 0.02%

Response time

2, 10, 20, 40, 80 ms × number of channels

4 measuring ranges

0 to 1, 0 to 2, 0 to 4, 0 to 6 mV/V

Max. distance for connecting

to load cell

100m

Max. current output

5 VDC × 300 mA

Permitted load cell

resistance

40 to 4,010 ?

Common mode rejection

(CMRR @50/60 Hz)

>= 100dB

Dynamic value filter

Setting range: K1 to K5

Average value filter

Setting range: K1 to K100

Isolation method

500 VAC between digital circuits and ground

500 VAC between analog circuits and ground

500 VAC between analog circuits and digital circuits

Serial connection to

DVP-PLC MPU

Connectable to the left side of the MPU, numbered from 100 to 107 according to the position of the module from the closest to the farthest to the MPU.

Operation/storage

Operation: 0 to 55°C (temperature),50 to 95% (humidity), pollution

degree 2

Storage: -25 to 70°C (temperature), 5 to 95% (humidity)

Vibration/shock immunity

International standards: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC 68-2-27 (TEST Ea)
