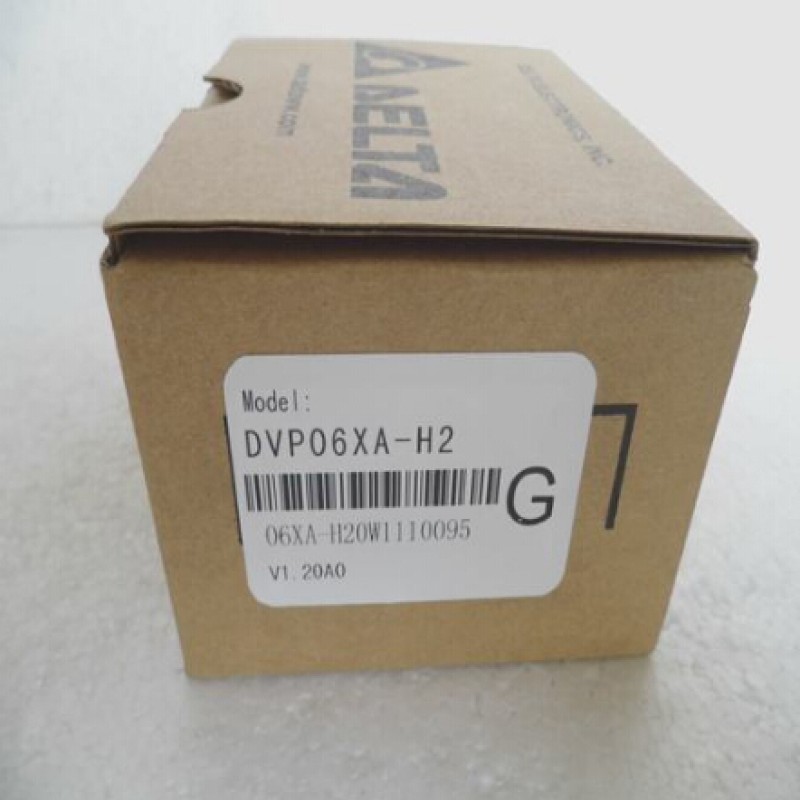

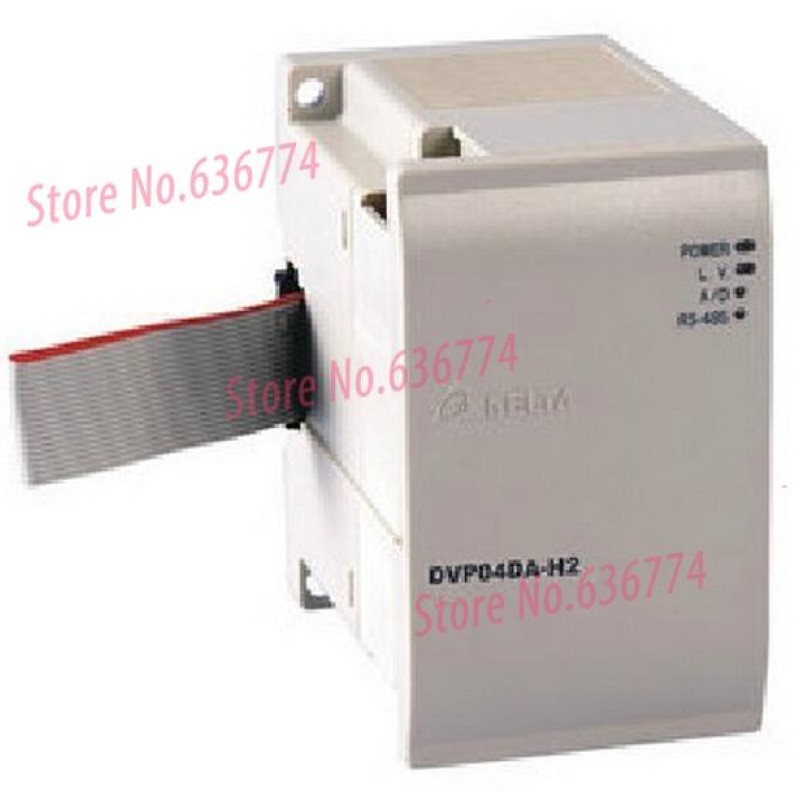

DVP06XA-H2 Delta PLC 4AI 2DO 12-bit resolution Analog Module Original brand new

Analog/Digital (AD)

Voltage input

Current input

Power supply voltage

24V DC (20.4V DC ~ 28.8V DC) (-15% ~ +20%)

Analog input channel

4 channels/module

Range of analog input

+-10V

+-20mA

Range of digital conversion

+-2,000

+-1,000

Resolution

12 bits (1LSB = 5mV)

11 bits (1LSB = 20uA)

Input impedance

200K? or higher

250?

Overall accuracy

+-0.5% when in full scale (25°C, 77°F)

+-1% when in full scale within the range of 0 ~ 55°C, 32 ~ 131°F

Responding time

3ms × the number of channels

Isolation

Between analog and digital channels

Range of absolute input

+-15V

+-32mA

Digital data format

11 significant bits out of 16 bits are available; in 2’s complement

Average function

Yes; available for setting up in CR#2 ~ CR#5; range: K1 ~ K20

Self-diagnosis

Upper and lower bound detection/channel

Digital/Analog (DA)

Voltage output

Current output

Analog output channel

2 channels/module

Range of analog output

0 ~ 10V

0 ~ 20mA

Range of digital data

0 ~ 4,000

0 ~ 4,000

Resolution

12 bits (1LSB = 2.5mV)

12 bits (1LSB = 5uA)

Overall accuracy

+-0.5% when in full scale (25°C, 77°F)

+-1% when in full scale within the range 0 ~ 55°C, 32 ~ 131°F

Output impedance

0.5? or lower

Response time

3ms × the number of channels

Max. output current

20mA (1K? ~ 2M?)

/

Tolerable load impedance

/

0 ~ 500?

Digital data format

11 significant bits out of 16 bits are available; in 2’s complement

Isolation

Internal circuit and analog output terminals are isolated by optical coupler.

No isolation among analog channels.

Protection

The voltage output is protected by short circuit. Please also be aware that being short circuit for too long period of time may cause damage on internal circuit. The current output can be open circuit.

Communication mode

(RS-485)

ASCII/RTU mode. Communication speed: 4,800 ~ 115,200 bps. ASCII data format: 7-bit, even bit, 1 stop bit (7, E, 1). RTU data format: 8-bit, even bit, 1 stop bit (8, E, 1). RS-485 cannot be used when connected to PLC MPU.

When connected to

DVP-PLC MPU in series

The modules are numbered from 0 to 7 automatically by their distance from MPU. No. 0 is the closest to MPU and No. 7 is the furthest. Maximum 8 modules are allowed to connect to MPU and will not occupy any digital I/O points.

Power supply

Max. rated power

consumption

24V DC (20.4V DC ~ 28.8V DC) (-15% ~ +20%)., 3.5W supplied by external power

Environment

Operation/storage

Operation: 0°C ~ 55°C (temperature); 5 ~ 95% (humidity); pollution degree 2

Storage: -25°C ~ 70°C (temperature); 5 ~ 95% (humidity)

Vibration/shock immunity

International standards: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC 68-2-27 (TEST Ea)
