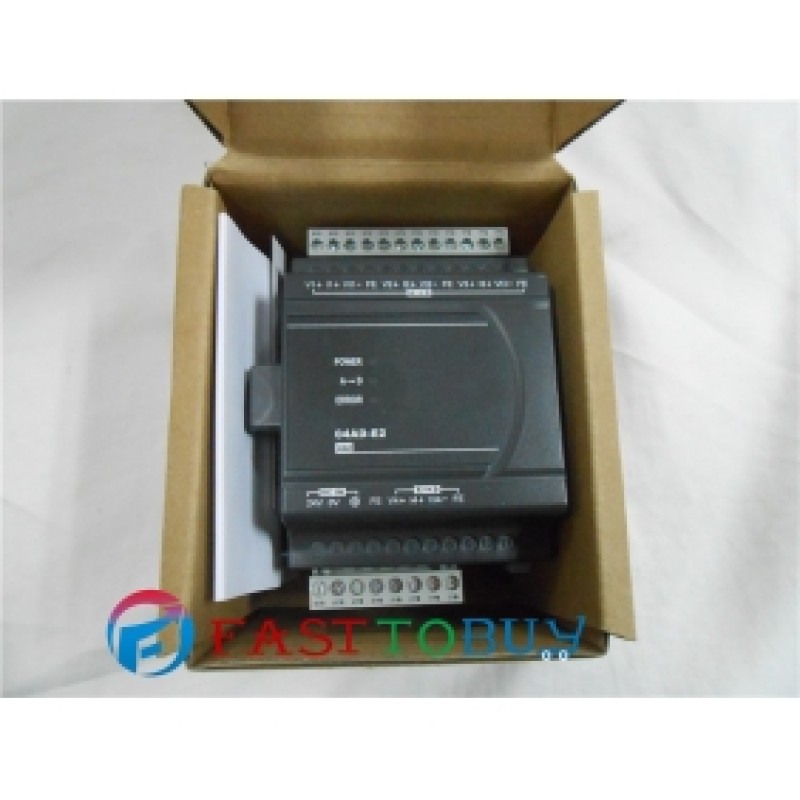

DVP04AD-E2 Delta PLC 4 point 14-bit resolution Analog I/O Module Original brand new

Analog / Digital module (04A/D)

Power supply voltage

24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)

Max. rated power

consumption

1W, supplied by external power source

Connector

European standard removable terminal block (Pin pitch: 5mm)

Operation/storage

temperature

Operation: 0°C~55°C (temp.), 5~95% (humidity), Pollution degree2

Storage: -25°C~70°C (temp.), 5~95% (humidity)

Vibration/shock

immunity

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/

IEC61131-2 & IEC 68-2-27 (TEST Ea)

Series connection to

DVP-PLC MPU

The modules are numbered from 0 to 7 automatically by their distance from MPU. Max. 8 modules are allowed to connect to MPU and will not occupy any digital I/O points.

Analog / Digital module

Voltage input

Current input

Analog input channel

4 channels / each module

Range of analog input

+-10V

+-5V

+-20mA

0 ~ 20mA

4 ~ 20mA

Range of digital

conversion

+-32,000

+-32,000

+-32,000

0 ~ 32,000

0 ~ 32,000

Max./Min. range of

digital data

+-32,384

+-32,384

+-32,384

-384~+32,384

-384~+32,384

Hardware Resolution

14 bits

14 bits

14 bits

13 bits

13 bits

Input impedance

>=1M?

250?

Range of absolute input

+-15V

+-32mA

Overall accuracy

+-0.5% when in full scale (25°C, 77°F)

+-1% when in full scale within the range of 0 ~ 55°C (32 ~ 131°F)

Response time

400us / each channel

Digital data format

2’s complement of 16 bits

Average function

Supported. Available for setting up sampling range in CR#8 ~

CR#11. Range: K1 ~ K100.

Self-diagnosis

Upper and lower bound detection in all channels

Isolation method

Optical coupler isolation between digital circuits and analog circuits.

No isolation among analog channels.

500VDC between digital circuits and Ground

500VDC between analog circuits and Ground

500VDC between analog circuits and digital circuits

500VDC between 24VDC and Ground
