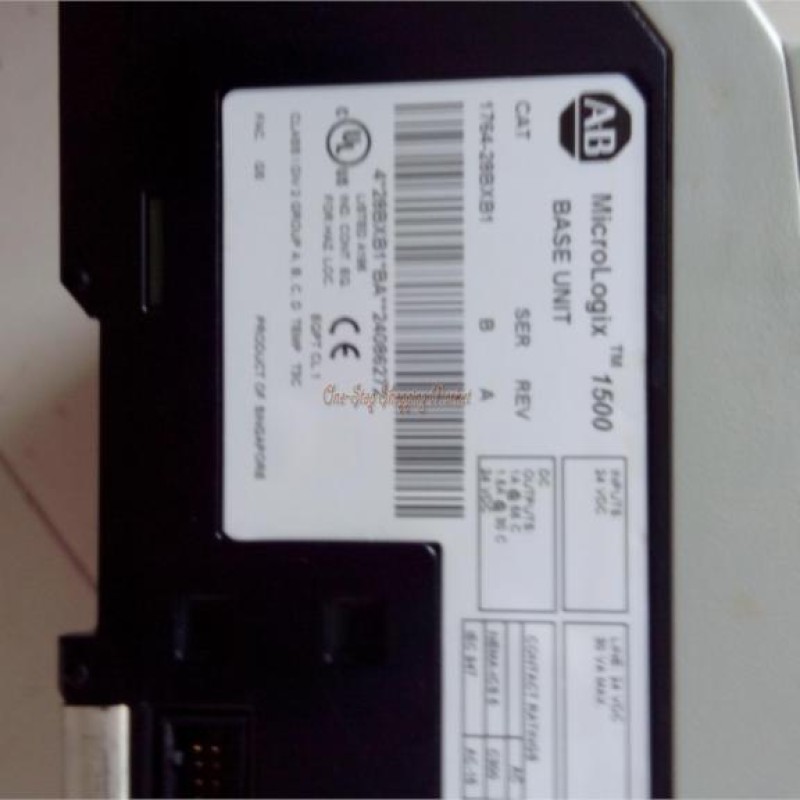

1764-28BXB1 AB Allen-Bradley PLC MicroLogix 1500 Base Unit 1764 Series Original brand new

Nonoperating Temperature

-40…85 °C (-40…185 °F)

Operating Temperature

0…55 °C (32…131 °F)

Operating Humidity

5…95% (without condensation)

Operating Altitude

2,000 m (6,561 ft) max.

Vibration

Operating

10…500 Hz, 5g, 0.030 inch maximum peak-to-peak

Relay Operation

2g

Shock (Without Data Access Tool installed)

Operating

30g panel mounted (15g DIN Rail mounted)

Relay Operation

7.5g panel mounted (5g DIN Rail mounted)

Non-Operating

40g panel mounted (30g DIN Rail mounted)

Shock (With Data Access Tool installed)

Operating

20g panel mounted (15g DIN Rail mounted)

Relay Operation

7.5g panel mounted (5g DIN Rail mounted)

Non-Operating

30g panel mounted (20g DIN Rail mounted)

Weight

0.9 kg (2.0 lb)

Agency Certification

C-UL certified (under CSA C22.2 No. 142)
UL 508 listed
CE compliant for all applicable directives

Hazardous Environment Class

Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213)

Radiated and Conducted Emissions

EN50081-2 Class A

Electrical and EMC:

The module has passed testing at the following levels:

ESD Immunity (IEC1000-4-2)

4 kV contact, 8 kV air, 4 kV indirect

Radiated immunity (IEC1000-4-3)

10V/m, 80…1000 MHz, 80% amplitude modulation, +900 MHz keyed carrier

Fast Transient Burst (IEC1000-4-4)

2 kV, 5 kHz

Surge Immunity (IEC1000-4-5)

2 kV common mode, 1 kV differential mode

Conducted Immunity (IEC1000-4-6)

10V, 0.15…80 MHz?

 Conducted immunity frequency range may be 150 kHz…30 MHz if the radiated immunity frequency range is 30 MHz…1000 MHz.
