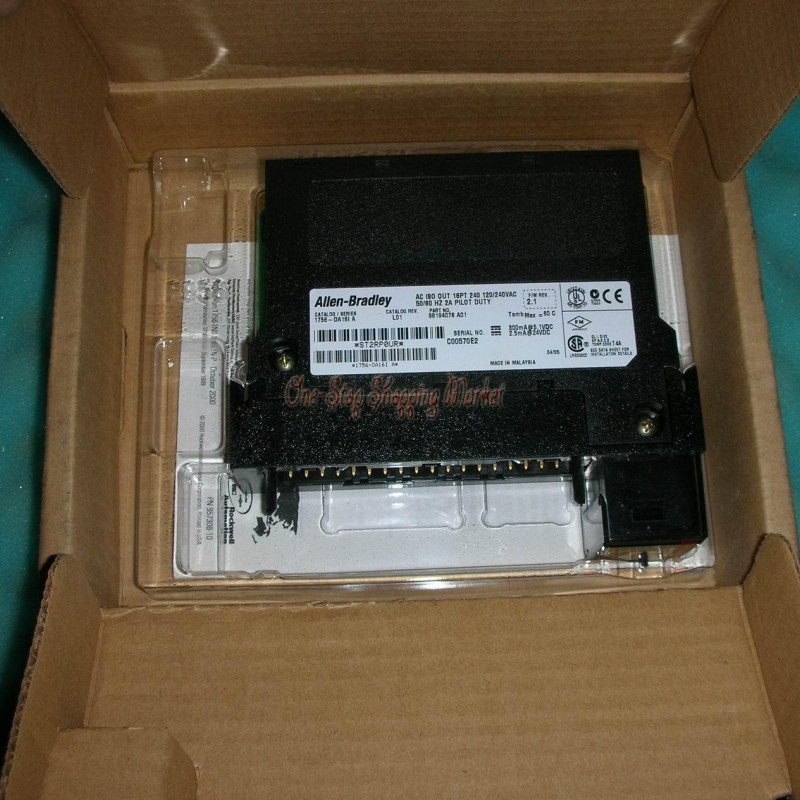

1756-OA16 Allen-Bradley PLC 16 Channel 74-265V AC Output Module(20 Pin) New

Outputs

16 electronically fused ((8 points/group)

Pilot duty

0.5 A

Voltage category

120/240V DC sink

Output delay time

Off to On

On to Off

9.3 ms @ 60 Hz

11 ms @ 50 Hz

9.3 ms @ 60 Hz

11 ms @ 50 Hz

Operating voltage range

74…265V AC

47…63 Hz

Current draw @ 5.1V

400mA

Current draw @ 24V

2 mA

Total backplane power

2.1 W

Power dissipation, max

6.5 W @ 60 °C (140 ?)

Thermal dissipation

22.17 BTU/hr

Off-state leakage current per point, max

3mA per point

On-state voltage drop, max

1.5V @ 0.5 A

5.7V @ load current < 50 mA

Current per point, max

0.5A @ 60 °C (140 ?)

Current per module, max

4A @ 60 °C (140 ?)

Surge current per point

15 A for 43 ms per Point, repeatable every 2 s @ 60°C (140 ?)

Load current, min

10 mA per point

Scheduled outputs

Synchronization within 16.7 s max, reference to the Coordinated System Time

States in Fault mode per point

Hold last state, On or Off (Off is default)

States in Program mode per point

Hold last state, On or Off (Off is default)

Isolation voltage

250V (continuous), basic insulation type, outputs-to-backplane, and output group-to-group

No isolation between individual group outputs

Routine tested @ 1350V AC for 2 s

Module keying

Electronic, software configurable

Fusing

Mechanically fused/group, 3.15 A @ 250V AC slow blow, 1500 A interruption current,

Littelfuse p/n H2153.15

Removable terminal block

1756-TBNH

1756-TBSH

RTB keying

User-defined mechanical

Slot width

1

Wire category

1

North American temperature code

T4

Enclosure type

None (open-style)
