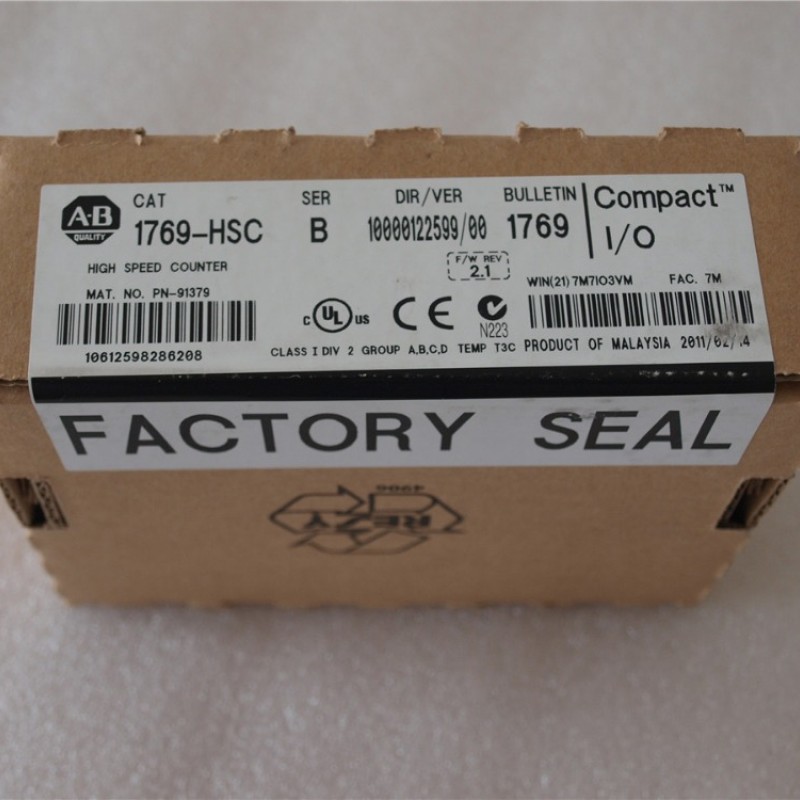

1769-HSC AB Allen-Bradley PLC Specialty I/O Module 1769 Series Original brand new

Cat. No.

Description

Backplane Current

Power Supply Distance Rating*

1769-ARM

Use a 1769-ARM address reserve module to reserve module slots. After creating an I/O configuration and user program, you can remove and replace any I/O module in the system with a 1769-ARM module once you inhibit the removed module in RSLogix 5000 programming software.

60 mA at 5.1V

8 modules

1769-ASCII

The 1769-ASCII module, a general purpose two-channel ASCII interface, provides a flexible network interface to a wide variety of RS-232, RS-485, and RS-422 ASCII devices. The module provides the communication connections to the ASCII device.

425 mA at 5.1V

4 modules

1769-BOOLEAN

Use the 1769-BOOLEAN module in applications that require repeatability, such as material handling and packaging, when there is a requirement to activate an output based on an input’s transition. If the Boolean expression is true, the output is directed to the ON state. If the Boolean expression is false, the output channel is directed to the OFF state. There are four operators that you can configure as OR, AND, XOR, or none.

220 mA at 5.1V

8 modules

1769-HSC

Use the 1769-HSC when you need:
• a counter module that is capable of reacting to high-speed input signals.
• to generate rate and time-between-pulses (pulse interval) data.
• as many as two channels of quadrature or four channels of pulse/count inputs.

245 mA at 5.1V

4

1769-SM1

The Compact I/O to DPI/SCANport module connects to PowerFlex 7-class drives, other DPI-based host devices, and SCANport-based host devices such as 1305 and 1336 PLUS II drives.

280 mA at 5.1V

6 modules

1769-SM2

The Compact I/O to DSI/Modbus module connects to PowerFlex 4-class drives and to other Modbus RTU slave devices, such as PowerFlex 7-class drives with 20-COMM-H RS485 HVAC adapters.

350 mA at 5.1V

4 modules

*The module may not be more than this number of modules away from the power supply or controller. When using 1769 I/O in the local rack with a 1768 controller, the distance rating is from the controller rather than the power supply.
