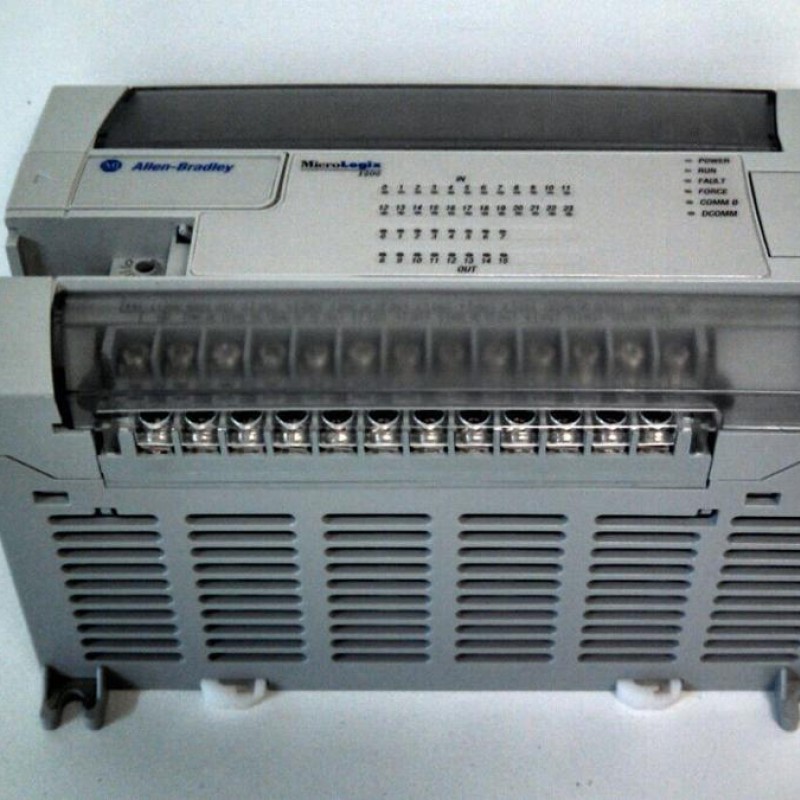

1762-L40BWA AB Allen-Bradley PLC 24 VDC 24 Input Points 16 Outputs 1762 Series Original brand new

1762-L40BWA AB PLC 24 VDC 24 Input Points 16 Outputs 1762 Series Original brand new

Benefits

Small Footprint—The MicroLogix 1200 controller is designed to optimize panel space. Integrated packages just 90mm (3.54 in) high (110mm high including mounting tabs) and 110 or 160mm (4.33 or 6.30 in) wide include processor, embedded inputs and outputs, and power supply. Expansion I/O modules add only 40mm (1.57 in) each in width.Flexibility—A range of I/O and communication options let you configure a MicroLogix 1200 controller for a variety of applications: 24 or 40 built-in I/O. The inputs are either 24V DC (sink or source) or 120V AC. Outputs are relay contact or FET.Add up to 96 I/O in up to 6 digital and/or analog I/O modules (within the limits of power supply capacity, for a total of 136 I/O maximum).Wide range of communication options: DF1 full- or half-duplex, DF1 Radio Modem, Modbus RTU slave and RTU master. Communication interface modules support DH-485, DeviceNet, and EtherNet/IP.MicroLogix 1200R controllers also provide a Programming / HMI port with fixed communication parameters to provide an additional means to communicate to the controller.High Functionality—The MicroLogix 1200 / 1762 system provides powerful features that let you tackle tough applications: 20k-Hz high-speed counter.20k-Hz PTO (Pulse Train Output) or PWM (Pulse Width Modulation).6K-word non-volatile memory (4K-word maximum program, 2K-word maximum data).4 interrupt inputs.4 latching inputs.2 built-in trim potentiometers.optional memory, real-time clock, or memory/real-time clock module.powerful instruction set with support for PID and ASCII.uses RSLogix 500 programming software.field-upgradeable flash operating system.Low Price—This compact but powerful control solution will fit well within your budget.

MicroLogix 1200 Controllers
The MicroLogix 1200 controller is available with 24 or 40 built-in I/O. Controllers with 24V DC inputs that also have AC -input power supplies include a built-in power supply for user output power.

Cat. No.	Number of I/O	Input Type	Input Signal Delay	Output Type	Continuous Output Current, Max.	User Output Power
1762-L24BWA 1762-L24BWAR	14 inputs 10 outputs	24V DC sink/source	Selectable: 0.025, 0.075, 0.1,  0.25, 0.5, 1, 2, 4, 8, or 16 ms	Relay Contact	(See relay contact output specs.) • 8 A/common • 30 A total at 150V AC • 20 A total at 240V AC	24V DC at 250 mA, 400mF max.
1762-L40BWA 1762-L40BWAR	24 inputs 16 outputs					24V DC at 400 mA, 400mF max.
1762-L24BXB 1762-L24BXBR	14 inputs 10 outputs			5 Relay  5 FET (24V DC)	(See FET and relay contact output specs.) • 7.5 A/common • 30 A total at 150V AC • 20 A total at 240V AC	—
1762-L40BXB 1762-L40BXBR	24 inputs 16 outputs			8 Relay  8 FET (24V DC)	(See FET and relay contact output specs.) • 8 A/common • 30 A total at 150V AC • 20 A total at 240V AC
1762-L24AWA 1762-L24AWAR	14 inputs 10 outputs	120V AC	On: 2…20 ms	Relay Contact
1762-L40AWA 1762-L40AWAR	24 inputs 16 outputs
