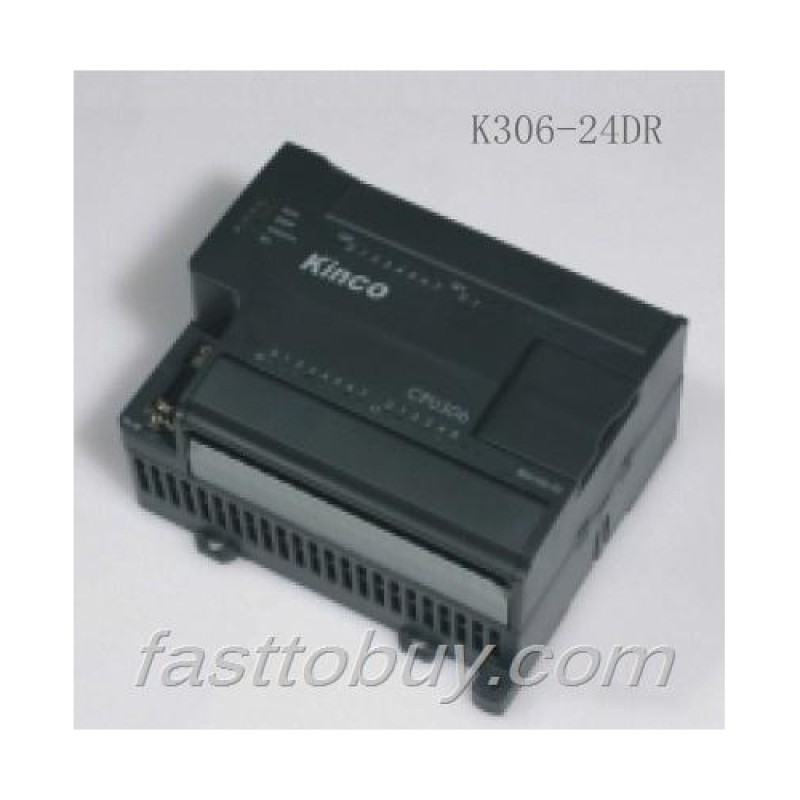

PLC CPU DC24V 14 DI 10 DO relay KINCO K306-24DR New

Model

CPU306

K306-24DT

K306-24AT

K306-24DR

K306-24AR

Technical Specification

CPU

16-Bit Industrial

Execution Speed

Typical Bool Instruction Time: <0.5μS

Word Operation Time: <48μS

Arithmetic Operation Time for Integers: <65μS

Arithmetic Operation Time for Floating Points: <150μS

DI Points

14XDC24V

DO Points

10XDC24V

10XRelay

User Program Memory

FRAM, 8KB/About 1,200 Steps

Program Backup

Permanent Storage, Without the Need of Battery

Memory Area

Variable Storage Area (V Area): 4KB

System Storage Area (SM Area): 300 Bytes

Internal Storage Area (M Area): 32 Bytes

Data Retention Characteristic

Configure with the Programming Software: V Area, C (Counter) Area

Retention Mode and Period

Adopt Super Capacitors and Support a Retention Period of not Less than 144 Hours Upon Power Failure Under Normal Temperature.

Data Backup Characteristic

Perform Backup Operations VB3648~VB3902 According to User Instructions, 255 Bytes in Total

Backup Mode and Time

FRAM, 255 Bytes in Total (Writing Operation for 10 Billion Times), Permanent Backup

Floating Points

Supported; the Whole V Area can be Used for Floating Points

Programming Language Supported

Ladder Drawing (LD), Instruction List (IL)

Instruction Set

Basic Instructions: 55; Expansion Instructions: 252

Password Protection

Yes

Max. I/O

Digital Data: 88 in Total (64 DI and 64 DO Respectively);

Analog Data: 16 in Total (16 AI and 16 AO Respectively)

Counter

128

Operation Mode of Counter

Addition, Subtraction

Counter Range

-32768~32767

Counting Value Retention Function

Yes

Timer

128

1 ms Time Base: 4

10 ms Time Base: 16

100 ms Time Base: 108

High-speed Counter

6 High-Speed Counters

Where, Single-Phase Counters: 6, With a Maximum Frequency of 30 KHz

Where, Dual-Phase Counters: 4, With a Maximum Frequency of 20 KHz

Pulse Output

2, PTO (Pulse Train Output)/PWM (Pulse Width Modulation Output);

Maximum Output Frequency: 20 KHz(Note: the relay output CPU does not have high speed pluse function)

Analog Potentiometer

2, 10-Bit Resolution, Values Corresponding to Internal Registers

Interruption Function

Timing Interruption: 2, 1ms Resolution;

Timer Interruption: T2/T3, 1ms Resolution;

Edge Interruption: 4, Rising Edge or Falling Edge Optional;

High-Speed Interruption, Communication Interruption

Real-time Clock

Yes, With an Error not Greater than 2 Minutes/Month Under a Temperature of 25°C

The user can use the software to set/read: year, month, day, hour, minute, second, week. Standby batteries are used to supply power for the real-time clock upon power failure. Under normal temperature, the accumulative retention period of the real-time clock upon power failure is up to 50,000 hours.

Number of Connectable Expansion Modules

4; regardless of types

COM Port

1, RS232 or RS485;

Supported working modes: Programming, Modbus-RTU (slave), Free protocol

Equipment Connected with COM Port

RS232/RS485: PC (For Programming), Third-Party HMI Panel, Third-Party Serial Communication Equipment (For Example, Instruments, Bar Code Reader, etc.)

Input Power Supply

DC24V+/-20%

AC85~265V

DC24V+/-20%

AC85~265V

Sensor Load Power Supply

DC24V, Max. 500 mA

Dimensions (L*W*H)

125X114X70mm
