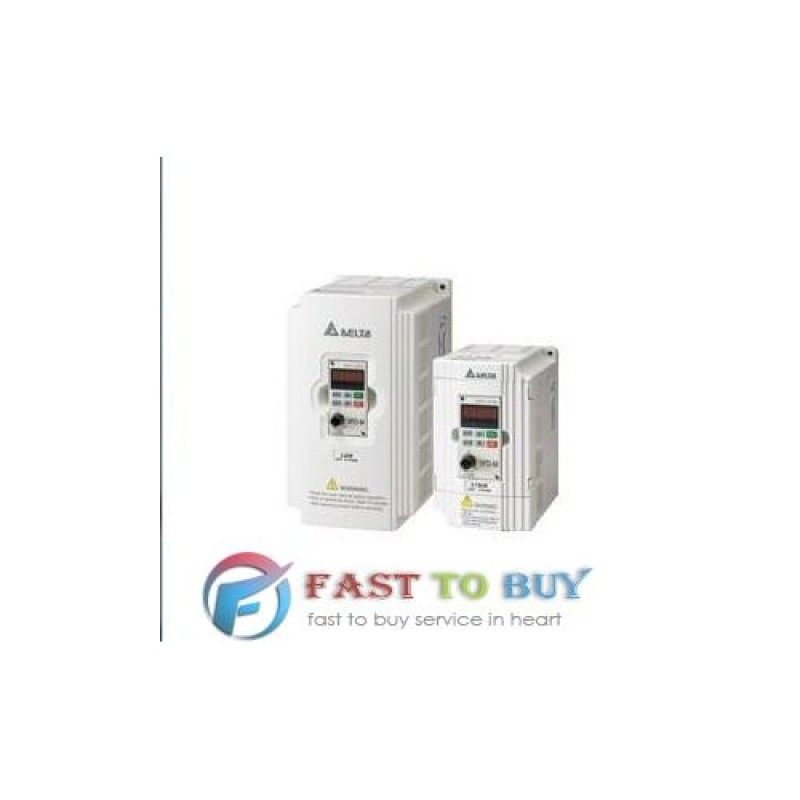

Delta AC Motor Drive Inverter VFD004M21B-D VFD-M-D Series for Elevator Door 0.5HP 1 phase 220V 400W New

Voltage Class

230V Class

Model Number VFD-_ _ M_ _ -D

004

Max. Applicable Motor Output

(kW)

0.4

Max. Applicable Motor Output

(hp)

0.5

Output

Rating

Rated Output Capacity

(kVA)

1.0

Rated Output Current (A)

2.5

Maximum Output Voltage

(V)

3-Phase Proportional to Input Voltage

Output Frequency (Hz)

0.1~400 Hz

Carrier Frequency (kHz)

1-15

Input

Rating

Rated Input Current (A)

Single

6.3

Rated Voltage/Frequency

Single/3-phase

200-240 V, 50/60Hz

Voltage Tolerance

±10%(180~264 V)

Frequency Tolerance

±5%(47~63 Hz)

Cooling Method

Fan Cooled

Weight (kg)

2.2

Control

Characteristics

Control System

SPWM(Sinusoidal Pulse Width Modulation) control (V/f or sensorless vector

control)

Frequency Setting

Resolution

0.01Hz

Output Frequency

Resolution

0.01Hz

Torque Characteristics

Including the auto-torque, auto-slip compensation; starting torque can be 150%

at 1.0Hz

Overload Endurance

150% of rated current for 1 minute

Skip Frequency

Three zones, settings range 0.1-400Hz

Accel/Decel Time

0.1 to 3600 seconds (2 Step settings for Accel/Decel time)

DC Brake

Operation frequency 0.1-400.0Hz, output 0-100% rated current

Start time 0.0-99.9 seconds, stop time 0.0-99.9 seconds

Regenerated Brake Torque

Approx. 20%(up to 125% possible with option brake resistor externally mounted)

V/f Pattern

Adjustable V/f pattern

Enviromental

Conditions

Enclosure Rating

IP20

Pollution Degree

2

Installation Location

Altitude 1,000 m or lower, keep from corrosive gasses, liquid and dust

Ambient Temperature

-10oC to 40oC Non-Condensing and not frozen

Storage/ Transportation

Temperature

-20? to 60?

Ambient Humidity

Below 90% RH (non-condensing)

Vibration

9.80665m/s2 (1G) less than 20Hz, 5.88m/s2 (0.6G) at 20 to 50Hz
