- Stock: In Stock
- Model: ATV303HD11N4
- Weight: 6.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

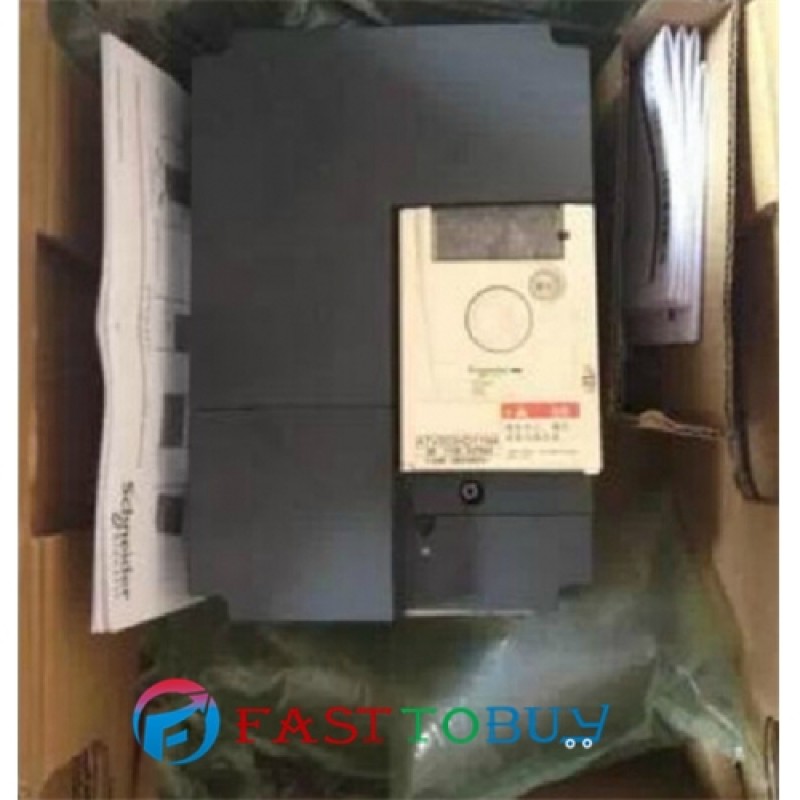

ATV303HD11N4
ATV303 - From 0.37 to 11kW standard drive
Benefits
Design for China, best for China
A drive specially designed for China, the best solution for your application with the most easy way to use
High cost-effiective
Resistant to harsh environments
User-friendly programming and menu
Drive ratings
Three-phase supply voltage: 380V-460V 50/60 Hz
For three Phase Output 380V-460V motors
Motor | Line supply (input) | Drive (output) | Reference | |||||
Power indicated on plate (1) | Max. current line(2) | Apparent power | Power dissipated at nominal current | Nominal current | Max. transient current for | |||
At 380 V | At 460 V | 60s | 2s | |||||
kW
| A | A | kVA | W | A | A | A |
|
0.37 | 2.1 | 1.8 | 1.4 | 19.6 | 1.5 | 2.3 | 3.0 | ATV303H037N4 |
0.75 | 3.5 | 3.1 | 2.5 | 28.8 | 2.3 | 3.5 | 4.6 | ATV303H075N4 |
1.5 | 6.5 | 5.4 | 4.3 | 51.0 | 4.1 | 6.2 | 8.2 | ATV303HU15N4 |
2.2 | 8.8 | 7.2 | 5.7 | 65.5 | 5.5 | 8.3 | 11.0 | ATV303HU22N4 |
3 | 11.1 | 9.2 | 7.3 | 80.2 | 7.1 | 10.7 | 14.2 | ATV303HU30N4 |
4 | 13.7 | 11.4 | 9.1 | 102.7 | 9.5 | 14.3 | 19.0 | ATV303HU40N4 |
5.5 | 21.3 | 14.3 | 11.4 | 141.5 | 12.6 | 18.9 | 25.2 | ATV303HU55N4 |
7.5 | 26.6 | 22.4 | 17.8 | 203.9 | 17 | 25.5 | 34.0 | ATV303HU75N4 |
11 | 36.1 | 30.4 | 24.2 | 294.7 | 24 | 36.0 | 48.0 | ATV303HD11N4 |
(1)These power ratings are for a Switching frequency range of 4 kHz, in continuous operation. The Switching frequency range is adjustable from 2 to 12 kHz.
Above 4 kHz, the drive will reduce the Switching frequency range if an excessive temperature rise occurs. Derating should be applied to the nominal drive current if continuous operation above 4 kHz is required:
10% derating for 8 kHz
20% derating for 12 kHz
(2)Line current network requirements:
* y 4kW, network short circuit current Isc y 5kA
* > 4kW, network short circuit current Isc y 22kA
Applications
Textile machines
Ceramic machines
Wood-working machines
Machine tools
Packaging & printing machines
Material handling, etc
Dimensions and weights
