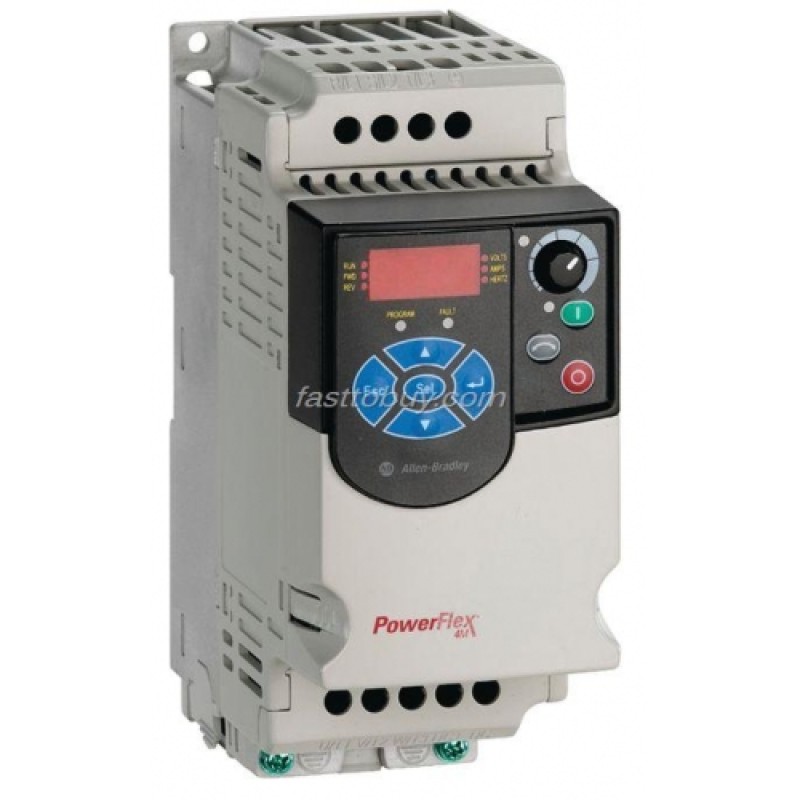

22F-D1P5N103 Rockwell PowerFlex 4M 380V 0.4KW NEW

Environmental Specifications

Category

Specification

Altitude:

1000 m (3300 ft) maximum without derating

Maximum Surrounding Air Temperature without Derating
    IP20:
    IP20 Zero Stacking:

-10…50 °C (14…122 °F)
-10…40 °C (14…104 °F)

Cooling Method
    Convection:



    Fan:

120V, Single-Phase, 0.75 kW (1 HP) and below
240V, Single-Phase, 0.4 kW (0.5 HP) and below
240V, Three-Phase, 0.75 kW (1 HP) and below
480V, Three-Phase, 0.75 kW (1 HP) and below
All other drive ratings.

Storage Temperature:

-40…85 °C (-40…185 °F)

Atmosphere:

Important: Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors or dust. If the drive is not going to be installed for a period of time, it must be stored in an area where it will not be exposed to a corrosive atmosphere.

Relative Humidity:

0 to 95% non-condensing

Shock:

15 g peak for 11 ms duration (±1.0 ms)

Vibration:

1 g peak, 5 to 2000 Hz

Technical Specifications

Category

Specification

Protection

Motor Protection:

I2t overload protection - 150% for 60 seconds, 200% for 3 seconds (provides Class 10 protection)

Overcurrent:

200% hardware limit, 300% instantaneous fault

AC Input Overvoltage Trip
    100…120V:
    200…240V:
    380…460V:

150V AC
290V AC
575V AC

AC Input Undervoltage Trip
    100…120V:
    200…240V:
    380…460V:

75V AC
150V AC
275V AC

Bus Overvoltage Trip
    100…120V:
    200…240V:
    380…460V:

405V DC
405V DC
810V DC

Bus Undervoltage Trip
    100…120V:
    200…240V:
    380…460V:

210V DC
210V DC
390V DC

Logic Control Ride-Thru:

Minimum is 0.5…2 seconds, typical

Faultless Power Ride-Thru:

100 milliseconds

Dynamic Braking:

Internal brake IGBT included with power ratings 5.5 kW (7.5 HP) and 7.5 kW (10.0 HP) for 240V, 3-phase drives and 5.5 kW (7.5 HP), 7.5 kW (10.0 HP) and 11.0 kW (15.0 HP) for 480V, three-phase drives.

Recommended Fuses/Circuit Breakers
    Fuse:
    Circuit Breakers:

UL Class J, RK1, T or Type BS88; 600V (550V) or equivalent.
HMCP or Bulletin 140M or equivalent.

Electrical

Efficiency:

97.5% (Typical)

Voltage Tolerance:

200…240V, 380…480V, 460…600V: ±10%

Input Frequency Tolerance:

48…63 Hz

Input Phases:

Three-phase input provides full rating. Single-phase operation provides 35% rated current.

Displacement Power Factor:

0.98 across entire speed range

Maximum Short Circuit Rating:

100,000 Amps symmetrical

Actual Short Circuit Rating:

Determined by AIC Rating of installed fuse/circuit breaker.

Transistor Type:

Isolated Gate Bipolar (IGBT)

Control

Carrier Frequency:

2…10 kHz. Drive rating based on 4 kHz.

Output Frequency:

0…400 Hz (Programmable)

Frequency Accuracy
    Digital Input:
    Analog Input:

Within ±0.05% of set output frequency.
Within 0.5% of maximum output frequency.

Speed Regulation - Open Loop with Slip Compensation:

±2% of base speed across a 40:1 speed range.

Stop Modes:

Multiple programmable stop modes including; Ramp, Coast, DC Brake, Ramp-to-Hold and S Curve.

Accel/Decel:

Two independently programmable accel and decel times. Each time may be programmed from 0…600 seconds in 0.1 second increments.

Intermittent Overload:

150% Overload capability for up to 1 minute
200% Overload capability for up to 3 seconds

Electronic Motor Overload Protection:

Class 10 protection with speed sensitive response and power-down overload retention function.

Control I/O

Digital Control Inputs
    Current:
    SRC (Source) Mode:
    SNK (Sink) Mode:

6 mA
On = 18…24V, Off = 0…6V
On = 0…6V, Off = 18…24V

Analog Control Inputs
    0…10V DC:
    4…20 mA:
    External Pot:

100k ohm input impedance
250 ohm input impedance
1…10k ohms, 2 Watt minimum

Control Output
    Resistive Rating:
    Inductive Rating:

Programmable Output, Form C Relay
3.0 A at 30V DC, 125 and 240V AC
0.5 A at 30V DC, 125 and 240V AC
