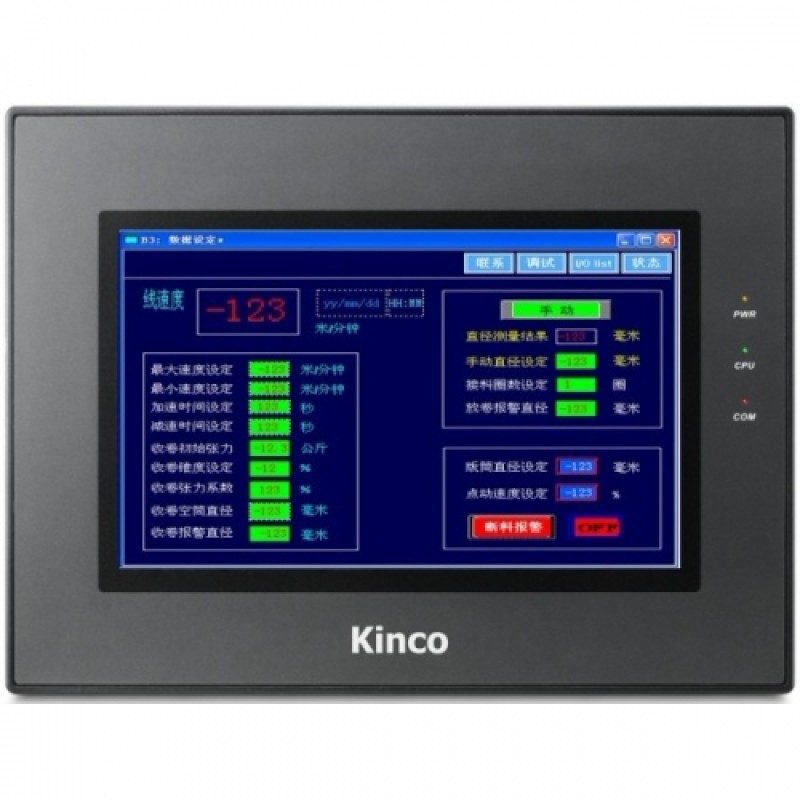

7" HMI 800*480 MT4414TE USB host Ethernet with Free programming Cable&Software New
The MT4414TE is a very powerful HMI product that will make your application soar. This HMI line comes with a 65536 color display mode that gives your touch screen rich color and incomparable resolution. With the application of a powerful 800 MHz 32-bit RISC processor, the MT4000 provides faster processing speeds. Each HMI supports simultaneous communications via its multiple serial ports, so that you may connect to different controllers at the same time. With the simple, convenient and powerful HMIware configuration software, the user can master its design method and create first-class programs efficiently.
Features:
*65536 color TFT display, supports BMP, JPG, GIF, and other format images import;
*high-performance 32-bit 400MHz RISC CPU, fast processing capability to protect the higher work efficiency;
*4.3 "to 12.1" wide range of display size;
*MT4000E configuration 10M/100M adaptive Ethernet interface;
*the integration 1USB the Slave and a DB15/DB25 printer interface;
*a powerful the EV5000 configuration software function to support the C language macro script;
Specifications:
Display: 7” 16:9 TFT
Color: 65536 Colors
Memory: 128M FLASH + 64M SDRAM
Model | MT4414T | MT4414TE | MT4414TE-CAN |
Performance specification | |||
Display | 7" 16:9 TFT | ||
Resolution | 800*480 | ||
Color | 65536 | ||
Backlight | LED | ||
Brightness | 300cd/m2 | ||
Backlight life | 50000 hours | ||
Touch Panel | 4-wire precision resistance network | ||
Processor | 32-bit 400MHz RISC | 32-bit 800MHz RISC | |
Memory | 128M FLASH + 64M SDRAM | ||
U Disk | None | 1 USB host | |
SD Card | None | ||
Recipe memory & RTC | 512KB + RTC | ||
Printer port | Serial port | Serial port/USB port | |
Ethernet | None | Support | |
Program download | USB SLAVE/Serial port | USB SLAVE/Serial port/Ethernet port | |
COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 | ||
Expansion Port | None | CANopen | |
Software | EV5000 V1.6 | ||
Electrical specification | |||
Rated power | 4W | ||
Rated voltage | DC24V | ||
Input range | 12~28VDC | ||
Power down allowed | <3ms | ||
Insulation resistance | Greater than 50MΩ@ 500V DC | ||
Dielectric strength test | 500 VAC 1 minute | ||
Structure specification | |||
Shell color | Black | ||
Shell material | ABS | ||
Dimensions(mm) | 204×150×37mm | ||
Cutout size(mm) | 192×138mm | ||
Weight | 0.75 Kg | ||
Environment specification | |||
Operating temperature | 0~45 °C | ||
Operating humidity | 10~90% non-condensing | ||
Storage temperature | -10~60 °C | ||
Storage humidity | 10~90% non-condensing | ||
Shockproof test | 10~25Hz (X, Y, Z direction, 2G, 30 minutes) | ||
Cooling method | Natural air cooling | ||
Certification | |||
Degree of protection | IP65 (front panel) | ||
CE certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards | ||
FCC compatibility | Complies with FCC Class A | ||
