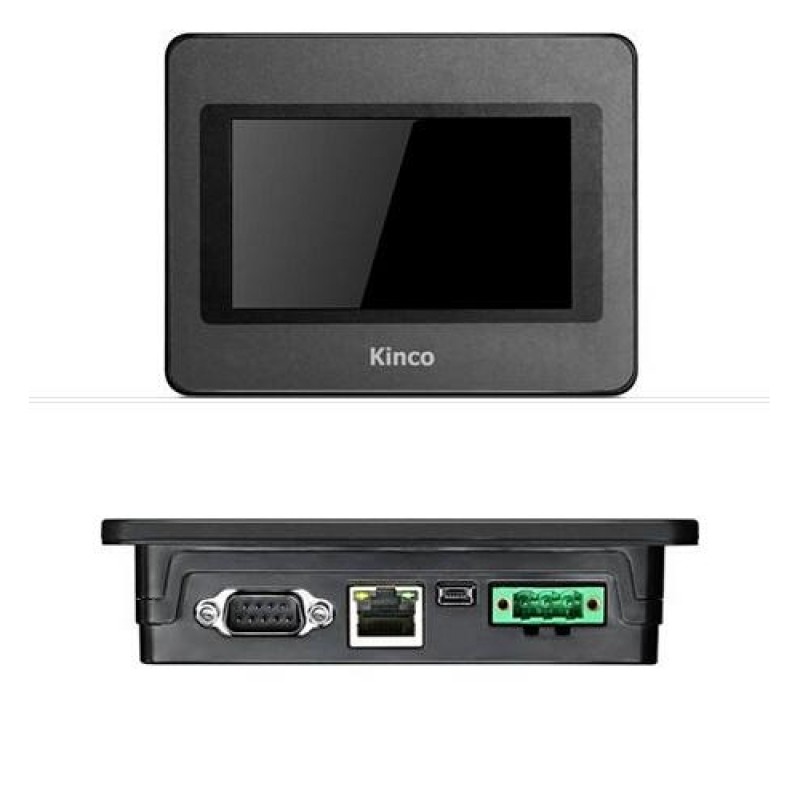

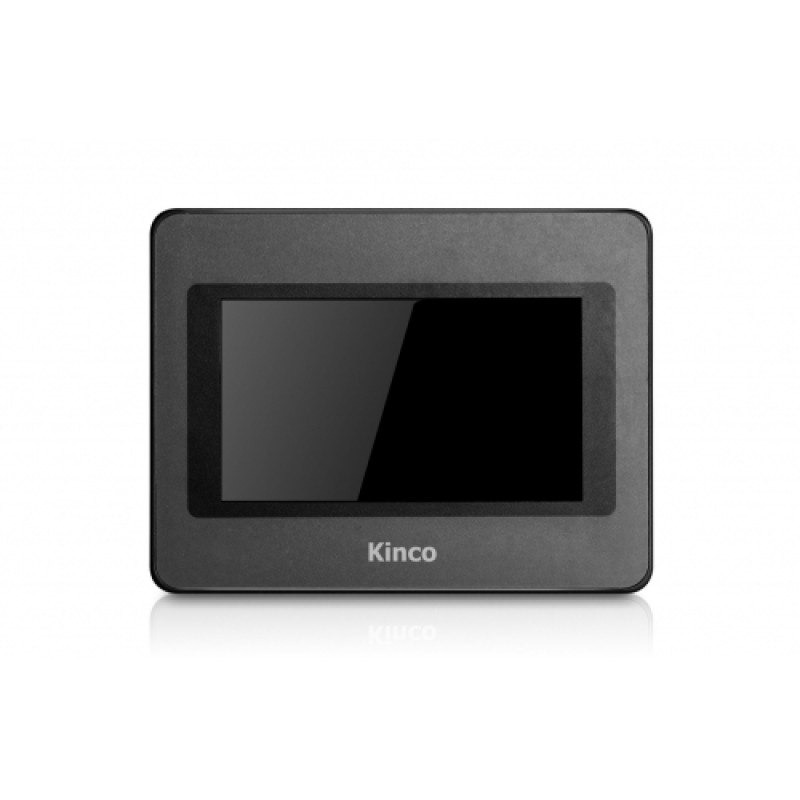

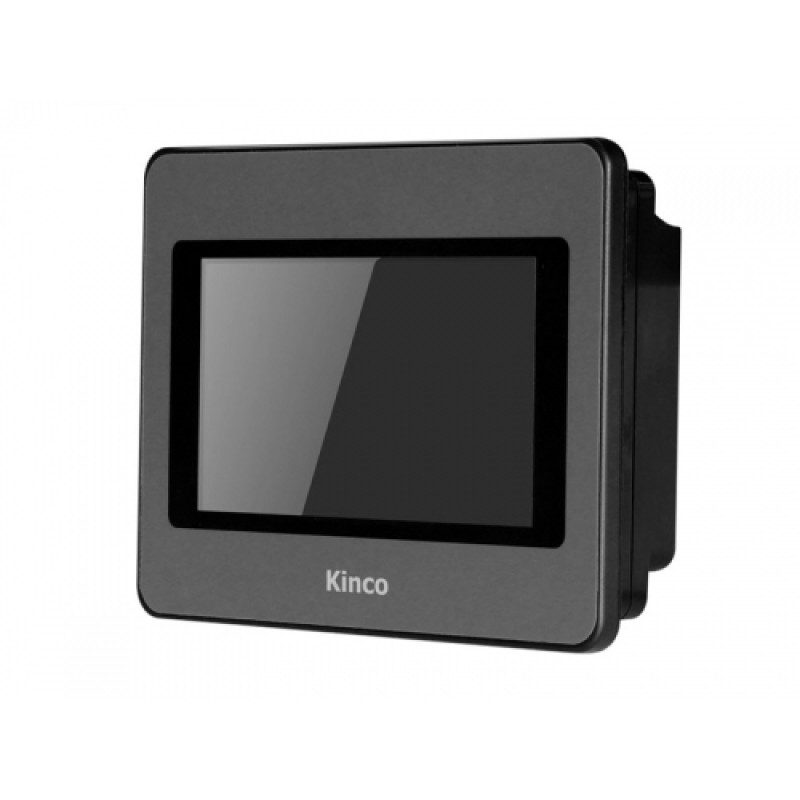

Kinco MT4230TE HMI
Delicate:thin and light body, the thickness of only 33mm, perfectly adapted to the requirement of a small space for installation.Mainstream Performance:streamlining LINUX kernel, high-speed CPU, communications faster, program running more smoothly.Stable and reliable:power isolation design, utmost to eliminate the failure,freezen and extra service cost caused by interference.Powerful software:Kinco HMIware, free configuration software, easy to use, full-featured.
Model | MT4230TE |
|
Performance specification | ||
Display | 4.3" TFT | |
Resolution | 480*272 | |
Color | 65536 | |
Backlight | LED | |
Brightness | 250cd/m2 | |
Backlight life | 50000 hours | |
Touch Panel | 4-wire precision resistance network | |
Processor | 32-bit 400MHz RISC | 32-bit 800MHz RISC |
Memory | 128M FLASH + 64M SDRAM | |
U Disk | None | 1USB host |
SD Card | None | 1 SD card |
Recipe memory & RTC | 512KB + RTC | |
Printer port | Serial port | Serial port/USB port |
Ethernet | None | Support |
Program download | USB SLAVE/Serial port | USB SLAVE/Serial port/Ethernet port |
COM port | COM0:RS232/RS485-2/RS485-4,COM2:RS232 | |
Function Key | None | |
Software | EV5000 V1.6 | |
Electrical specification | ||
Rated power | 3.5W | |
Rated voltage | DC24V | |
Input range | 12~28VDC | |
Power down allowed | <3ms | |
Insulation resistance | Greater than 50MΩ@ 500V DC | |
Dielectric strength test | 500 VAC 1 minute | |
Structure specification | ||
Shell color | Black | |
Shell material | ABS | |
Dimensions(mm) | 132×102×33mm | |
Cutout size(mm) | 119×93mm | |
Weight | 0.21 Kg | |
Environment specification | ||
Operating temperature | 0?50? | |
Operating humidity | 10~90% non-condensing | |
Storage temperature | -10?60? | |
Storage humidity | 10~90% non-condensing | |
Shockproof test | 10~25Hz (X, Y, Z direction, 2G, 30 minutes) | |
Cooling method | Natural air cooling | |
Certification | ||
Degree of protection | IP65 (front panel) | |
CE certification | Comply with EN61000-6-2:2005 and EN61000-6-4:2007standards | |
FCC compatibility | Complies with FCC Class A | |
All Kinco series products use HMI configuration editing software (official version): _Kinco HMI software_V2.2_Build131108 (Automatically install driver)
